Wiegmann B060604SC NEMA 12/13 Wall Mount Enclosure 6 x 6 x 4 in

Product Description

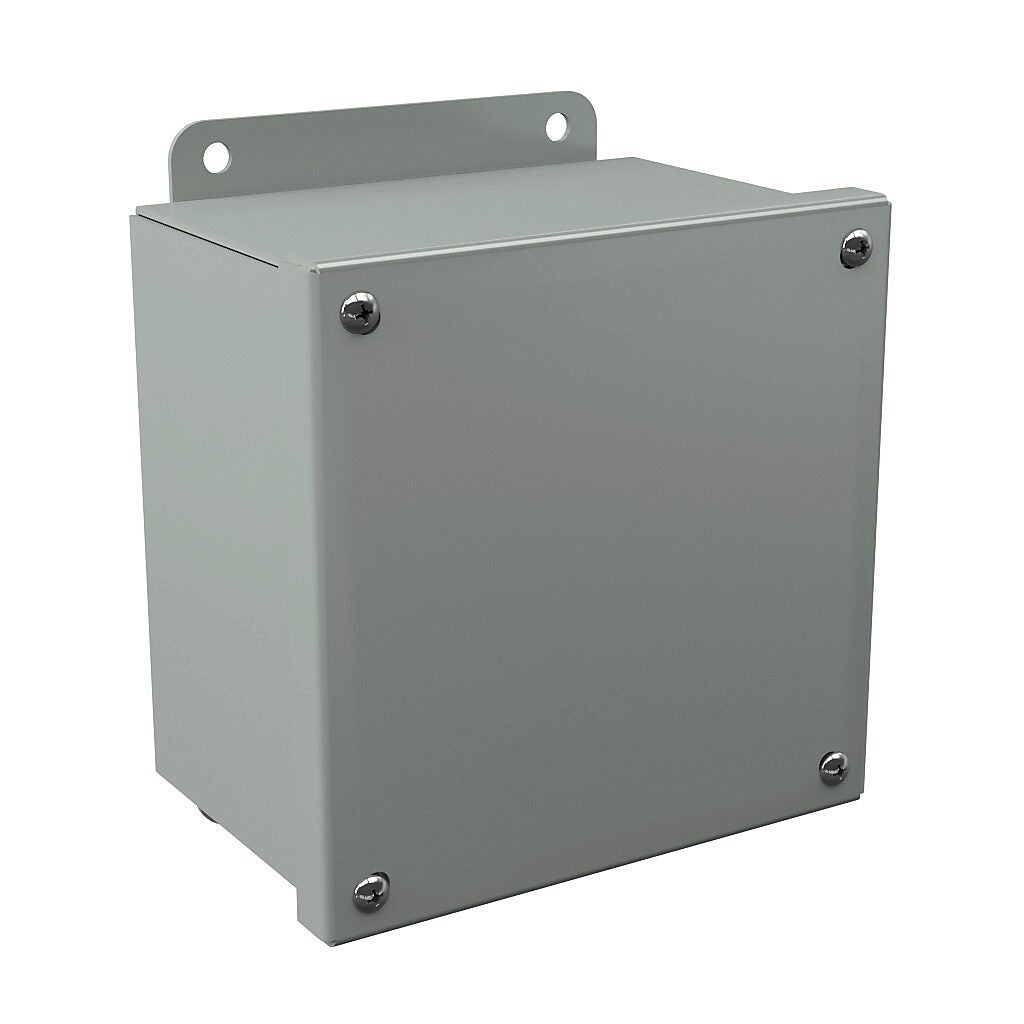

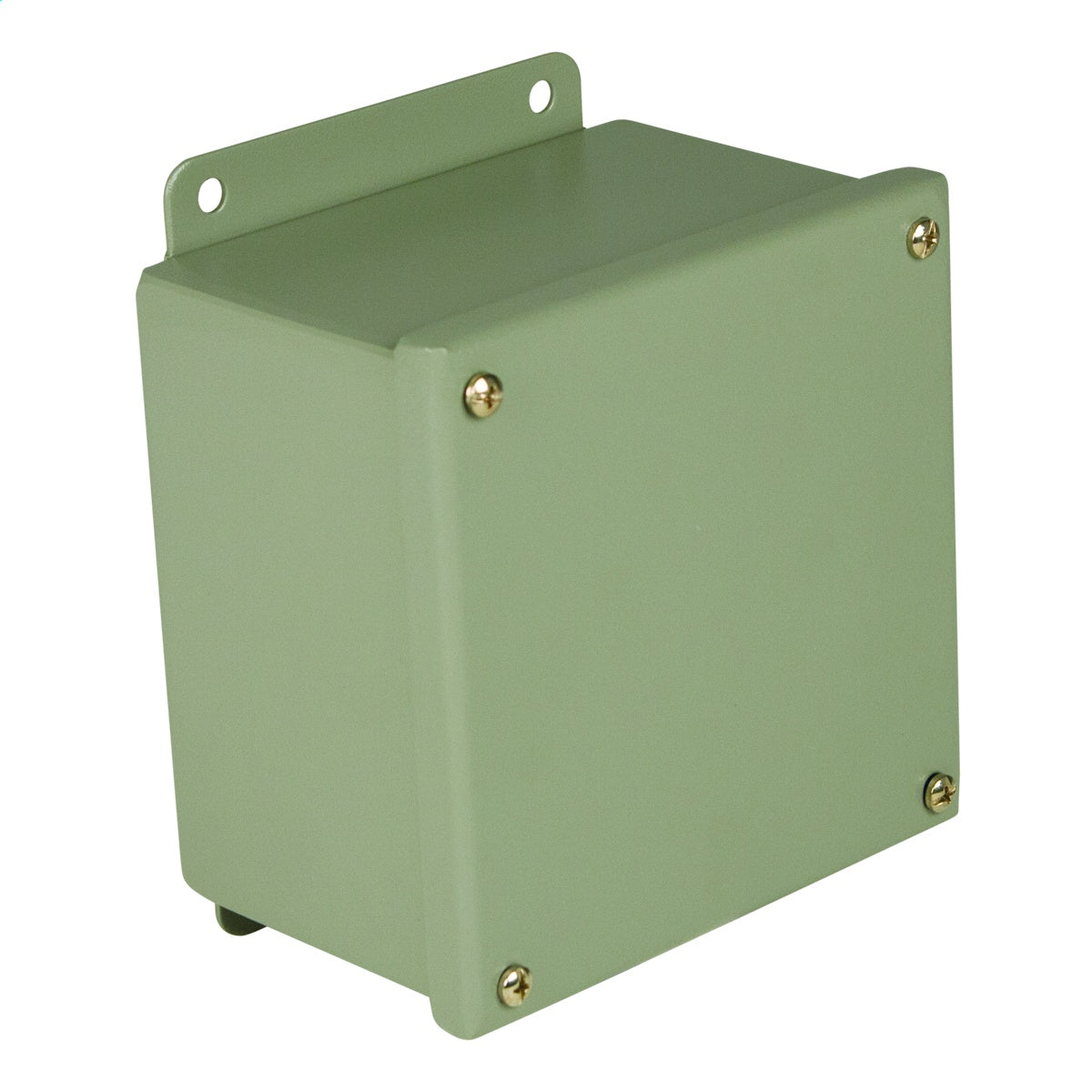

Wiegmann B060604SC is a 6 x 6 x 4 inch carbon steel wall-mount enclosure rated NEMA 12 and 13. The enclosure features 14 gauge continuously welded seams, an ANSI-61 polyester powder coat finish, a screw-on solid cover with captivated cover screws, and a closed-cell oil-resistant neoprene gasket to seal the lid. It includes external mounting plates, an interior panel (6XC20 / 4.88 x 4.88 in), and provides 144 cu-in capacity.

• 14 gauge carbon steel construction with continuously welded seams and ANSI-61 polyester powder coat finish
• Screw-on cover with captivated screws, closed-cell oil-resistant neoprene gasket, and usable opening depth 3.88 in
• Wall mounting with external mounting plates top and bottom, interior panel 6XC20, capacity 144 cu-in

Product Highlights

6 x 6 x 4 in carbon steel NEMA 12/13 wall-mount enclosure; screw cover with neoprene gasket and captivated screws; 144 cu-in capacity; interior panel 6XC20.

Product Information

Standard Information

• Brand: WIEGMANN
• Manufacturer Part Number: B060604SC
• Country of Origin: United States

Technical Specifications

• Brand: Wiegmann
• Manufacturer Part Number: B060604SC
• Series: B-SC
• Type: Enclosure (JIC welded seam)
• Material: Carbon steel
• Metal Gauge: 14 ga
• Finish: ANSI-61 polyester powder coat (inside and out)
• NEMA Rating: 12, 13
• Height: 6 in
• Width: 6 in
• Depth: 4 in
• Dimensions (HxWxD): 6 in x 6 in x 4 in
• Usable Opening Depth: 3.88 in
• Interior Panel: 6XC20
• Internal Panel Size: 4.88 in W x 4.88 in H
• Panel Mounting: 6.75 x 4 in
• Capacity: 144 cu-in
• Cover Type: Screw cover
• Closure Method: Screws
• Cover Features: Captivated cover screws (thread into sealed wells)
• Gasket: Closed-cell oil-resistant neoprene gasket
• Mounting Type: Wall mount; external mounting plates (top and bottom)
• Seams: Continuously welded seams, ground smooth
• Knockouts: No
• Weight: 4.9 lb
• Certifications: cULus, UL, CSA; UL 50; UL 508; UL 508A; CSA File No. LL66078
• Compliance: Buy America(n) Qualified; RoHS indicator
• Country of Origin: United States
