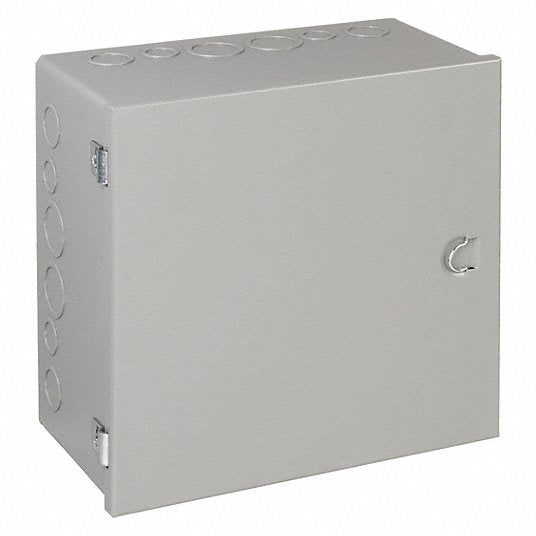

Wiegmann A121206 NEMA 1 12 in H x 12 in W x 6 in D Wall Mount Enclosure

Product Description

The WIEGMANN A121206 NEMA 1 enclosure is designed for use as a surface-mounted junction box, switch box, and cutout box. Constructed from carbon steel with a gray ANSI 61 polyester powder finish, this enclosure features a hinged cover for easy access and mounting holes for wall mounting. It measures 12 in x 12 in x 6 in.

• NEMA Rating 1
• Constructed from carbon steel
• Features a hinged cover with pull handle closure

Product Highlights

This Wiegmann steel enclosure is suitable for indoor use requiring frequent access to interior components.

Product Information

Standard Information

• Brand: WIEGMANN
• Manufacturer Part Number: A121206
• Country of Origin: United States

Technical Specifications

• NEMA Rating: 1
• Material of Enclosure: Carbon Steel
• Cover Type: Hinged Cover
• Solid / Clear Cover: Solid
• Closure Method: Pull Handle
• Finish: ANSI 61 Polyester Powder
• Color: Gray
• Depth: 6 in
• Height: 12 in
• Metal Gauge: 16 ga
• Mounting: Wall
• Standards: CSA Certified; cULus; UL Listed
• Width: 12 in
• Series: A
• Capacity: 864 cu.in
• Features: Mounting Holes
• Knockouts: Yes
• Usable Opening Depth: 5.88 in
• Product Type: Enclosure
• Mounting Type: Embossed Mounting Holes
• Basic Material: Metallic
• Enclosure Cover Type: Hinged
• Enclosure NEMA Rating: 1
• Metallic / Non-Metallic: Metallic
• Nominal Enclosure Width: 12 in
• Enclosure Cover Features: Pull Handle-Friction Catch
• Knockouts / No Knockouts: Knockouts
• Item - Electrical Enclosure: Enclosure
• Application: Designed for use as surface-mounted junction box, service box, switch box, and cutout box.
• Catalog Number: A121206
• Finish Type: Textured
• Listings: UL, CSA
• Actual Height: 12.125 in
• Actual Width: 12.125 in
• Cable Entry: Knock Outs
• Buy America(n) Qualified: Contact Manufacturer
• Certified Listed: cULus
• UL Listed: Yes
• Body Material Thickness: 16 ga
• Cover Closure Type: Hinged
• Cover Material Thickness: 16 ga
• Cover Style: Solid
• Displayed Brand: WIEGMANN
• Enclosure Material: Steel
• Environment: Indoor
• ANSI 61 Powder Coated: ANSI 61 Powder Coated
• Nominal Depth: 6 in
• Nominal Height: 12 in
• Nominal Width: 12 in
• Overall Depth: 6 in
• Overall Height: 12 in
• Overall Width: 12.13 in
• Type: Enclosure
• Manufacturer Name: Hubbell
