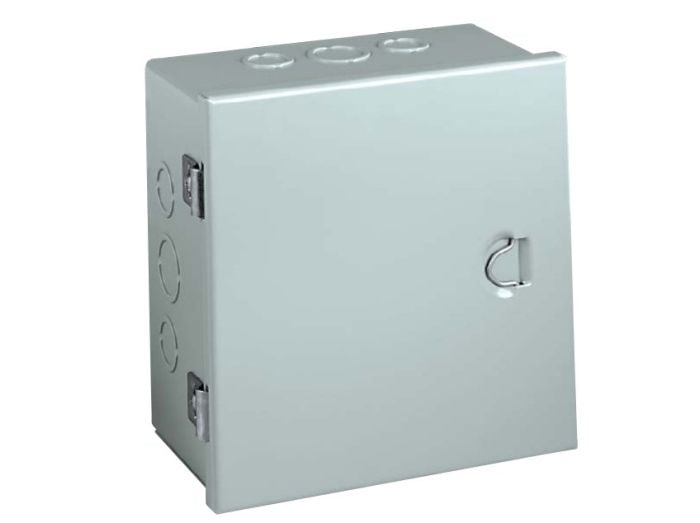

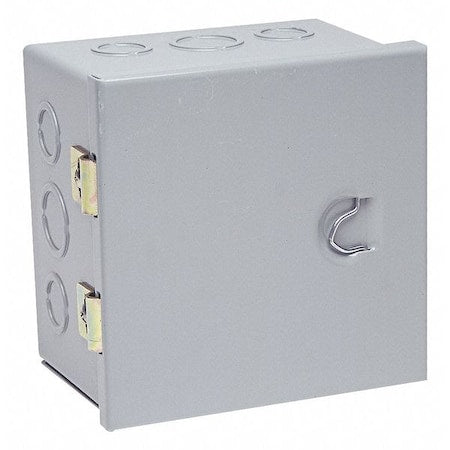

Wiegmann A080804 NEMA 1 Enclosure 8.0 in H x 8.0 in W x 4.0 in D

Product Description

The WIEGMANN A080804 NEMA 1 enclosure is designed for use as a surface-mounted junction box, switch box, and cutout box. Constructed from 16 gauge carbon steel with a gray ANSI 61 polyester powder finish, it provides a protective housing for electrical components. Features include mounting holes for wall mounting and screwdown clamps.

• NEMA Rating 1
• Hinged Enclosure Cover Type
• Mounting Holes

Product Highlights

This carbon steel enclosure features a hinged cover with screwdown clamps and is suitable for wall mounting.

Product Information

Standard Information

• Brand: WIEGMANN
• Manufacturer Part Number: A080804
• Country of Origin: United States

Technical Specifications

• Item: Enclosure
• Type: Enclosure
• Color: Gray
• Depth: 4 in
• Width: 8 in
• Finish: ANSI 61 Polyester Powder
• Height: 8 in
• Series: A
• Features: Mounting Holes
• Material: Steel
• Mounting: Wall
• Knockouts: Yes
• Standards: cULus
• Cover Type: Hinged Cover
• Metal Gauge: 16 ga
• NEMA Rating: NEMA 1
• Product Type: Enclosure
• Mounting Type: Embossed Mounting Holes
• Basic Material: Metallic
• Closure Method: Screwdown Clamps
• Solid / Clear Cover: Solid
• Enclosure Cover Type: Hinged
• Usable Opening Depth: 3.88 in
• Enclosure NEMA Rating: 1
• Material of Enclosure: Carbon Steel
• Metallic / Non-Metallic: Metallic
• Nominal Enclosure Width: 8 in
• Enclosure Cover Features: Clamps
• Knockouts / No Knockouts: Knockouts
• Application: Designed for use as surface-mounted junction box, service box, switch box, and cutout box.
• Catalog Number: A080804
• Construction: Spot and Tack Welded
• EU RoHS Indicator: Yes
• Finish Type: Textured
• Listings: UL, CSA
• UPC: 786725300907
• Cable Entry: Knock Outs
• Buy America(n) Qualified: Contact Manufacturer
• Certified Listed: cULus
• UL Listed: Yes
• Manufacturer Part Number: A080804
• Manufacturer: Wiegmann
• Product Series: A
• Family Series: Wiegmann Enclosures, A Series
• Description: N1 Hinged-Cover 8X8X4 16 Guage Carbon Steel - Gray
• Composition: Metallic
• Number of Doors: 1
• Cover Design: Hinged
• Window/Clear Cover: No
• Panel Included: No
• Nominal Height: 8 "
• Nominal Width: 8 "
• Nominal Depth: 4 "
• Approvals: CSA, UL
