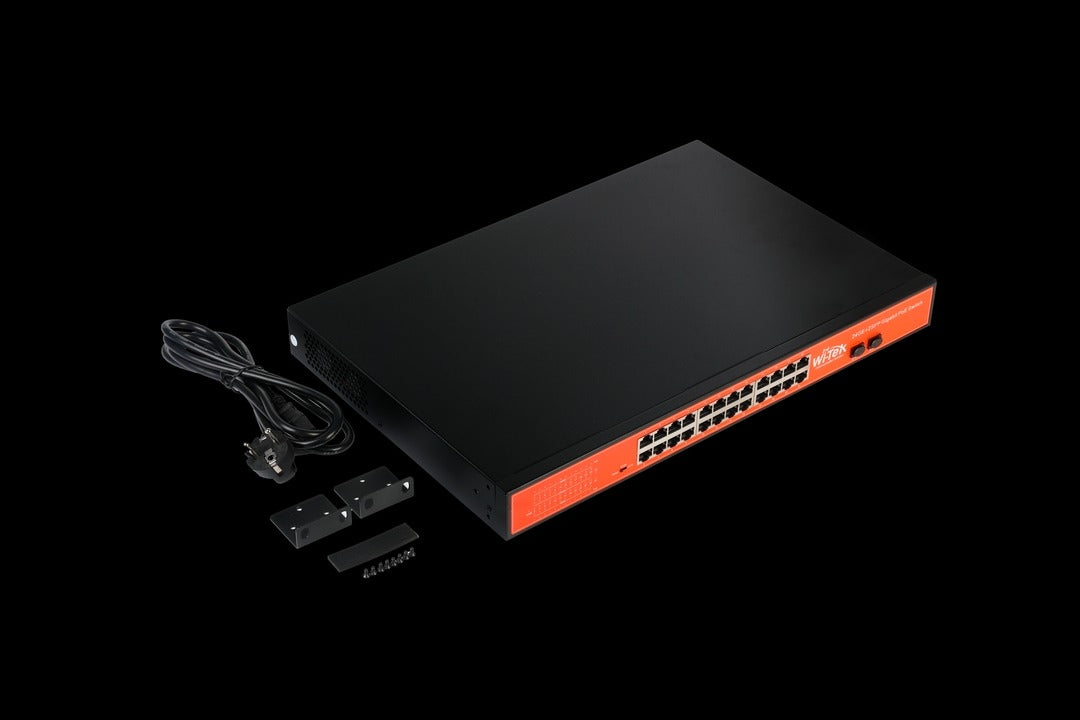

Wi-tek wi-ps326gf 24-port Poe Gigabit Switch 2 Sfp

Product Description

The WI-TEK wi-ps326gf is a 26-port full gigabit managed PoE switch designed for network installers and AV integrators working on commercial and residential IP infrastructure. It provides 24 gigabit PoE ports and 2 SFP uplink ports, drawing from an internal 400-watt power supply. Each PoE port delivers up to 30 watts, supporting IEEE 802.3af and 802.3at compliant powered devices. The 8K MAC address table with auto-learning and auto-aging keeps traffic moving efficiently across large device deployments. LED indicators display link and activity status, PoE status, and connection speed per port.

This switch is suited for installations requiring centralized PoE power distribution to IP cameras, VoIP phones, wireless access points, and similar network-connected devices. The port VLAN isolation mode allows network techs to segment traffic between devices on the same switch without a separate managed layer above it. It fits naturally into structured cabling installations in commercial offices, multi-tenant buildings, and security system deployments where a single unmanaged or lightly managed PoE switch handles an entire zone.

Key Features

• 24 gigabit PoE ports with up to 30W per port output
• IEEE 802.3af and 802.3at PoE standard compliance
• Internal 400W power supply with no external adapter required
• 2 SFP uplink ports for fiber or long-distance backbone connections
• Port VLAN isolation mode for traffic segmentation between connected devices
• 8K entry MAC address table with auto-learning and auto-aging
• Per-port LED indicators for link/activity, PoE status, and 100/1000 Mbps speed

Compatibility

Compatible with IEEE 802.3af and 802.3at compliant powered devices including IP cameras, wireless access points, and VoIP phones. Designed for use as a standalone PoE distribution switch in structured network installations.

Installation Notes

Installation should be performed by a qualified network technician familiar with structured cabling standards and PoE power budgeting. Before servicing or recabling, power down the switch and verify all connected PDs are de-energized. Ensure total connected PoE load does not exceed the 400W internal power budget across all active ports. Mount in a standard equipment rack or suitable enclosure with adequate ventilation to prevent heat buildup.

Technical Specifications

• PoE Ports: 24 gigabit PoE ports
• Uplink Ports: 2 SFP ports
• PoE Standard: IEEE 802.3af and 802.3at
• Max PoE Per Port: 30 watts
• Total PoE Budget: 400 watts
• MAC Address Table: 8K entries with auto-learning and auto-aging
• Connection Speed: 100/1000 Mbps per port

Standard Information

• Brand: WI-TEK
• Manufacturer Part Number: wi-ps326gf
