Wi-Tek WI-PS310GF-O Outdoor Weatherproof PoE Switch

Product Description

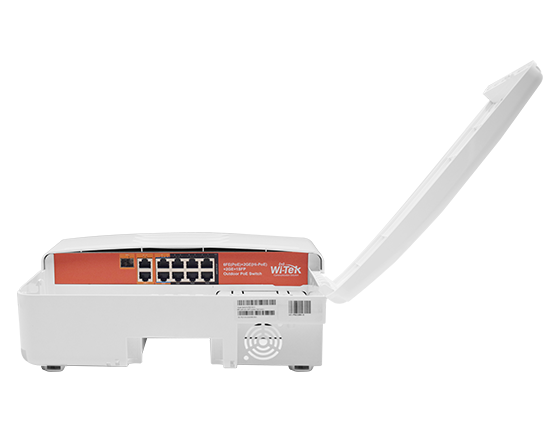

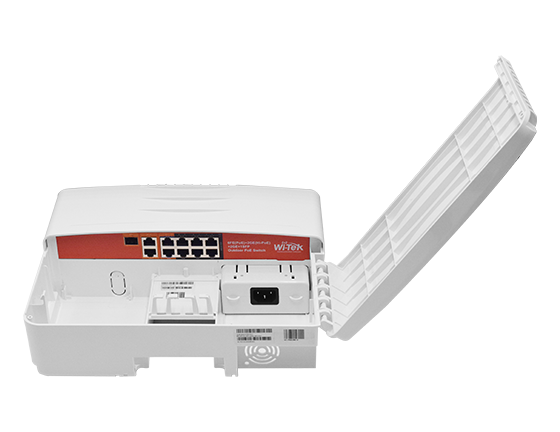

The WI-TEK WI-PS310GF-O is an 11-port switch with 8-port PoE. The IP65 weatherproof enclosure makes it suitable for outdoor CCTV applications. It features 8 PoE ports for connecting PoE IP cameras, which can transmit data and power. This provides a cost-effective outdoor CCTV solution.

• 6GE(PoE)+2GE(Hi-PoE)+2GE+2SFP Outdoor PoE Switch+Watchdog
• IP65 Weatherproof enclosure
• -30 ～70℃ working temperature

Product Highlights

This outdoor PoE switch features an IP65 weatherproof enclosure and supports PoE IEEE802.3 af/at/bt for compliant PDs. It also provides 6kV PoE surge protection and 10kV AC surge protection.

Product Information

Standard Information

• Brand: WI-TEK
• Manufacturer Part Number: WI-PS310GF-O

Technical Specifications

• Hardware Version: V1
• Interface: 8 10/100/1000Mbps RJ45 PoE Ports 2 100/1000Mbps Uplink Ports 2 100/1000Mbps SFP Slots
• PoE Ports: Port 1- 6: 802.3af/at
• PoE Ports: Port 7- 8: 802.3 bt 60W
• Network Media: 10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(≤100m) 100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(≤100m) 1000BASE-TX: 6 Category and above UTP(≤150m)
• Power Supply: AC 110~240V 50/60HZ
• Power Budget: 120W
• Exchange Capacity: 24Gbps
• Packet Forwarding Rate: 17.37Mpps
• Mac Address Table: 8k
• Protection: 6kV PoE Surge Protection 10kV AC Surge Protection
• Jumbo Frame: 10240Bytes
• Advanced Functions: Mac Address Auto-Learning And Auto-Aging Store and forward IEEE 802.3x flow control for Full-duplex Mode Backpressure for Half-duplex Mode
• Certification: CE, FCC, RoHS
• Environment Working Temperature: -30℃ ~70℃(22℉~158℉)
• Storage Temperature: -40℃~70℃ (-40~158℉)
• Operating Humidity: 10~90% RH non-condensing
• Storage Humidity: 5~90% RH non-condensing
