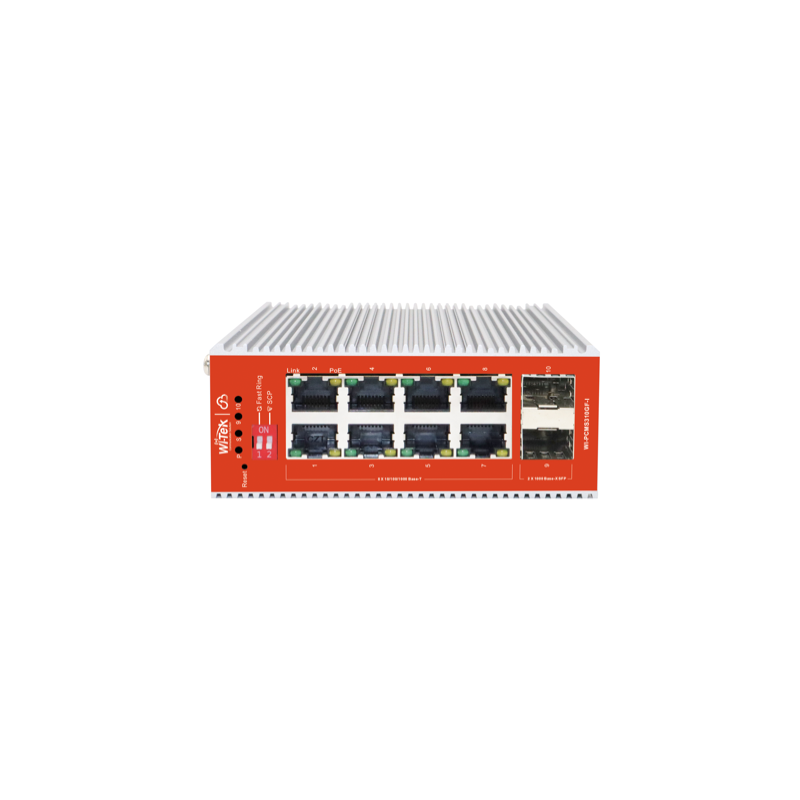

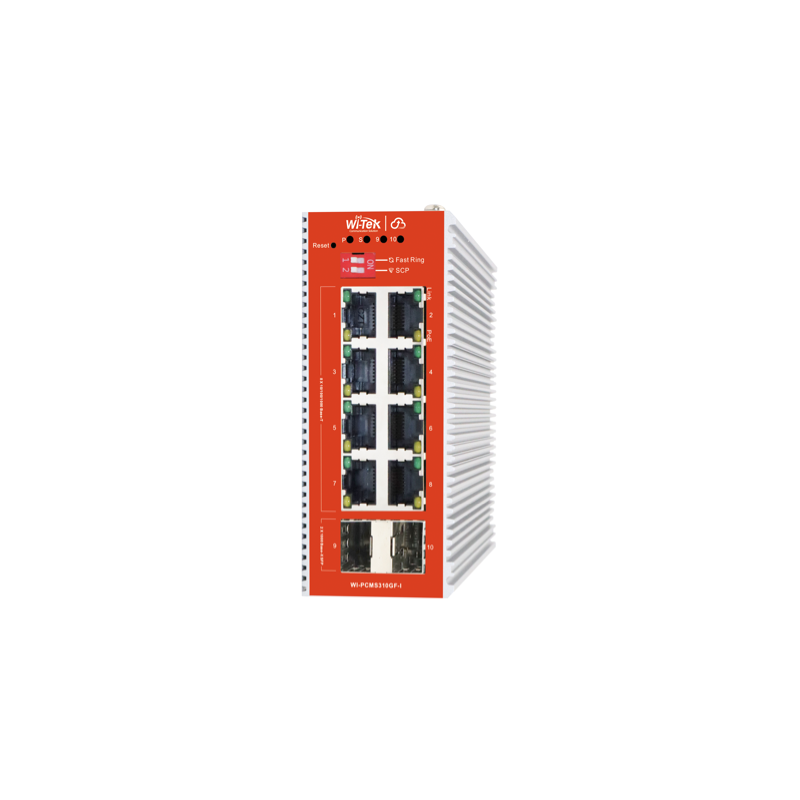

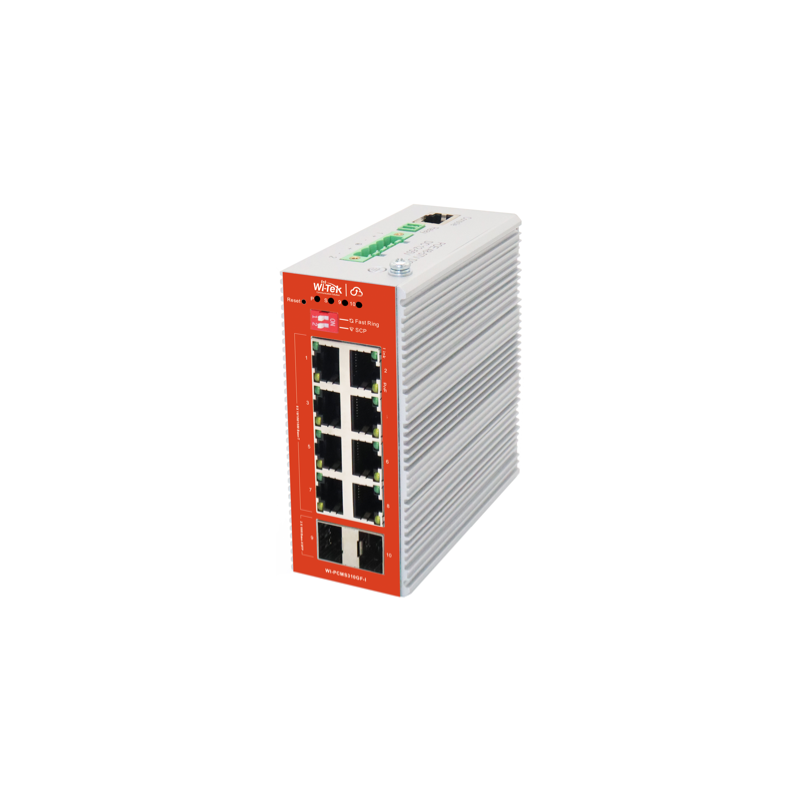

Wi-Tek WI-PCMS310GF-I(V2) Cloud L2+ Managed PoE Switch

Product Description

The WI-TEK WI-PCMS310GF-I(V2) is a cloud L2+ managed PoE switch that allows for remote management of ONVIF cameras via the Wi-Tek Cloud platform or mobile app. It features 8 10/100/1000 Base-T PoE+ ports and 2 10/100/1000 Base-X SFP ports. It supports one-key fast ring configuration and broadcast storm suppression configuration. The switch is designed to operate in temperatures from -40°C to 75°C.

• Remote management of ONVIF cameras via Wi-Tek Cloud platform/mobile APP
• 8 10/100/1000 Base-T PoE+ ports and 2 10/100/1000 Base-X SFP ports
• Supports one-key fast ring configuration and broadcast storm suppression configuration

Product Highlights

This cloud managed PoE switch offers remote management, multiple PoE ports, and enhanced protection features for reliable operation in various environments.

Product Information

Standard Information

• Brand: WI-TEK
• Manufacturer Part Number: WI-PCMS310GF-I

Technical Specifications

• Ports: 8*10/100/1000 Base-T PoE+ ports and 2*10/100/1000 Base-X SFP
• PoE Support: Ports 1-8: 802.3 af/at PoE
• Operating Temperature: -40°C~75°C
• Surge Immunity: Common mode ±6kV, Differential mode ±2KV
• ESD Protection: Air discharge ±8kV, Contact discharge ±6kV
• Model: WI-PCMS310GF-I
• Downlink Ports: 8*10/100/1000 Base-T PoE+ RJ-45 (Auto-MDI/MDI-X)
• Uplink Ports: 2*1000 Base-X SFP
• Management port: 1*RJ45 Console
• PoE Standard: IEEE 802.3af/at (PSE)
• PoE Power Supply Type: End-span
• PoE Pin Assignment: 1/2(+)，3/6(-)
• PoE Power Output: 46~55V DC
• PoE Power: 30W max for each port, 240W max
• Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1x, IEEE802.1q, IEEE 802.1p, IEEE 802.1d, IEEE 802.1w, IEEE 802.3ad, IEEE802.3af, IEEE802.3at
• Forwarding Modes: Store and forward
• Packet Buffer: 4.1Mbit
• MAC Table: 8K
• Switching Capacity: 20Gbps
• Packet Forwarding Rate: 14.88Mpps
• Jumbo Frame: 10kB
• Input Voltage: 48~57V DC
• Power Consumption: Full loading without PoE ≤ 4W, PoE power budget ≤ 240W
• Connector: Removable 5-pin terminal block
• Reverse polarity protection: Support
• Over-voltage protection: Support
• Over-current protection: Support
• Storage Temperature: -40°C~80°C
• Operating Humidity: 5%~95% (Non-condensation)

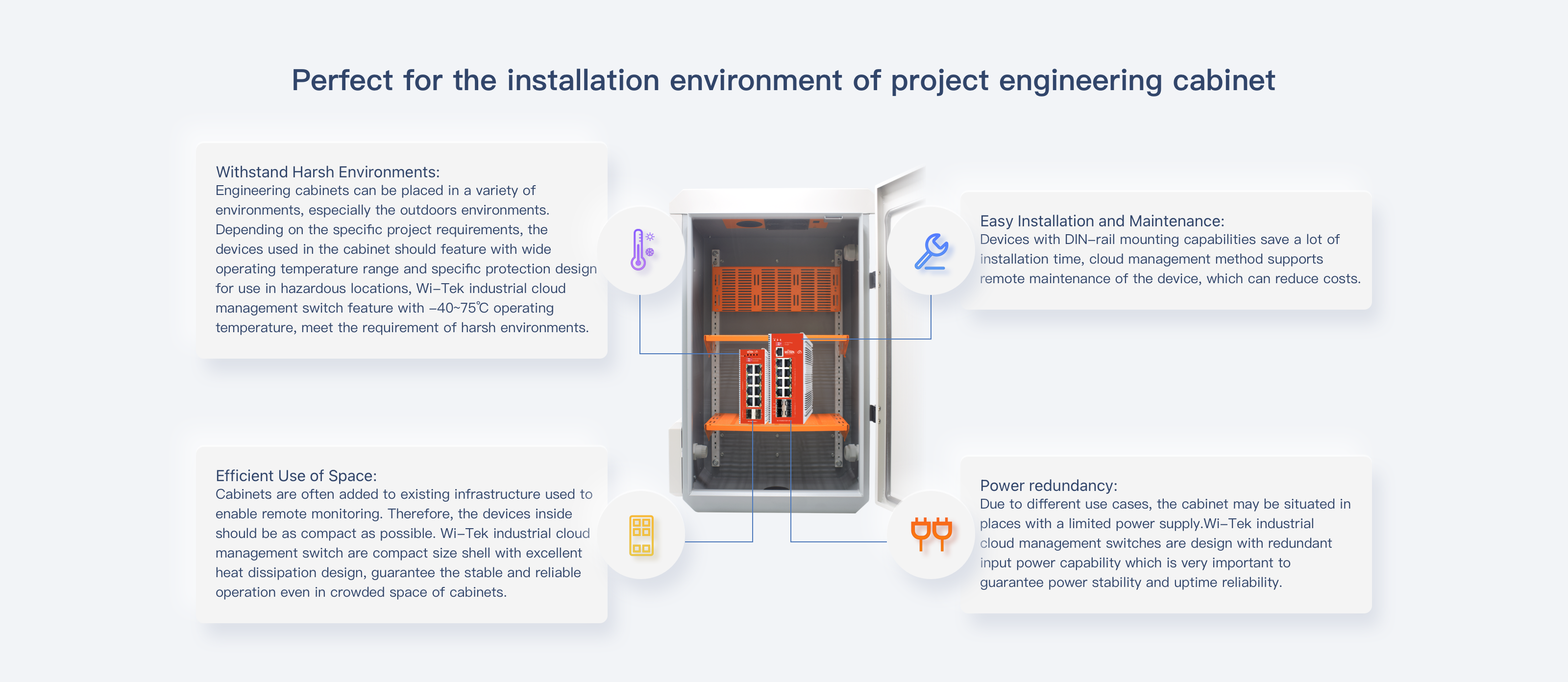

• Installation: Desktop/DIN-rail
• Certifications: CE, FCC, RoHS
