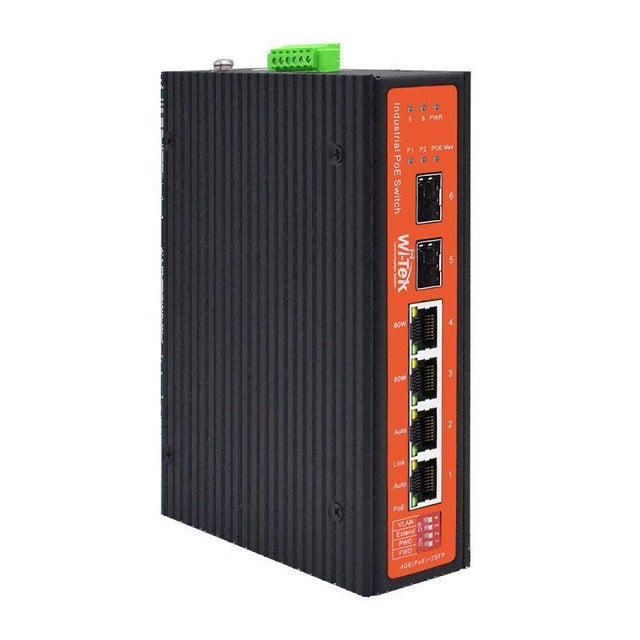

Wi-tek wi-pcms306gf-i 4-port Poe+ Gigabit L2 Industrial Switch

Product Description

The WI-TEK wi-pcms306gf-i is a Layer 2 industrial managed Ethernet switch designed for demanding environments where temperature extremes and network reliability are both critical concerns. It provides four PoE+ Gigabit copper ports and two SFP uplink slots, allowing technicians to power IP cameras, access points, VoIP devices, and other PoE-compatible endpoints while maintaining high-speed fiber or copper uplinks. The switch supports cloud-based management, giving network installers and system integrators centralized control without requiring on-site configuration. It operates across a wide temperature range of -40 degrees C to 75 degrees C, making it suitable for outdoor enclosures, industrial panels, and harsh-environment deployments. Note that a power supply is not included and must be sourced separately.

This switch is intended for industrial and commercial network installations where standard commercial-grade hardware cannot withstand temperature swings, vibration, or continuous-duty operation. Typical applications include IP surveillance systems, building automation networks, traffic infrastructure, and industrial control environments. Licensed low-voltage technicians, network integrators, and security system installers are the primary trades for this equipment. The PoE+ ports eliminate the need for separate power runs to edge devices, streamlining installation in locations where conduit runs are costly or impractical.

Key Features

• Four PoE+ Gigabit ports for powering IP cameras, access points, and other 802.3at-compatible devices
• Two SFP uplink slots for fiber or additional copper Gigabit connections
• Layer 2 managed switching with full cloud control capability
• Industrial-rated operating temperature range: -40 degrees C to 75 degrees C
• Designed for harsh environments including outdoor enclosures and industrial panels
• Power supply not included — allows pairing with site-appropriate DC power source

Compatibility

Designed as an OEM-style managed switch for industrial PoE network installations requiring Layer 2 switching with SFP uplink capability in wide-temperature environments.

Installation Notes

Installation should be performed by a qualified low-voltage or network technician following applicable NEC and local electrical codes. Before servicing or cabling, ensure the external power supply is de-energized. Verify that the connected power supply meets the input voltage and current requirements of the switch before powering on. Do not exceed the per-port PoE power budget when connecting end devices.

Technical Specifications

• PoE Copper Ports: 4 x PoE+ Gigabit
• SFP Uplink Ports: 2
• Switch Type: Layer 2 Industrial Managed
• Management: Cloud Control
• Operating Temperature: -40 degrees C to 75 degrees C
• Power Supply: Not included

Standard Information

• Brand: WI-TEK
• Manufacturer Part Number: wi-pcms306gf-i
