White-Rodgers WR-50M56-743 Integrated Furnace Control

Product Description

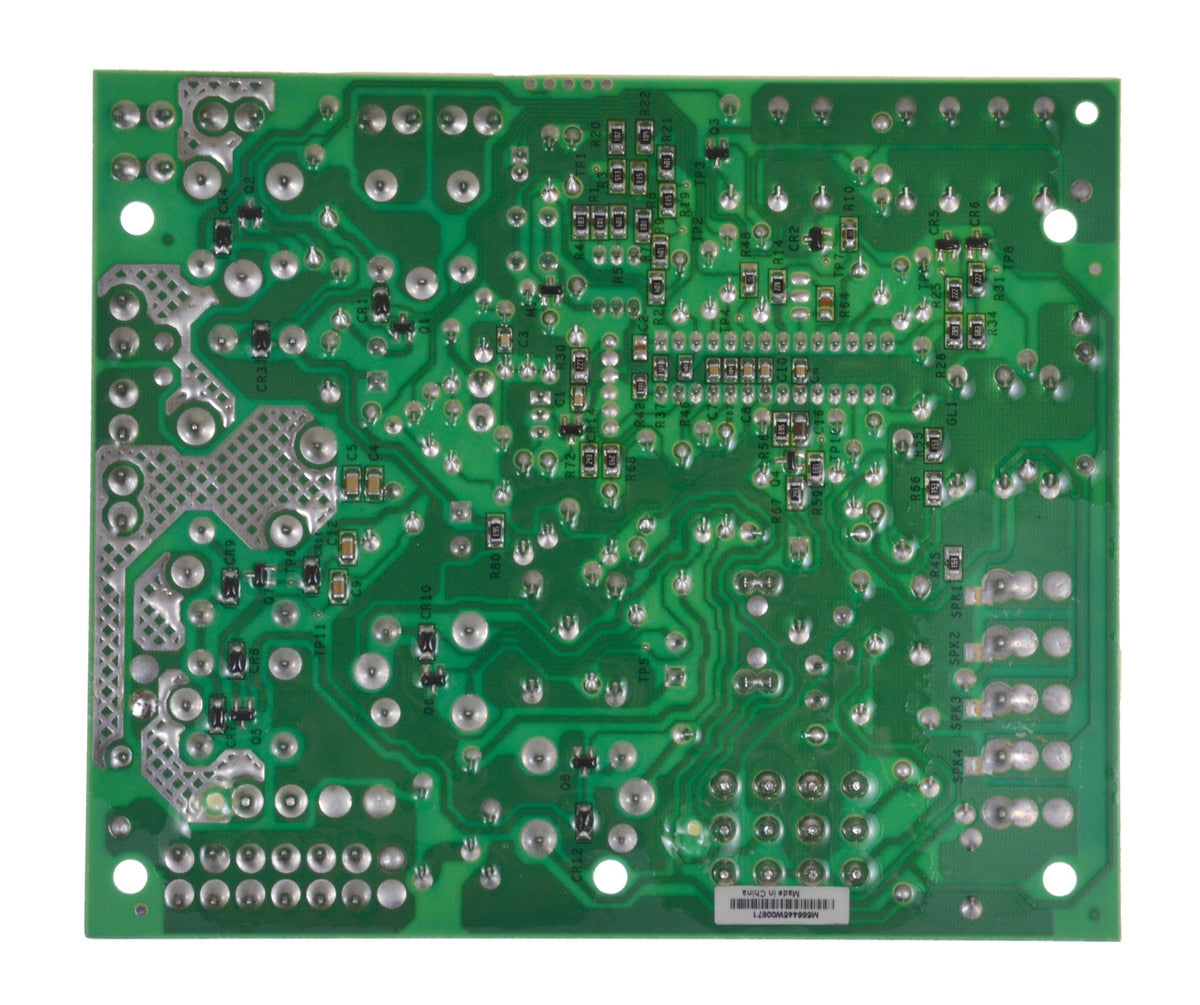

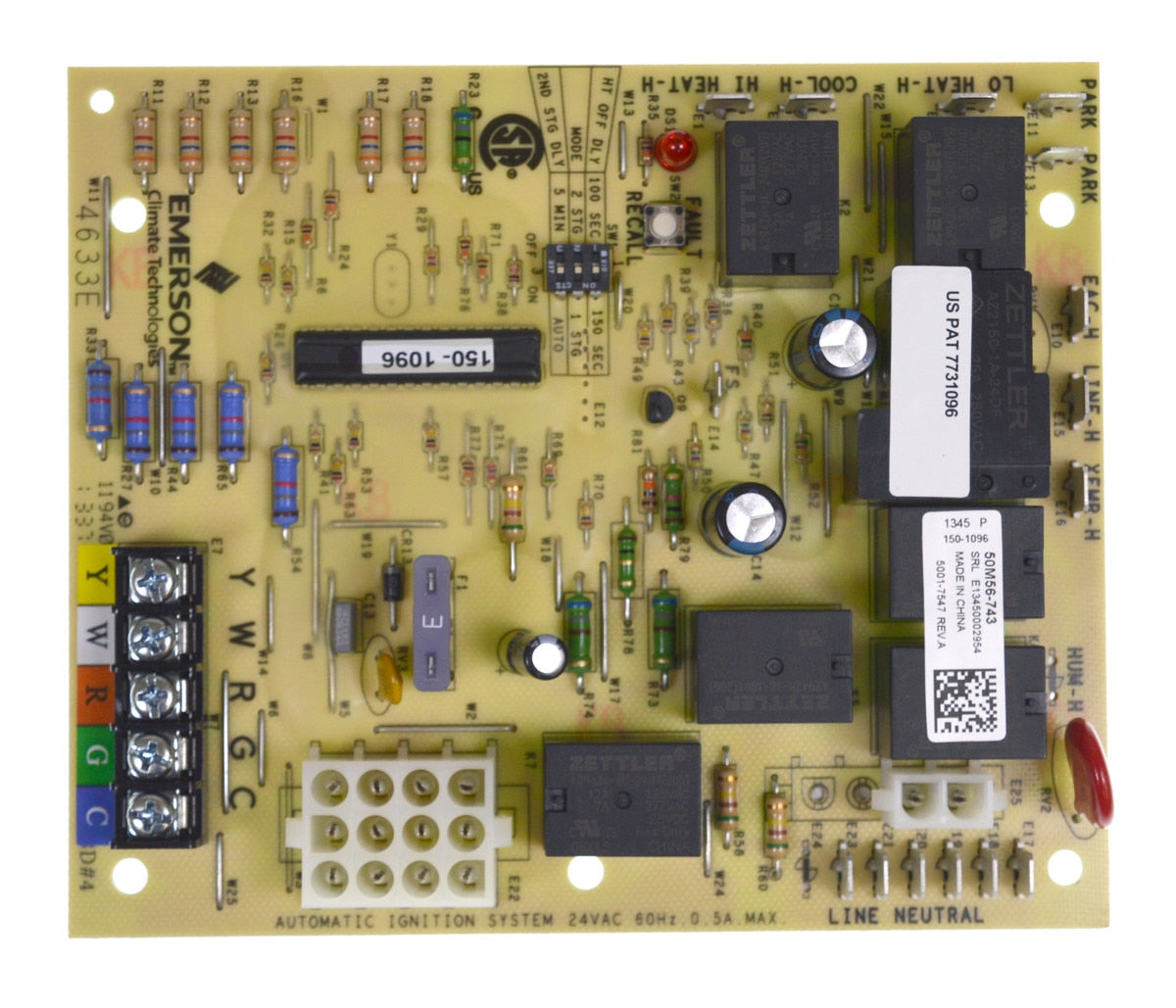

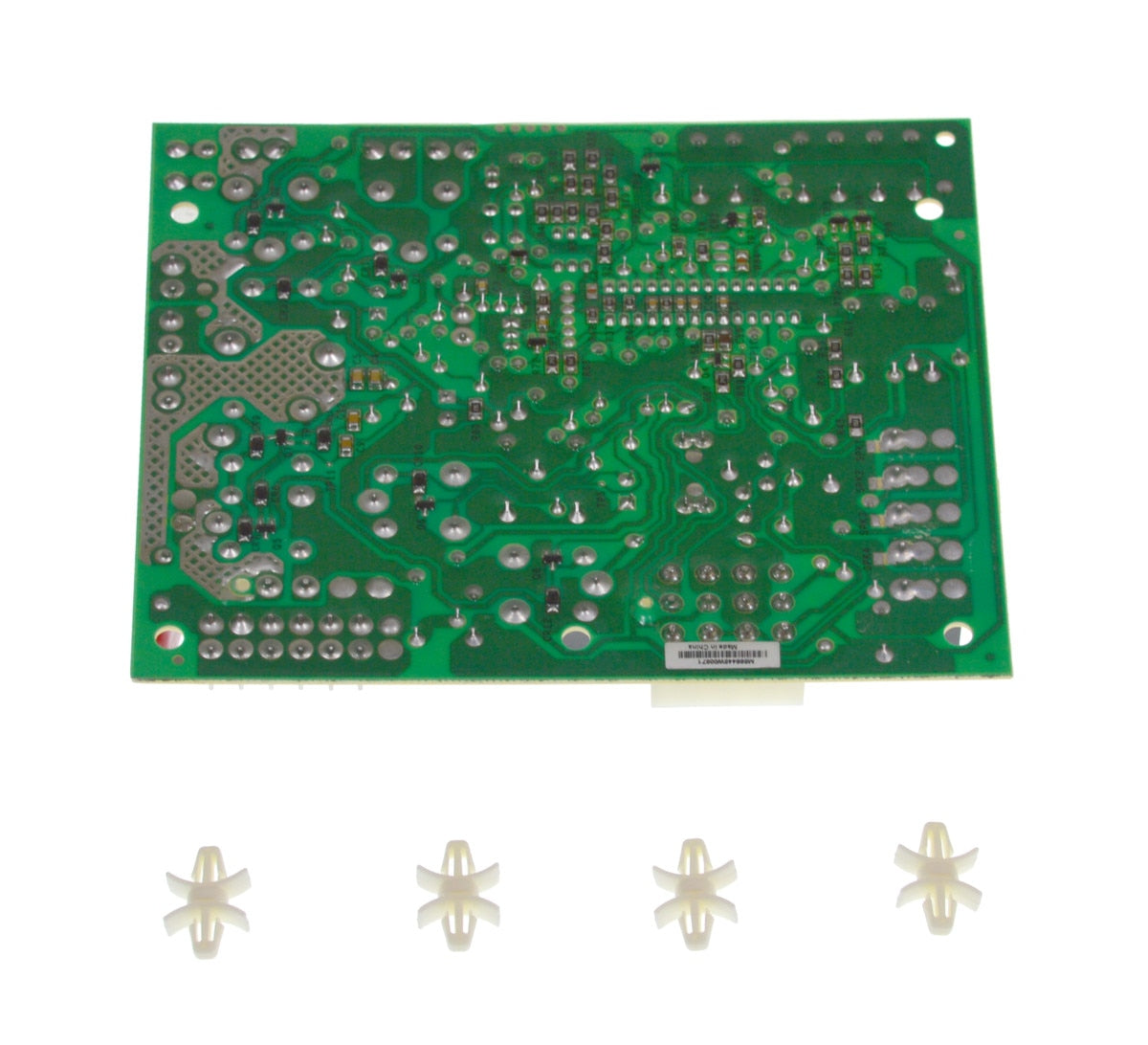

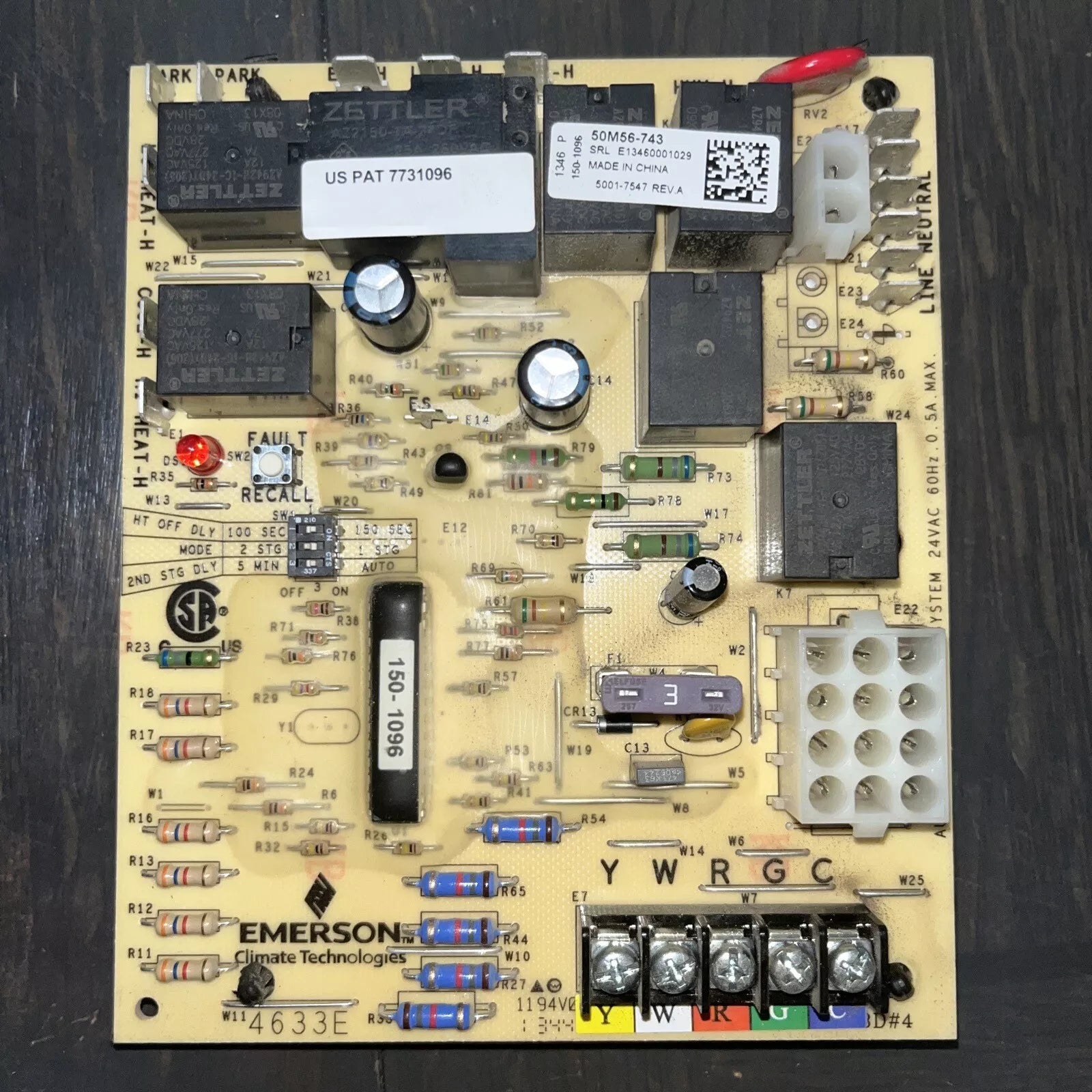

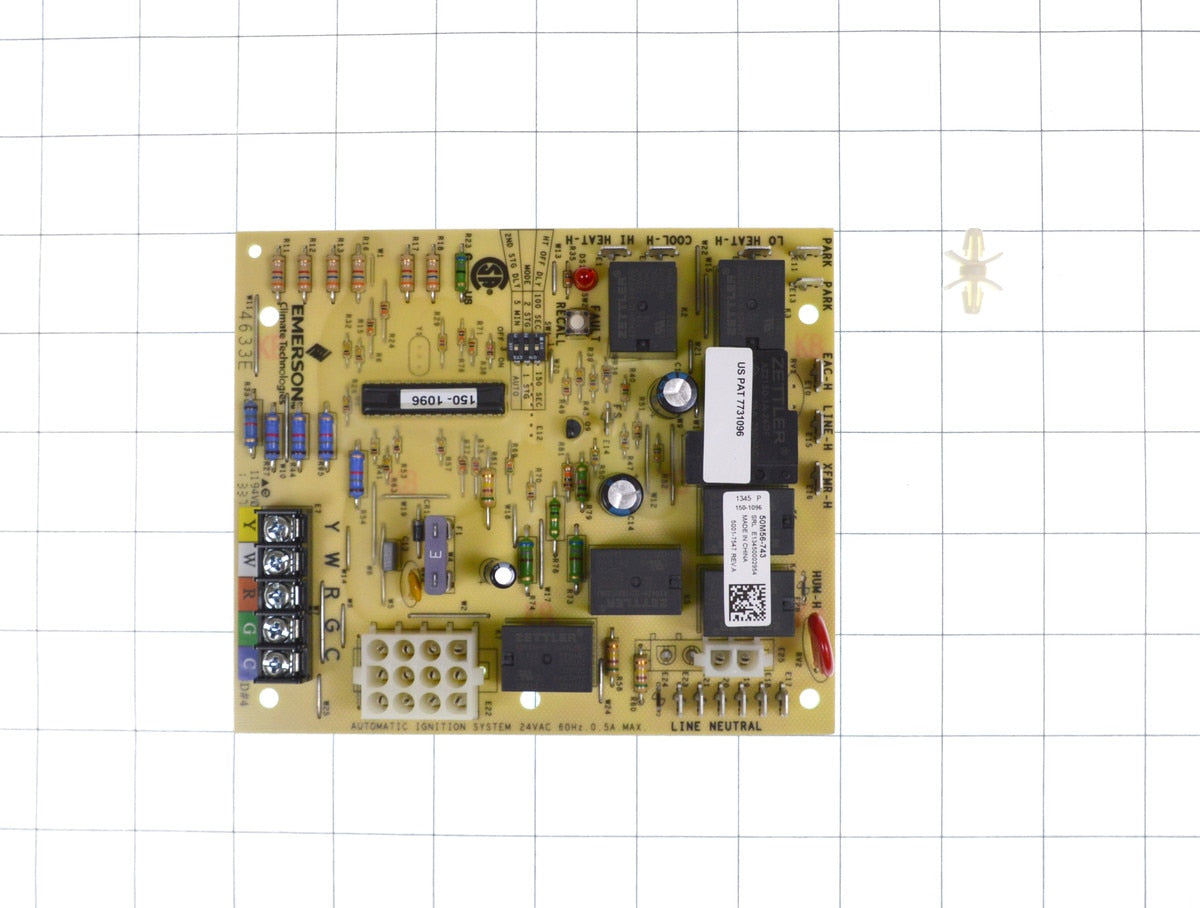

The White-Rodgers WR-50M56-743 is an integrated furnace control designed for use in central furnaces and air conditioners. This control board provides integrated hot surface control and is compatible with Amana, White, Goodman, and White-Rodgers systems. It is designed to replace older models such as 0130F00006 and PCBBF132S.

• Features a system diagnostic LED for fault recall.
• Supports one or two-stage gas valve operation.
• Operates within a wide temperature and humidity range.

Product Highlights

Product Information

Standard Information

• Brand: White-Rodgers
• MPN: WR-50M56-743

Technical Specifications

• Operating Temperature: -40 to 176°F
• Humidity Range: 5% to 93% RH (non-condensing)
• Input Voltage: 25 VAC 50/60 Hz
• Maximum Input Current @ 30 VAC: 0.45 amp
• Valve Relay: 1.5 amp @ 25 VAC
• Ignitor Relay: 6.0 amp @ 120 VAC
• Inducer Relay: 2.2 FLA-3.5 LRA @ 120 VAC
• Circulator Relay: 14.5 FLA-25.0 LRA @ 120 VAC
