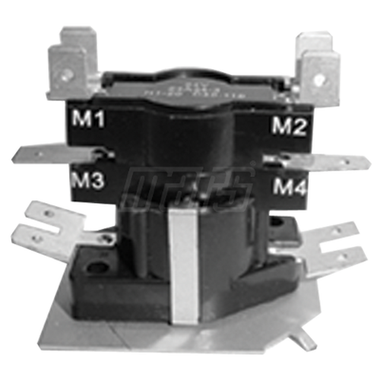

WHITE-RODGERS WR-24A34-3 Electric Heat Sequencer

Product Description

The WHITE-RODGERS WR-24A34-3 is an electric heat sequencer suitable for oil furnaces, gas furnaces, heat pumps, and electric furnaces. It is equipped with a DPST (Double Pole Single Throw) switch configuration that includes two switches. The sequencer has one timing sequence, allowing for efficient stage heating. The main switch on time can be adjusted from one to twenty seconds, while the off time ranges from forty to one hundred ten seconds. It operates at a control voltage of twenty-four volts and supports a full load amp rating of twenty-five at two hundred forty volts.

• Compatible with oil, gas, electric furnaces, and heat pumps
• Includes a DPST switch setup with two effective switches
• Adjustable main switch on time from one to twenty seconds

Product Highlights

Product Information

Standard Information

• Brand: WHITE-RODGERS
• MPN: WR-24A34-3

Technical Specifications

• Type: DPST
• Number of Switches: 2
• Main Switch On Time: 1-20 seconds
• Main Switch Off Time: 40-110 seconds
• Number of Timings: 1
• FLA @ 240V: 25
• Control Volts: 24
• Applications: Oil furnaces, Gas furnaces, Heat pumps, Electric furnaces
