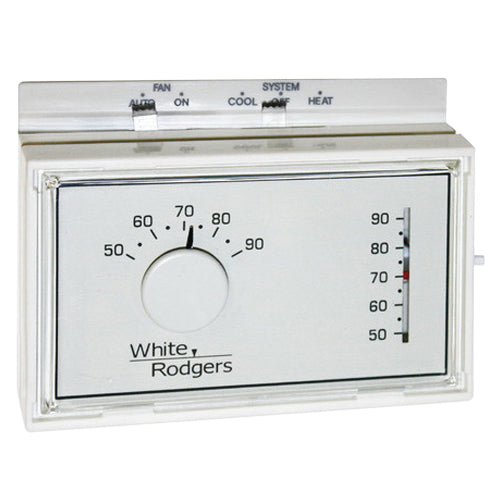

White-Rodgers WR-1F56-N444 Low Voltage Thermostat

Product Description

The White-Rodgers WR-1F56-N444 is a low voltage thermostat designed for compatibility with single-stage systems. It operates at 24 VAC and supports 1H/1C, 1H, or 1C configurations. This model is suitable for use with 3-wire zone valves and 750 mV applications. The thermostat utilizes mercury-free snap-action contacts protected by a dust cover and enclosed design.

• Adjustable heat anticipator ranges from 0.15 to 1.2 A.
• Compatible with single-stage systems and 750 mV applications.
• Includes mounting hardware and installation instructions.

Product Highlights

The White-Rodgers WR-1F56-N444 features a built-in bimetal thermometer and offers system switching options of Heat-Off-Cool or None (Heat Only or Cool Only).

Product Information

Standard Information

• Control Range: 50 to 90 deg F
• Differential: 1 deg F

Technical Specifications

• Dimensions: 3-1/4 inches W x 1-5/8 inches D x 4-1/2 inches H
• Weight: 0.46 lbs
• Voltage: 24 VAC
• Stages Heat: 1
• Stages Cool: 1
• Temperature Range: 50°F to 90°F (10°C to 32.22°C)
• Fan Switching: Yes
• Voltage Compatibility: 750 mV
