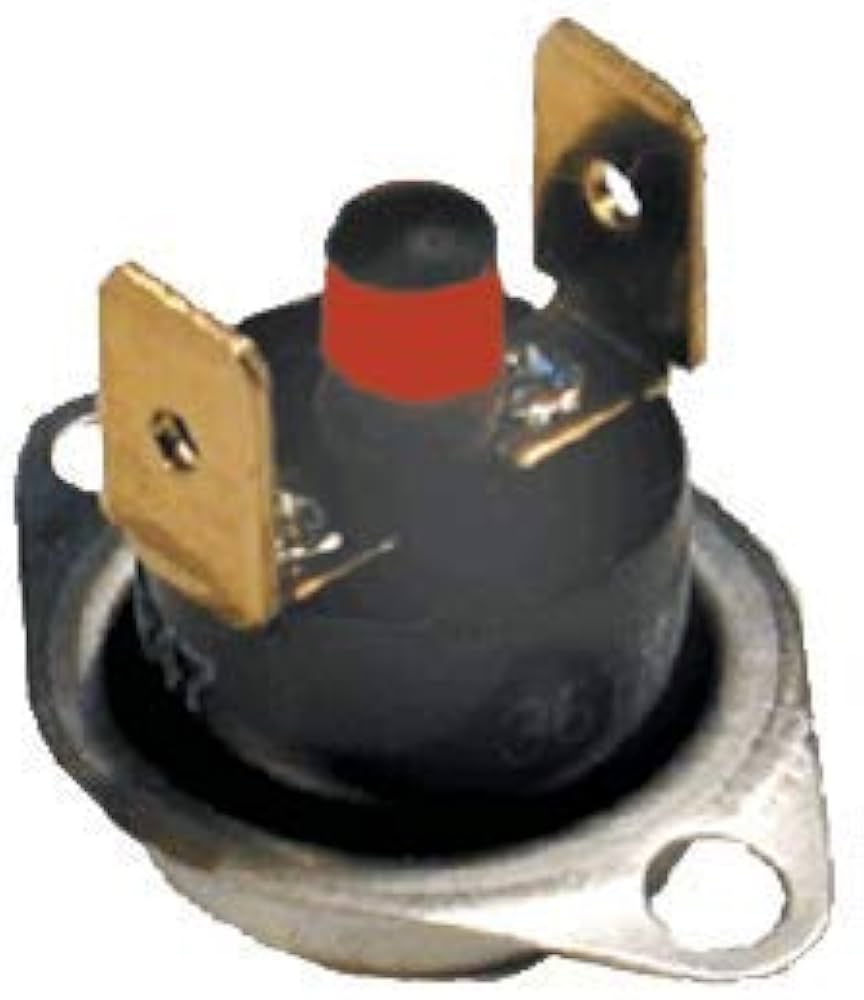

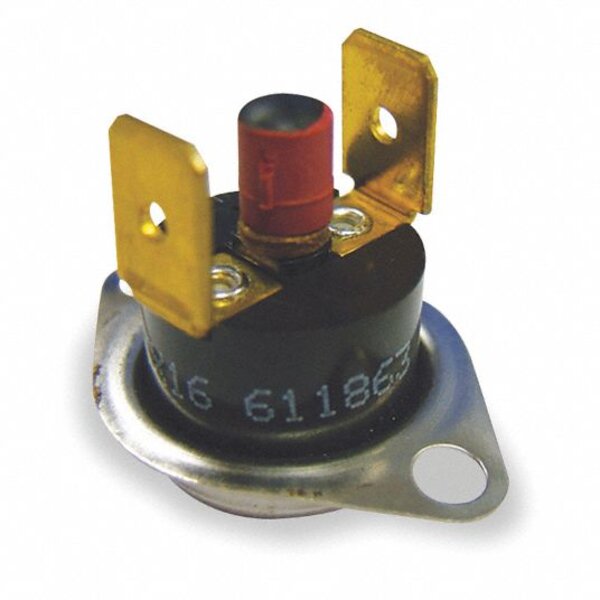

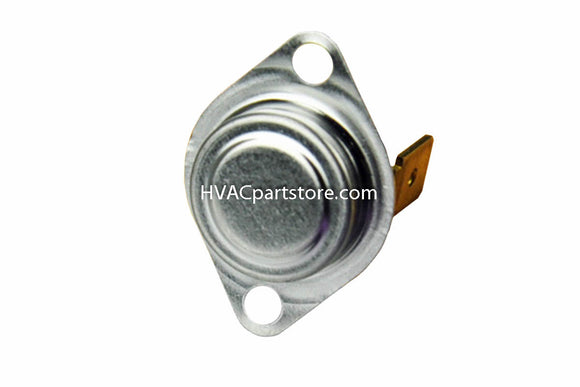

WHITE-RODGERS SRL220 Thermostat, Disc, Open On Rise, 15 Amps@ 125Vac

Product Description

The WHITE-RODGERS SRL220 is a disc thermostat designed for gas-fired furnaces and rooftop units. This thermostat features a manual reset function that enhances safety in thermal applications. The built-in stainless steel disc cup enables reliable performance under varying temperatures. It operates by opening on an increase in temperature, with a cut-out point set at two hundred twenty degrees Fahrenheit.

• Designed for gas-fired furnaces and unit heaters.
• Manual reset function ensures safety after reaching set temperature.
• Equipped with stainless steel mounting brackets for durability.

Product Highlights

This thermostat is ideal for applications where precise temperature control is crucial and provides an easy solution for manual intervention.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• MPN: SRL220

Technical Specifications

• Current Rating: 15 A
• Voltage Rating: 125 V
• Inductance: 3.0 FLA, 12.0 LRA @ 120 VAC; 1.5 FLA, 6.0 LRA @ 240 VAC
• Reset Type: Manual
• Series: 3L12 Series
• Manufacturer: White-Rodgers
• Cut-Out Temperature: 220°F
