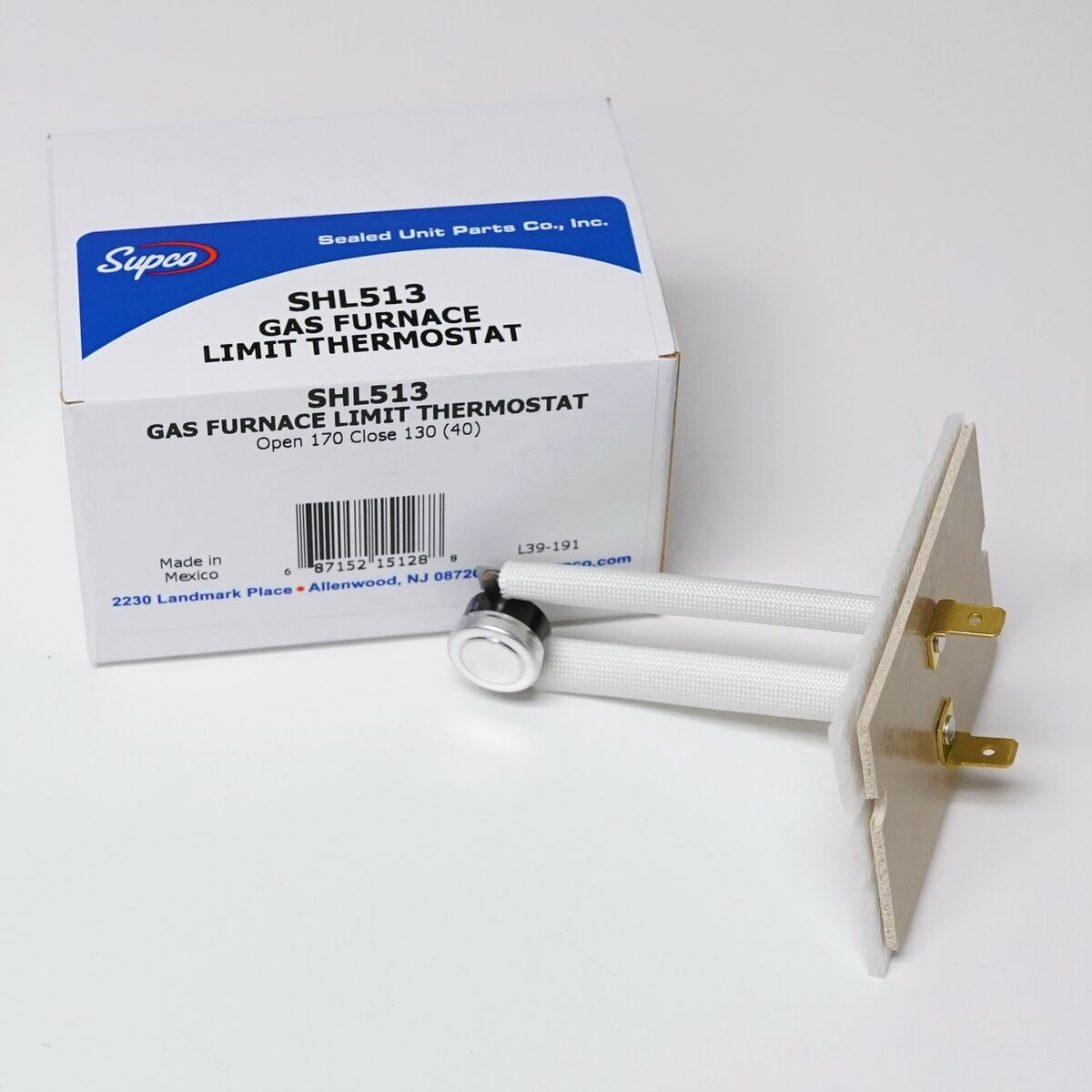

WHITE-RODGERS SHL513 Therm-O-Disc SHL Plenum Thermostat

Product Description

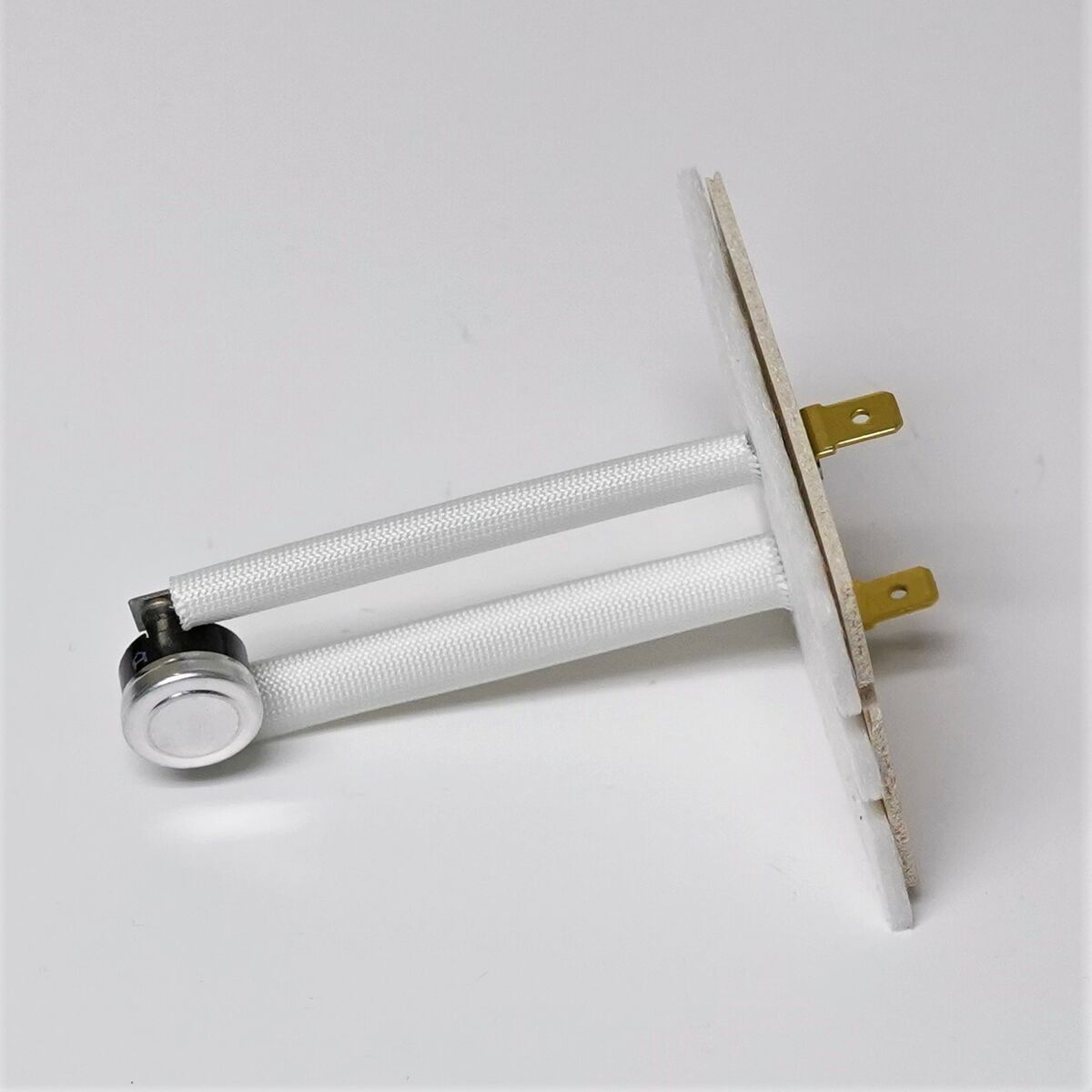

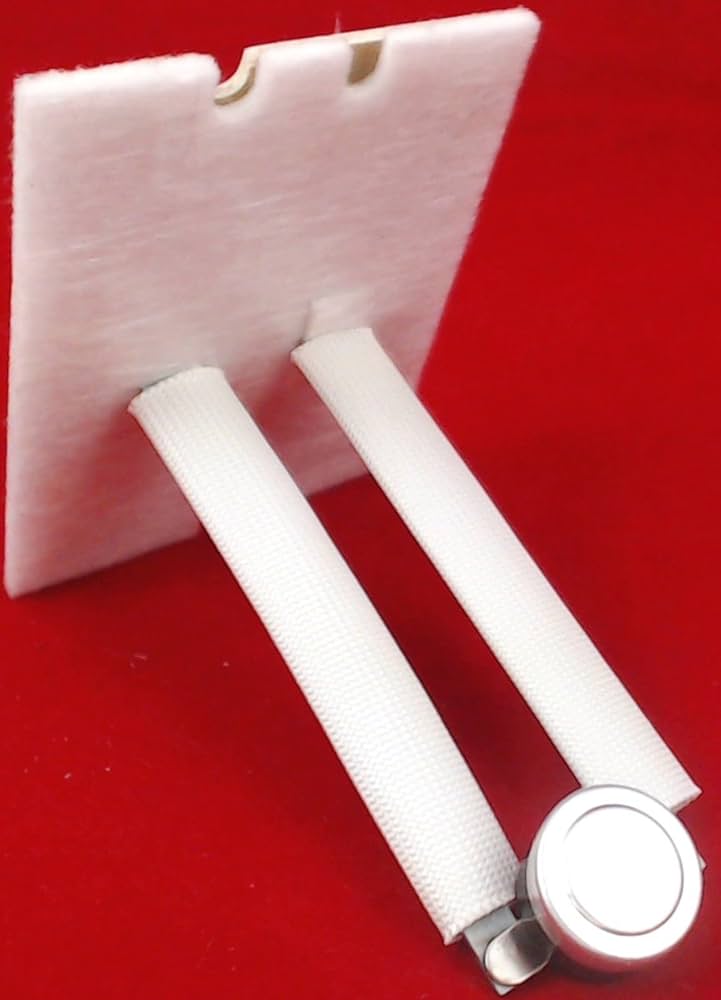

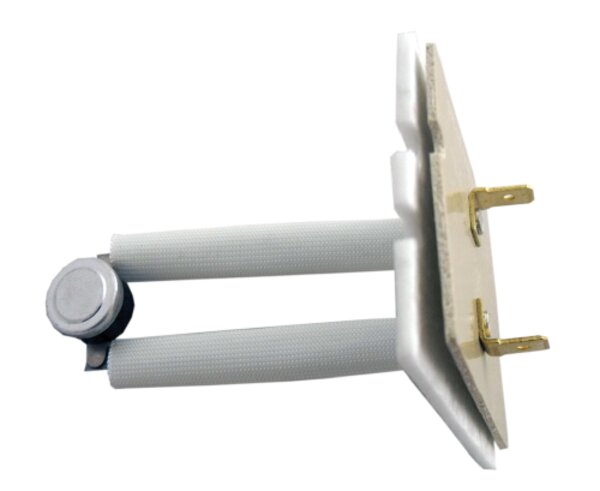

The WHITE-RODGERS SHL513, or Therm-O-Disc SHL Plenum Thermostat, is a bimetal temperature control device designed for optimal installation in furnace plenums. This thermostat effectively senses temperature changes and sends a signal to shut down the furnace if it surpasses a defined threshold. The device operates as a single pole, single throw (SPST) and activates upon a temperature rise. It is recognized by UL and approved by CSA.

• Compact and versatile design.
• Reliable temperature monitoring for plenum areas.
• Automatically shuts down the furnace for safety when temperatures are too high.

Product Highlights

Product Information

Standard Information

• Brand: WHITE-RODGERS
• MPN: SHL513

Technical Specifications

• Open Temperature: 170 °F
• Close Temperature: 130 °F
• Differential: 40 °F
• Board Width: 1.88 inches
• Board Height: 2.94 inches
• Insertion Length: 3.12 inches
• Resistive Amps @ 120V: 15A
• Resistive Amps @ 240V: 10A

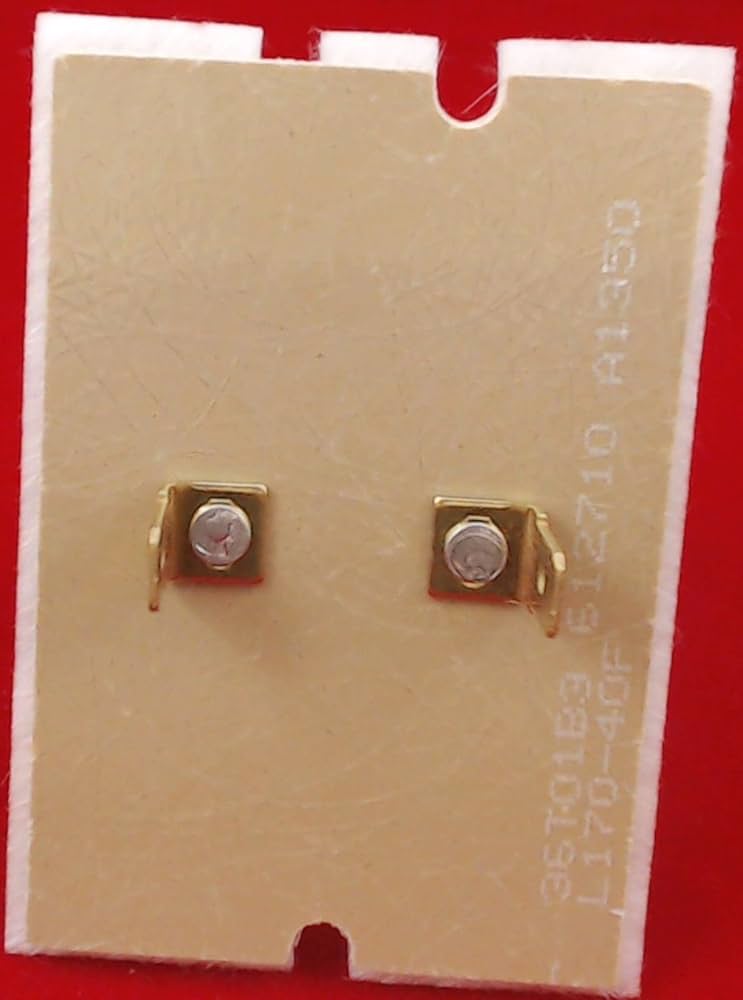

• SPST Rating: L170-40
