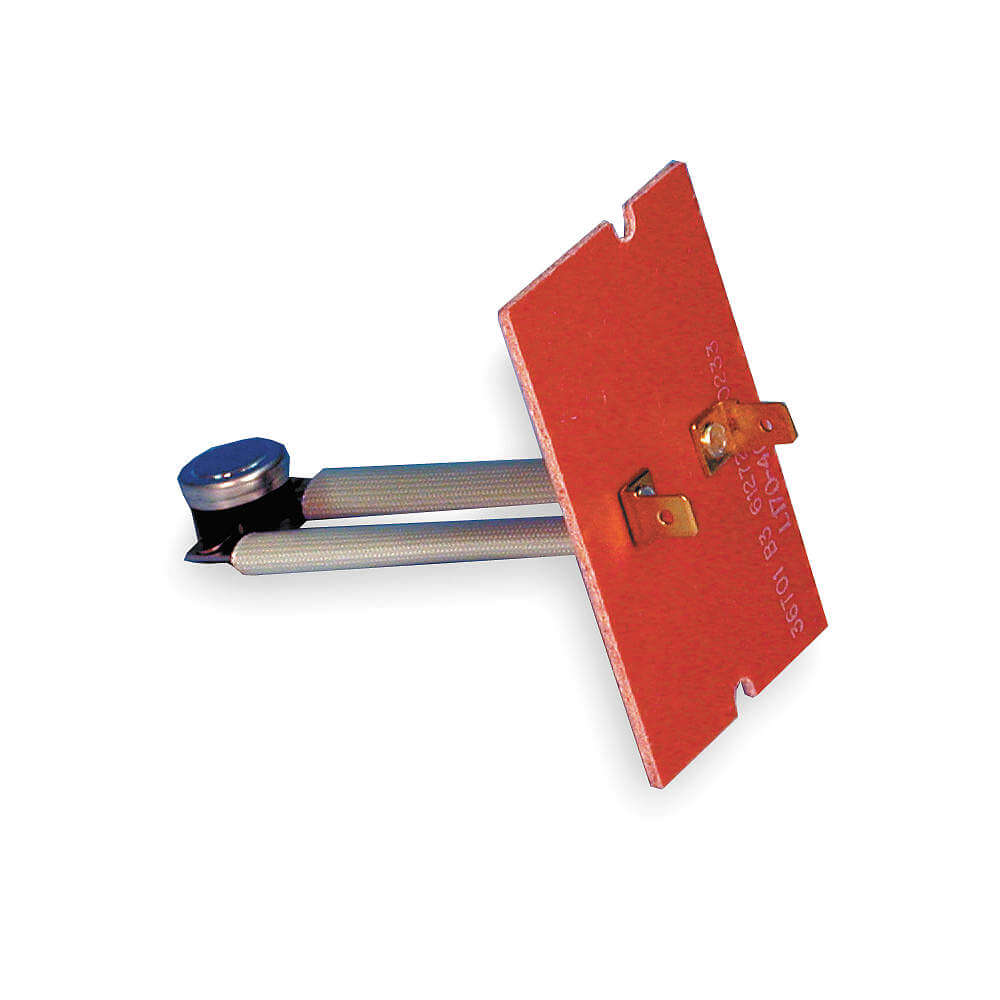

White-Rodgers SHL507 Plenum Thermostat 140F (Replacement MPN SHL507)

Product Description

The White-Rodgers SHL507 is a plenum thermostat designed for use in gas furnaces as a limit control. This dependable thermostat is a fixed-temperature, auto-reset component that maintains safe operating temperatures.

• Plenum mount limit control with fixed temperature and auto reset.
• Opens at 140 degrees Fahrenheit and closes at 110 degrees Fahrenheit.
• SPST switch action, open on rise.

Product Highlights

This thermostat is UL recognized and CSA approved, serving as a suitable direct OEM replacement.

Product Information

Standard Information

• Brand: White-Rodgers
• MPN: SHL507

Technical Specifications

• Switch Type: SPST
• Switch Action: Open on Rise
• Open Temperature: 140 degrees Fahrenheit
• Close Temperature: 110 degrees Fahrenheit
• Differential: 30 degrees Fahrenheit
• Insertion Length: 3.12 inches
• Board Width: 1.88 inches
• Board Height: 2.8 inches
• Resistive Amps @ 120V: 15A
• Resistive Amps @ 240V: 10A
• Inductive Amps @ 120V: 3A
• Inductive Amps @ 240V: 1.5A
• Voltage Rating: 120 to 480 VAC
