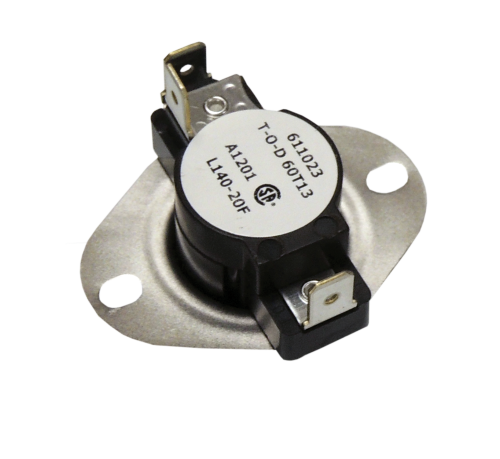

White-Rodgers LD140 Thermostat 60T13 Style 611023

Product Description

The White-Rodgers LD140 is a bimetal disc temperature control that provides effective temperature management. This thermostat is designed for electrical loads up to twenty-five amps at two hundred forty volts alternating current (VAC). It includes a welded construction ensuring durability for current-carrying components and offers easy installation with quarter-inch quick disconnect terminals. The LD140 operates as a single pole double throw (SPDT) device.

• Designed for loads up to 25 amps at 240 VAC
• Welded construction for durability
• 1/4 quick disconnect terminals for easy installation

Product Highlights

This unit is suitable for a variety of heating and cooling applications, ensuring reliable operation and temperature control within set parameters.

Product Information

Standard Information

• Brand: White-Rodgers
• MPN: LD140

Technical Specifications

• Differential: 20 degrees
• Open Temperature: 140 degrees Fahrenheit
• Close Temperature: 120 degrees Fahrenheit
• FLA @ 120 VAC: 10 Amps
• FLA @ 240 VAC: 5 Amps
• LRA @ 120 VAC: 60 Amps
• LRA @ 240 VAC: 30 Amps
• Pilot Duty @ 120VAC / 240VAC: 125 VA
• RLA @ 120VAC / 240VAC: 25 Amps
• Agency Approvals: UL, CSA
