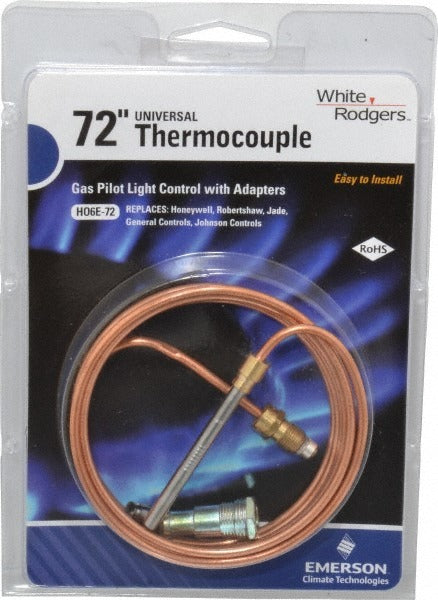

White-rodgers H06E072S1 Universal Thermocouple 72 Inch

Product Description

The WHITE-RODGERS H06E072S1 is a universal replacement thermocouple designed for use in gas-fired HVAC systems and other gas appliances that rely on a standing pilot flame for ignition safety. The thermocouple generates a small millivolt signal when the pilot flame is present, holding the gas valve open. When the pilot goes out, the signal drops and the valve closes automatically, shutting off gas flow. Constructed with a stainless steel probe, this unit features a 72-inch lead length, giving technicians plenty of reach for routing in tight equipment cabinets. It weighs 0.3 pounds and is packaged individually.

This thermocouple is suited for residential and light commercial gas furnaces, boilers, water heaters, and other standing-pilot gas appliances. The universal connection design allows it to fit a wide range of equipment without special adapters. It is typically installed by licensed HVAC technicians or plumbers during routine maintenance, pilot assembly replacement, or gas valve service calls where the original thermocouple has failed or degraded.

Key Features

• 72-inch lead length provides extended reach for routing within equipment enclosures
• Stainless steel probe construction for durability in high-temperature pilot flame environments
• Universal connection fits a broad range of standing-pilot gas appliances
• Millivolt output holds gas valve open only when a live pilot flame is confirmed
• Lightweight at 0.3 pounds for easy handling during installation

Compatibility

Designed as a universal OEM-style replacement thermocouple for standing-pilot gas furnaces, boilers, water heaters, and similar gas appliances that use a standard millivolt thermocouple safety circuit.

Installation Notes

Installation should be performed by a licensed HVAC technician or plumber in accordance with the appliance manufacturer instructions and applicable codes such as the IFGC. Shut off the gas supply and allow the appliance to cool completely before removing the existing thermocouple. Hand-tighten the connection nut at the gas valve first, then snug with a wrench — avoid overtightening, which can damage the valve seat. Verify pilot flame engulfs the thermocouple tip adequately after installation and confirm the gas valve holds before returning the appliance to service.
