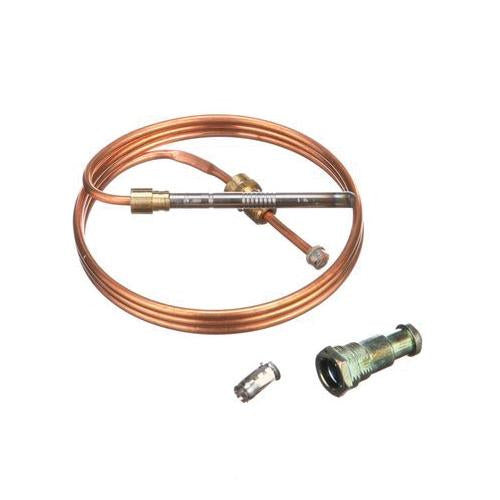

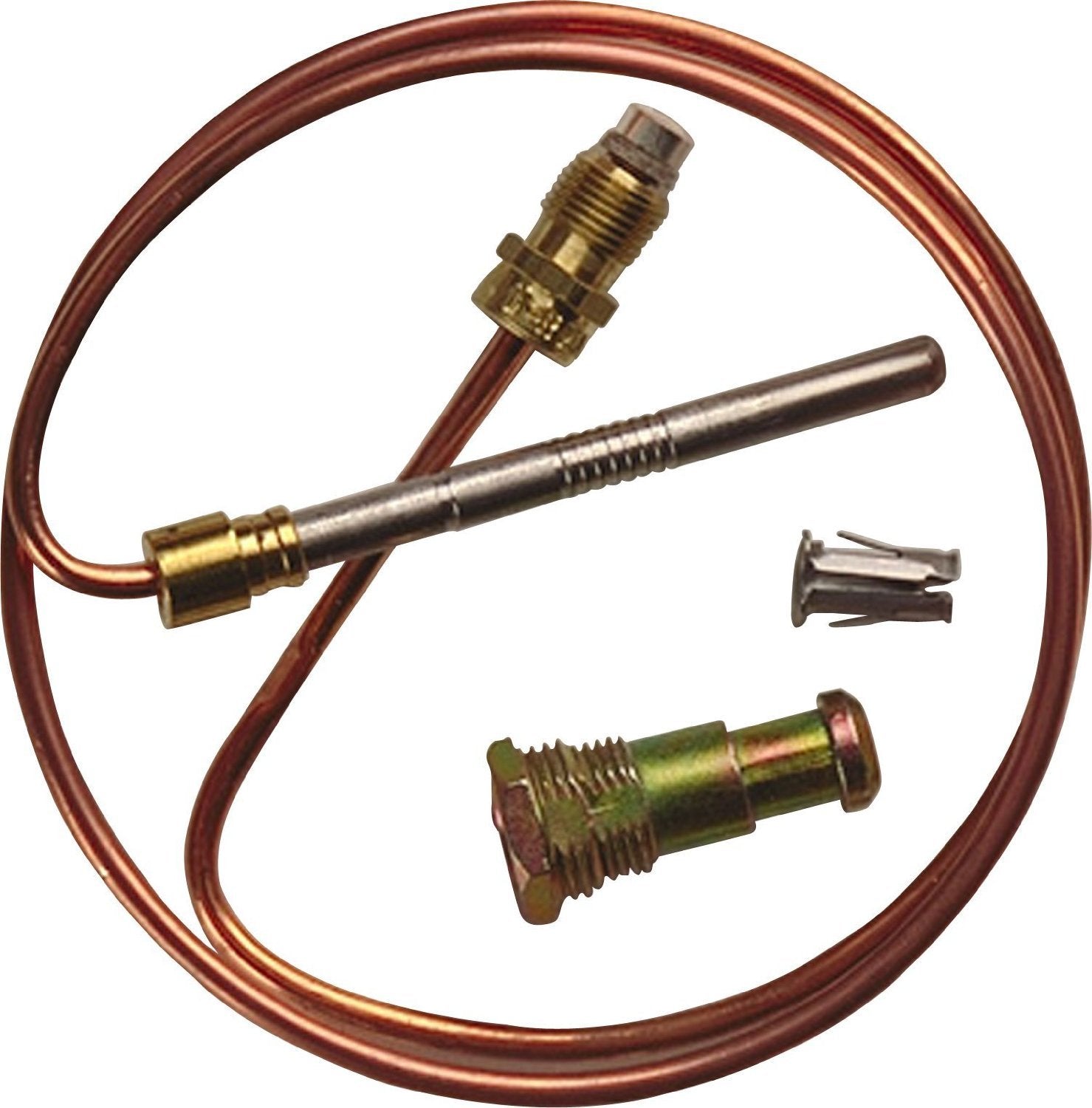

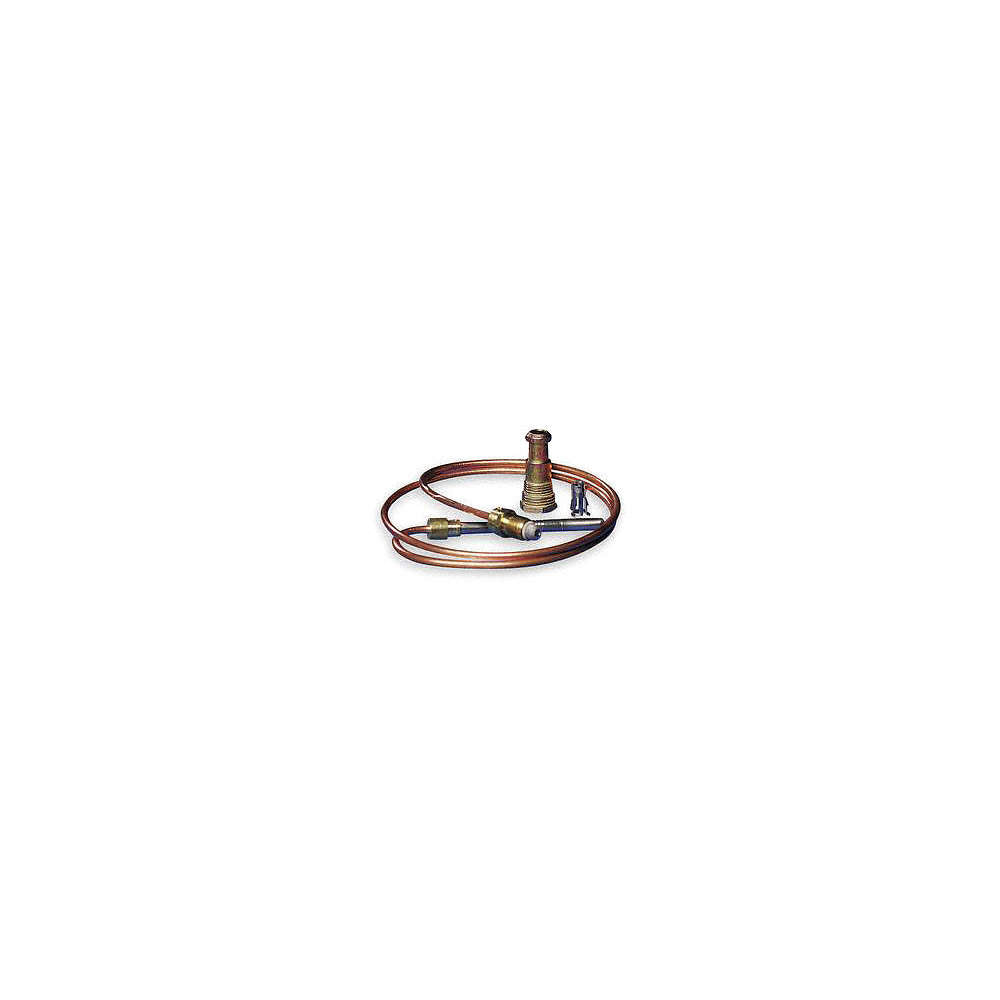

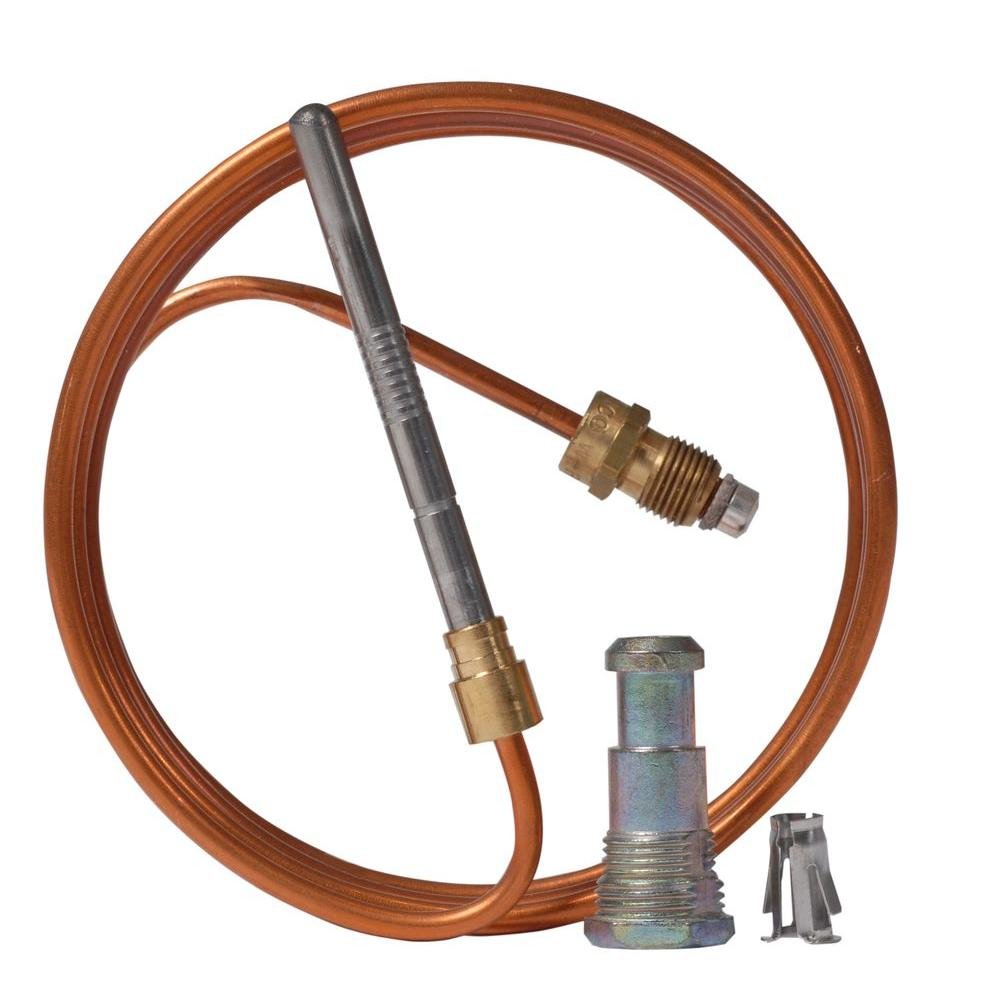

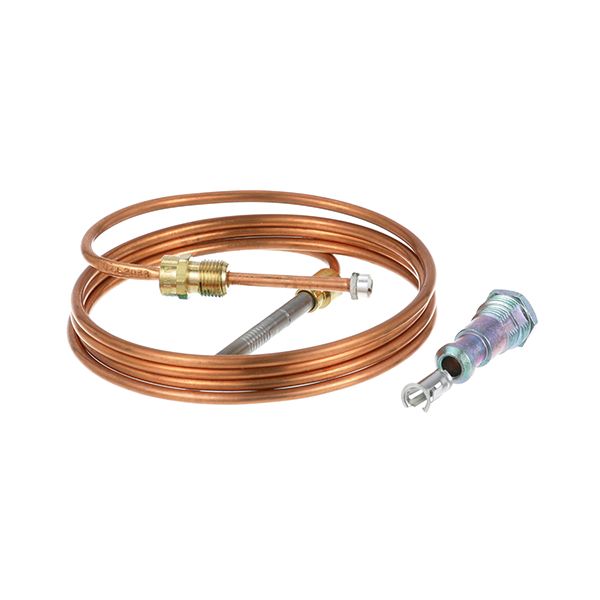

White-Rodgers H06E048S1 Universal Thermocouple 48 in replacement H06E

Product Description

The WHITE-RODGERS H06E048S1 is a universal replacement thermocouple with a 48 inch length. It includes universal adapter fittings for replacing thermocouples in most types of pilot burners. This thermocouple is compatible with Honeywell, Johnson Controls, Robershaw and White-Rodgers. It works for both LP and natural gas applications.

• Universal adapter fittings included for replacing thermocouple in most types of pilot burners
• Stainless steel element construction for prolonged thermocouple life
• Standard coaxial thermocouple 11/32" double lead thread
• Works for both LP and natural gas applications

Product Highlights

The White-Rodgers H06E048S1 universal thermocouple has a stainless steel element and is compatible with various brands and fuel types.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: H06E048S1
• Country of Origin: Mexico

Technical Specifications

• Manufacturer: White-Rodgers
• Brand: White-Rodgers
• Model / MPN: H06E048S1
• Product Type: Thermocouple
• Rod Length: 48 in
• Temperature Rating: 1450 deg F
• Voltage Rating: 22 to 30 mV
• For Pilot System Type: Standing Pilot
• Probe Length: 48 in
• Process Connection Type: Threaded
• Compatible with Brand: Honeywell, Johnson Controls, Robershaw, White-Rodgers
• Element Material: Stainless Steel
• Series: H06
• Maximum Hot Junction Temperature: 1,450 Degrees F
• Overall Length: 48 in
• Probe Diameter: 3/16 in
• Output: 18 to 30 mV
• Process Connection Size: 11/32 in
• OEM Replacement Part Number: 1980, H06E, K19, Q34A
• Includes: Universal Adapter Fitting
• For Fuel Type: LP, Natural Gas
• Maximum Cold Junction Temperature: 800 Degrees F
• Lead Length: 48 in
