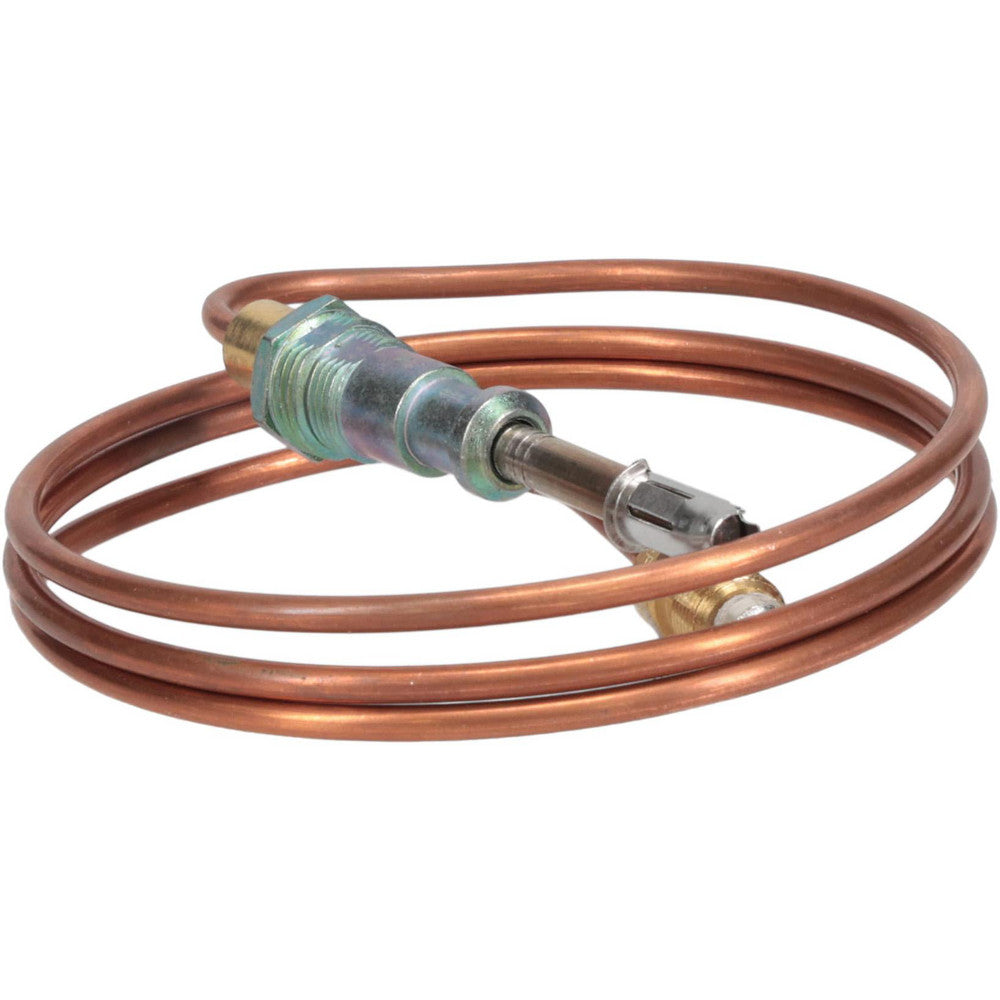

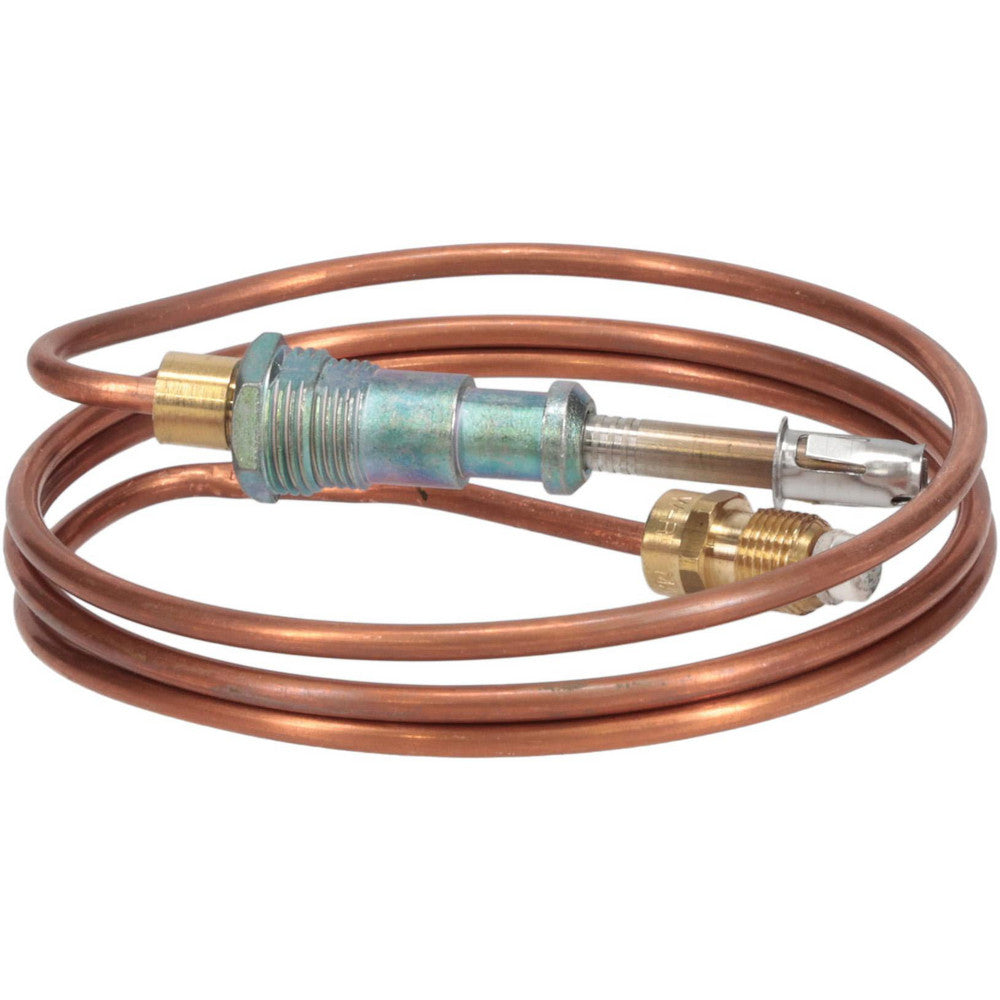

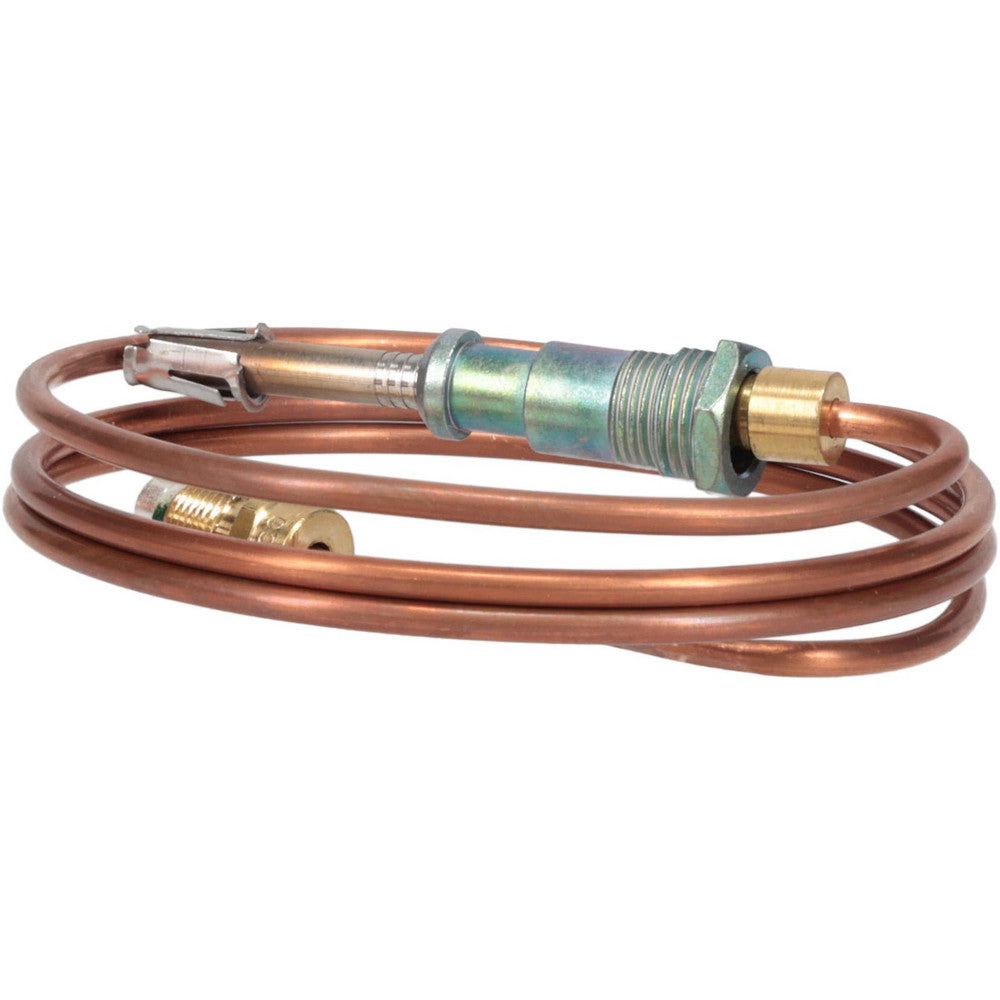

White-Rodgers H06E036S1 Universal Thermocouple 36 inches Replacement H06E

Product Description

The WHITE-RODGERS H06E036S1 universal thermocouple features stainless steel element construction for long life. Universal adapter fittings are included for easy installation in the pilot burner. This thermocouple has a standard 11/32" double lead thread and replaces Honeywell Q34A, Johnson K19, Robertshaw 1980 and White-Rodgers H06E.

• Stainless steel element construction for long thermocouple life
• Universal adapter fittings included for easy installation of thermocouple in pilot burner
• Standard thermocouple 11/32" double lead thread

Product Highlights

This universal thermocouple is easy to install and provides a long service life. It is suitable for use with LP and natural gas.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: H06E036S1
• Country of Origin: Mexico

Technical Specifications

• Manufacturer: White-Rodgers
• Brand: Emerson
• Model / MPN: H06E036S1
• UPC: 786710381041
• MPN: H06E036S1
• Number of Items: 1.0
• Overall Length: 36 in
• Prop 65: Yes
• Lead Length: 36 in
• Probe Length: 36 in
• Material: Stainless Steel
• Process Connection Size: 11/32 in
• Cable Length: 36 in
• Item: Replacement Thermocouple
• Type: Standard Coaxial
• Voltage: 18 to 30 mV
• Gas Type: LP/NG
• Includes: Universal Adapter Fitting
• Special Information: For 30 mV Standing Pilot Systems, Stainless Steel Element
• Compatible with Brand: Honeywell, Johnson, Robershaw, White-Rodgers
• Process Connection Type: Threaded
• Compatible with Series: 1980, H06E, K19, Q34A
• Series: H06 Series
• Maximum Cold Junction Temperature: 800 Degrees F
• For Pilot System Type: Standing Pilot
• Maximum Hot Junction Temperature: 1,450 Degrees F
• Output: 18 to 30mV
• Element Material: Stainless Steel
• For Fuel Type: LP, Natural Gas
• End Style: Double Lead Thread
• Voltage Rating: 22 to 30 mV
• Connection Type: Universal
• UNSPSC Code: 40101800
