White-Rodgers H06E036S1 Universal Thermocouple 36 inches Replacement H06E

WHITE-RODGERS
Brand: WHITE-RODGERS
SKU: H06E036S1
Availability: In Stock

Ships same day if ordered by 12 pm
$27.58
$27.58
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

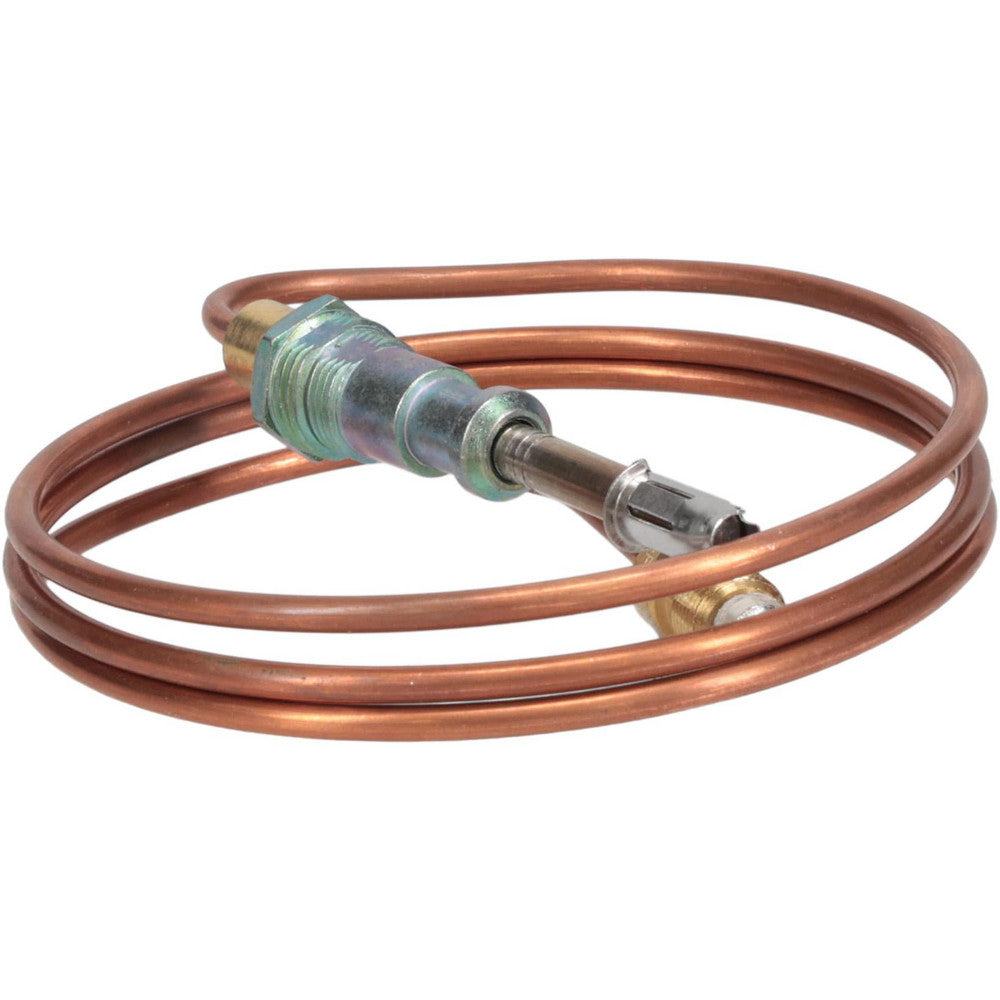

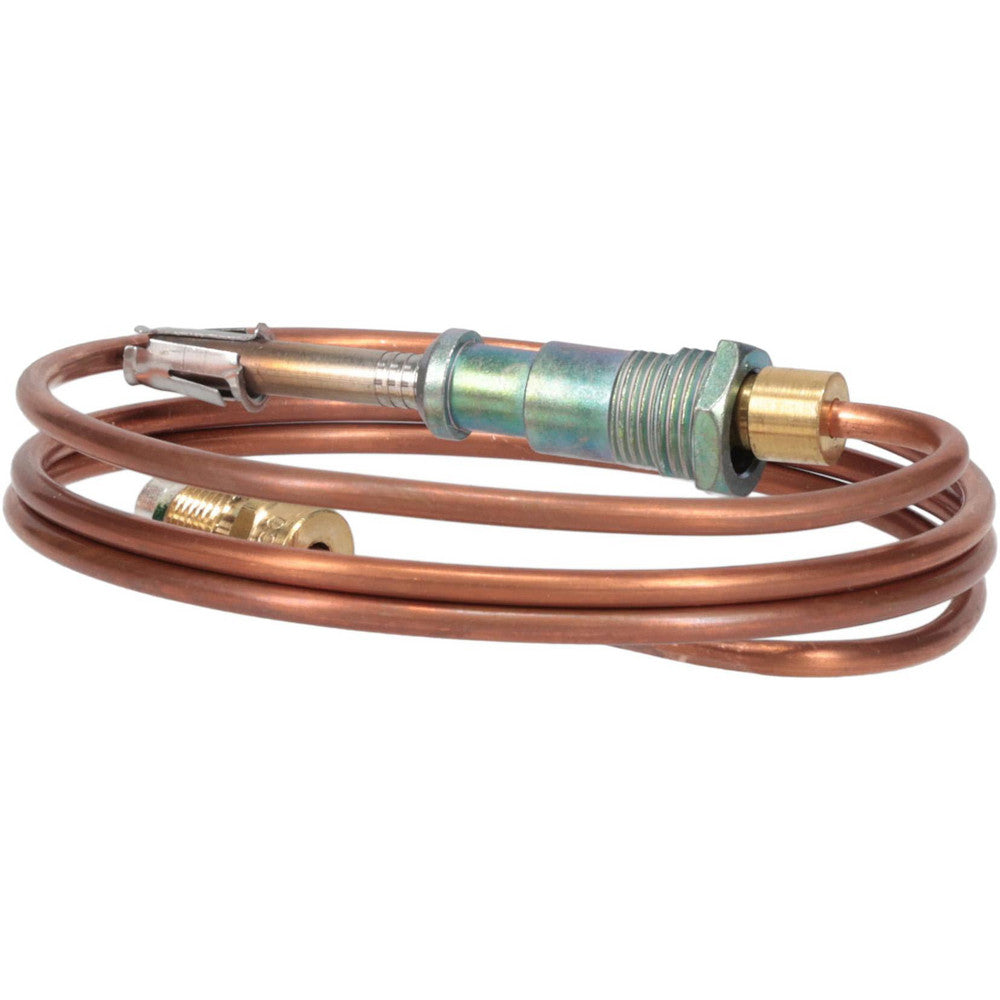

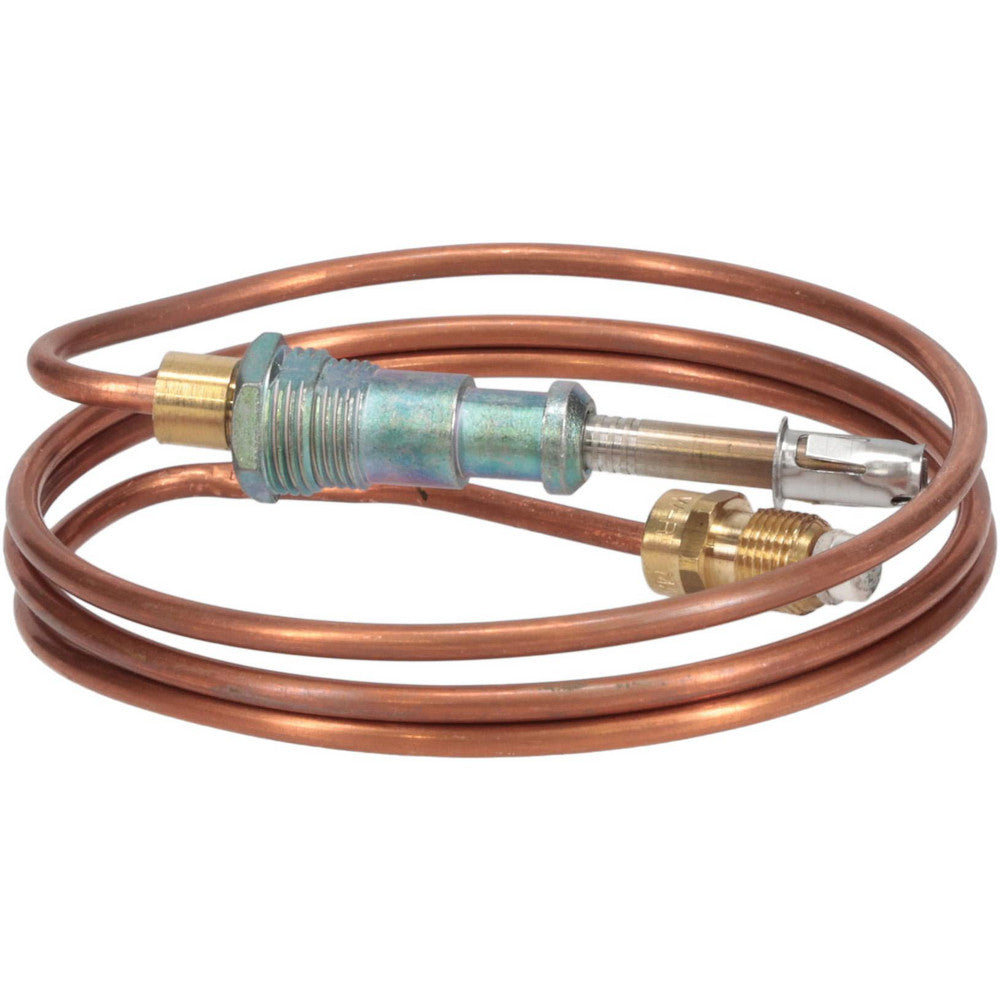

The WHITE-RODGERS H06E036S1 universal thermocouple features stainless steel element construction for long life. Universal adapter fittings are included for easy installation in the pilot burner. This thermocouple has a standard 11/32" double lead thread and replaces Honeywell Q34A, Johnson K19, Robertshaw 1980 and White-Rodgers H06E.

  • Stainless steel element construction for long thermocouple life
  • Universal adapter fittings included for easy installation of thermocouple in pilot burner
  • Standard thermocouple 11/32" double lead thread

Product Highlights

This universal thermocouple is easy to install and provides a long service life. It is suitable for use with LP and natural gas.

Product Information

Standard Information

  • Brand: WHITE-RODGERS
  • Manufacturer Part Number: H06E036S1
  • Country of Origin: Mexico
Technical Specifications
Manufacturer
White-Rodgers
Brand
Emerson
Model / MPN
H06E036S1
UPC
786710381041
MPN
H06E036S1
Number of Items
1.0
Overall Length
36 in
Prop 65
Yes
Lead Length
36 in
Probe Length
36 in
Material
Stainless Steel
Process Connection Size
11/32 in
Cable Length
36 in
Item
Replacement Thermocouple
Type
Standard Coaxial
Voltage
18 to 30 mV
Gas Type
LP/NG
Includes
Universal Adapter Fitting
Special Information
For 30 mV Standing Pilot Systems, Stainless Steel Element
Compatible with Brand
Honeywell, Johnson, Robershaw, White-Rodgers
Process Connection Type
Threaded
Compatible with Series
1980, H06E, K19, Q34A
Series
H06 Series
Maximum Cold Junction Temperature
800 Degrees F
For Pilot System Type
Standing Pilot
Maximum Hot Junction Temperature
1,450 Degrees F
Output
18 to 30mV
Element Material
Stainless Steel
For Fuel Type
LP, Natural Gas
End Style
Double Lead Thread
Voltage Rating
22 to 30 mV
Connection Type
Universal
UNSPSC Code
40101800
