White-Rodgers H06E030S1 Universal Thermocoupler 30 in REPLACEMENT Q34A

Product Description

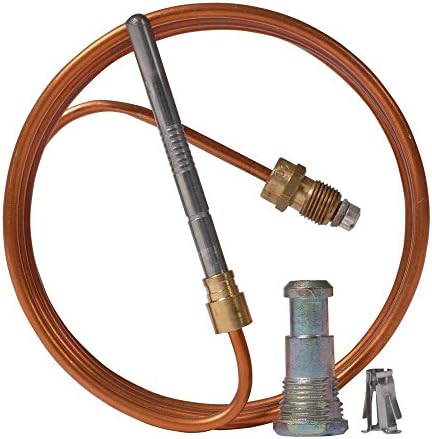

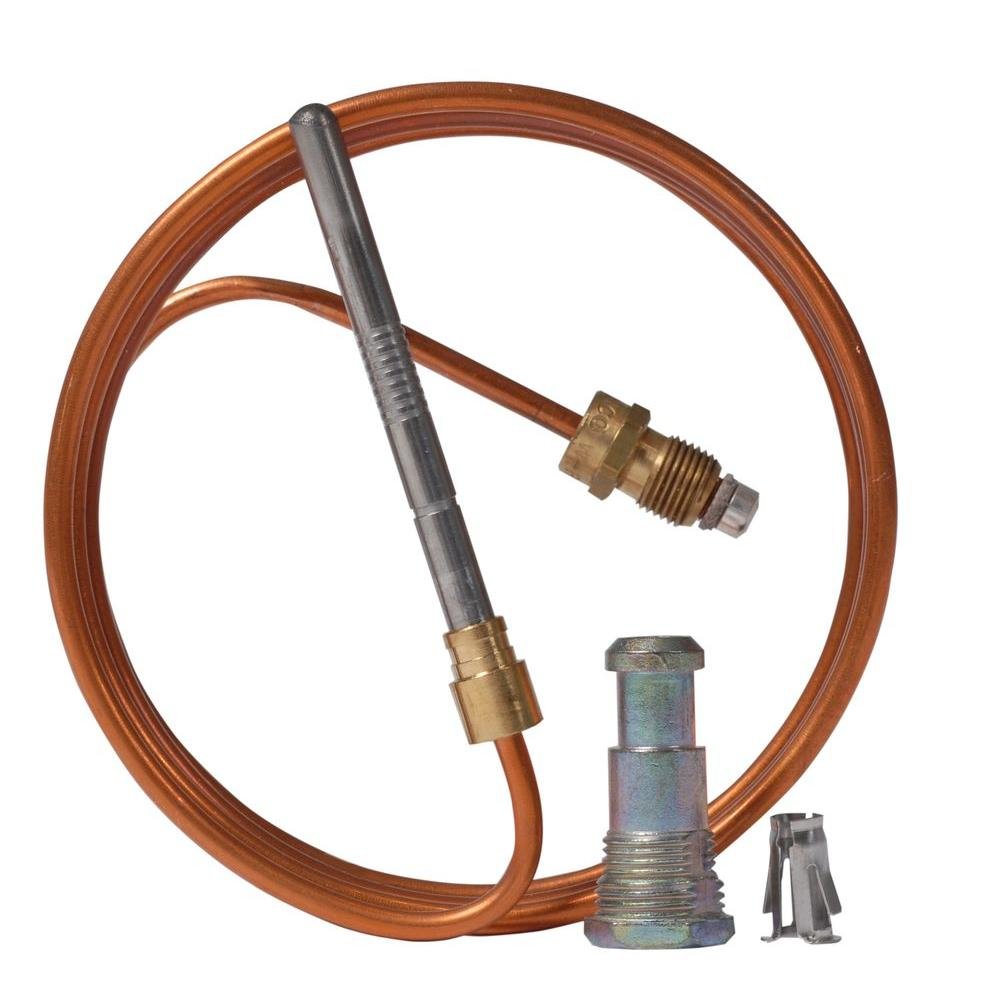

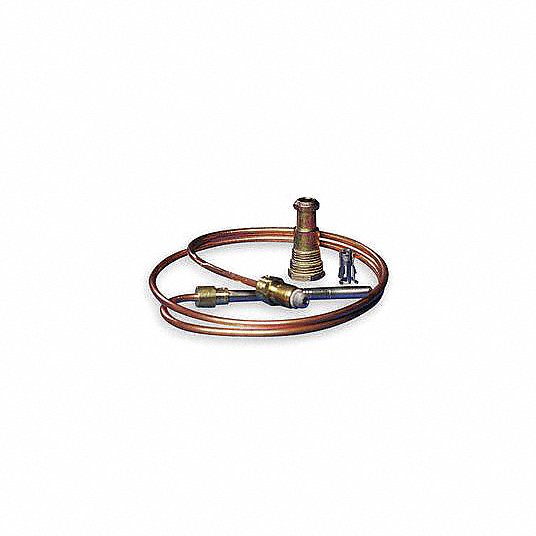

The WHITE-RODGERS H06E030S1 is a 30" universal replacement thermocouple designed for use with water heaters and heating devices that utilize a standing pilot. It generates a small electrical signal, up to 30 millivolts, used by the ignition control system to verify the pilot light or burner is lit.

• Universal adapter fittings included for replacing thermocouple in most types of pilot burners.
• Stainless steel element construction for prolonged thermocouple life.
• Standard coaxial thermocouple with 11/32" double lead thread.

Product Highlights

This universal thermocouple is compatible with LP and natural gas applications and replaces Honeywell Q34A, Johnson K19, Robertshaw 1980 and White-Rodgers H06E.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: H06E030S1
• Country of Origin: Mexico

Technical Specifications

• Brand: WHITE-RODGERS
• Manufacturer: White-Rodgers
• Model / MPN: H06E030S1
• Size: 30 Inch
• MPN: H06E030S1
• Controller Type: Flame Sensing
• Special Feature: Universal Replacement
• Specific Uses For Product: Heater
• Material Type: Stainless Steel
• Specification Met: Universal Replacement, 30 mV
• Product Type: Thermocouple
• For Pilot System Type: Standing Pilot
• For Fuel Type: LP; Natural Gas
• Cable Length: 30 in
• Overall Length: 30 in
• Element Material: Stainless Steel
• Output: 22 to 30mV
• Process Connection Type: Threaded
• Process Connection Size: 11/32 in
• Replacement for OEM Brand: Honeywell; Johnson; Robershaw; White-Rodgers
• Compatible with Series: 1980; H06E; K19; Q34A
• Maximum Hot Junction Temperature: 1,450 °F
• Maximum Cold Junction Temperature: 800 °F
• Includes: Universal Adapter Fitting
• Series: H06
• Voltage Rating: 22 to 30 mV
• End Style: Double Lead Thread
