Product Description

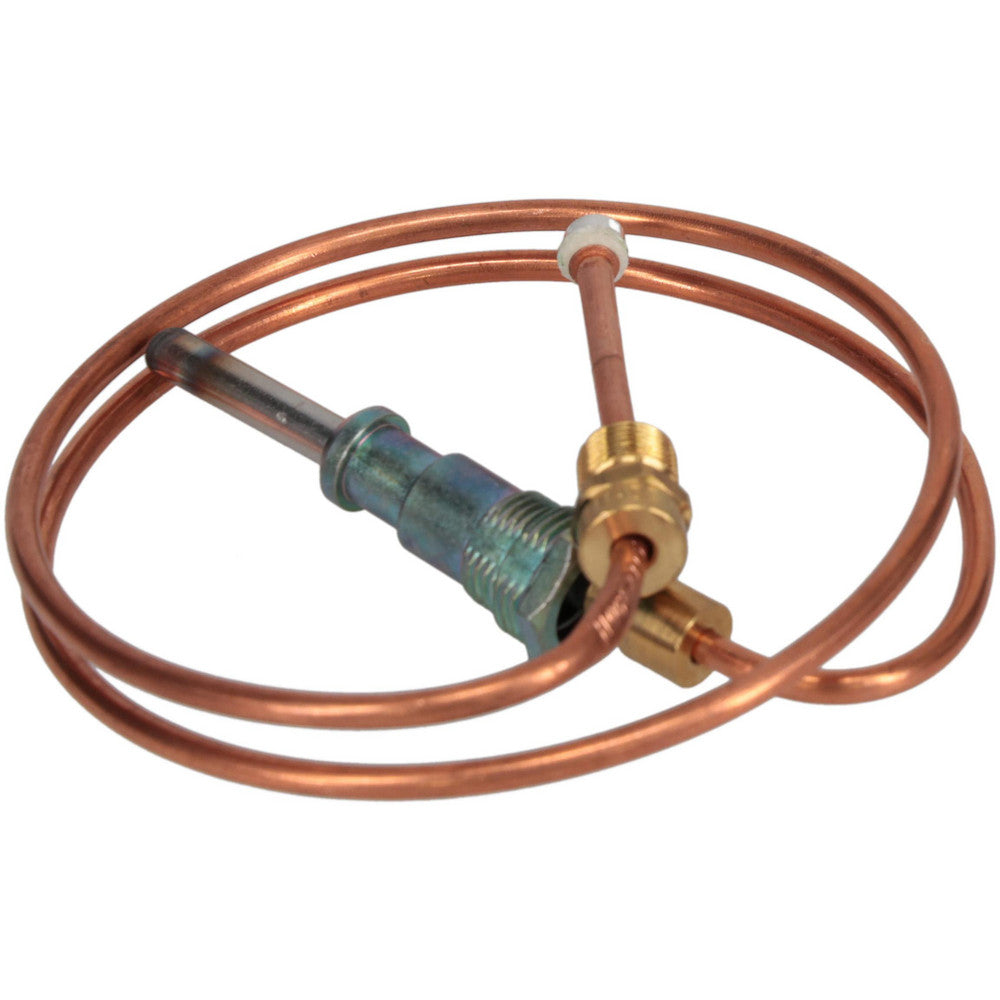

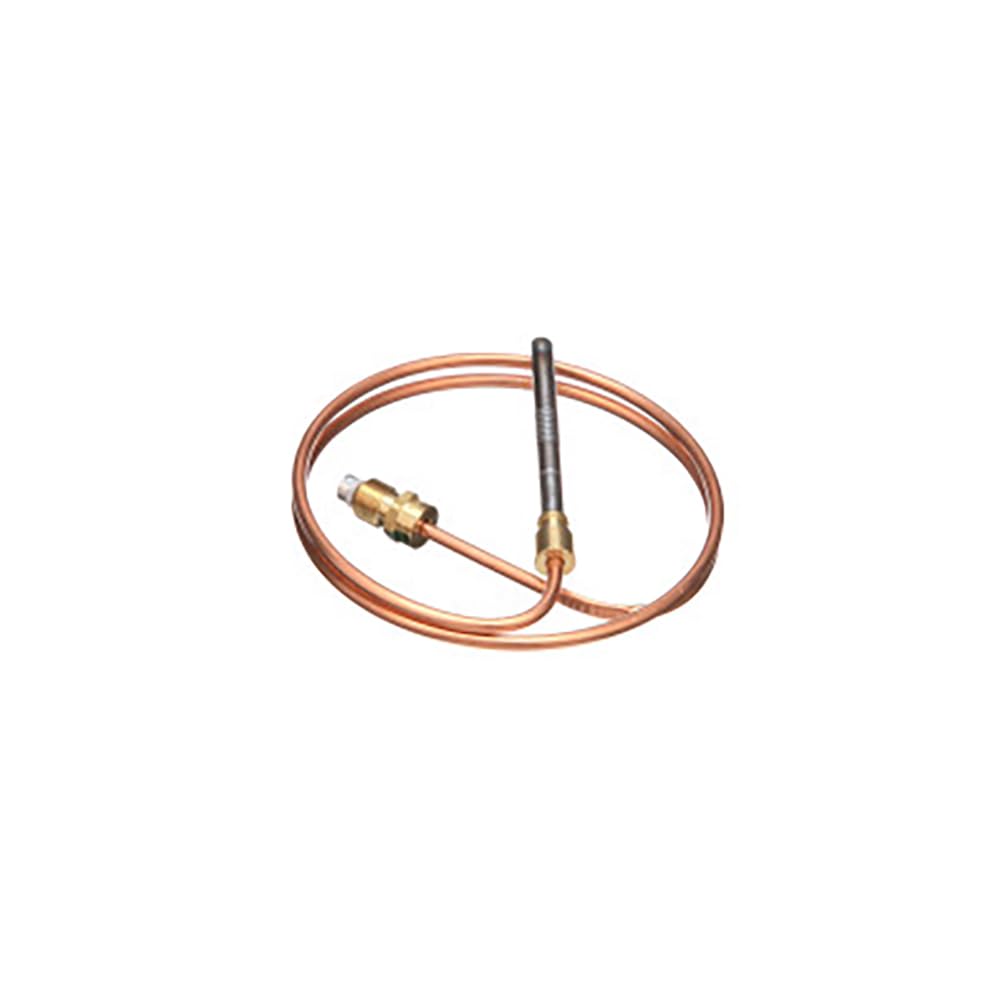

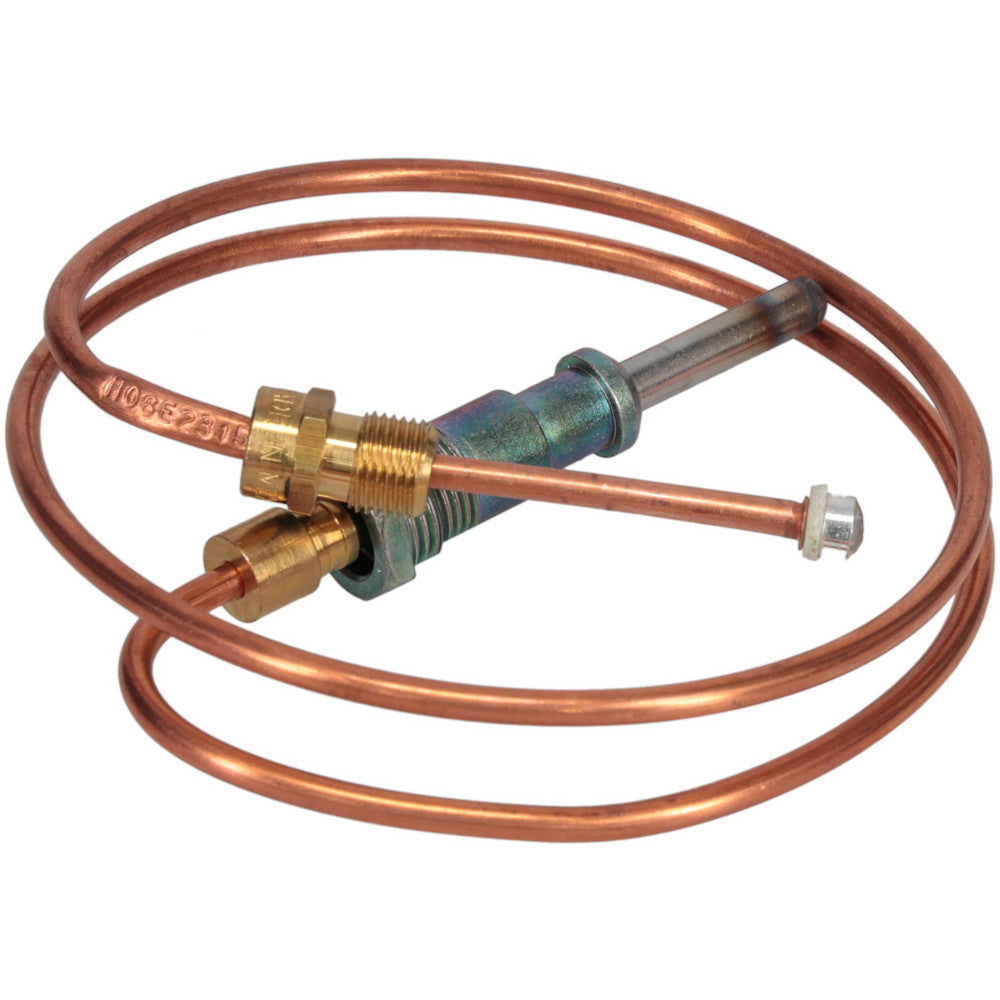

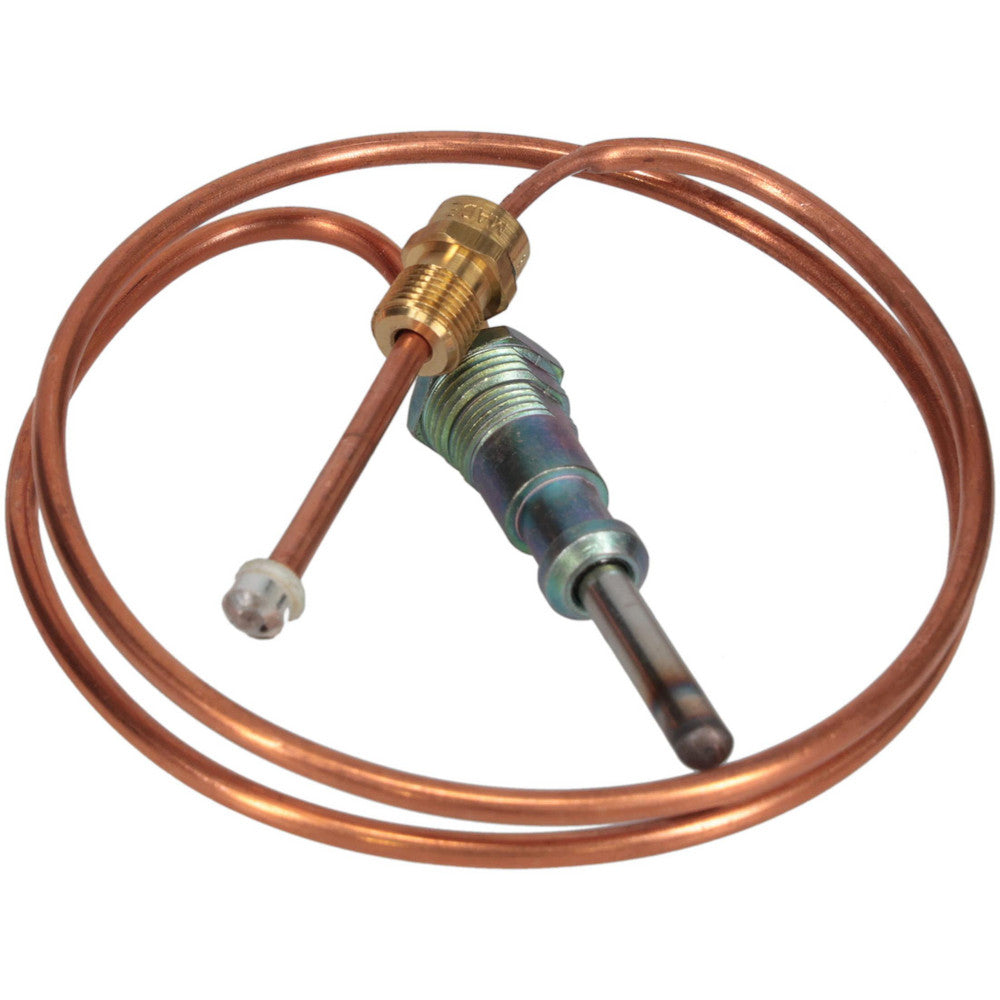

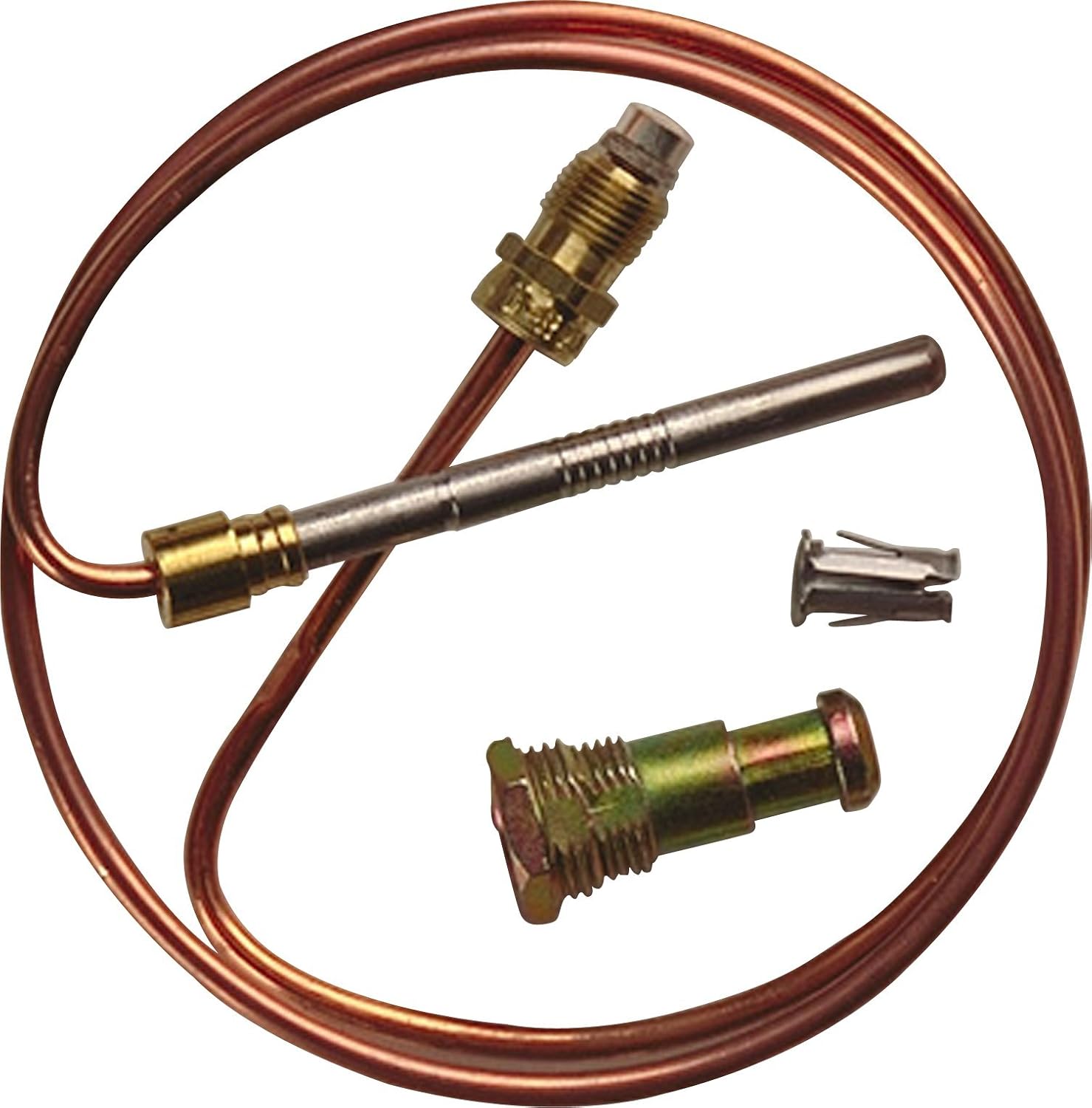

The White-Rodgers H06E024S1 universal thermocouple is a 24" replacement thermocouple for water heaters and heating devices with a standing pilot. It features a copper material for long-lasting use. Universal adapter fittings are included for replacing thermocouples in most types of pilot burners.
- Universal adapter fittings included for replacing thermocouple in most types of pilot burners
- Stainless steel element construction for prolonged thermocouple life
- Standard coaxial thermocouple 11/32" double lead thread
Product Highlights
This 24" universal thermocouple is suitable for both LP and natural gas applications and offers a direct, reliable replacement.
Product Information
Standard Information
-
Brand: WHITE-RODGERS
-
Manufacturer Part Number: H06E024S1
-
Country of Origin: Mexico
Technical Specifications
-
Material: Copper
-
Item Model Number: H06E024S1
-
Part Number: H06E024S1
-
Size: 24 Inch
-
Brand: White-Rodgers
-
Manufacturer: White-Rodgers
-
Model / MPN: H06E-24
-
MPN: H06E024S1
-
UPC: 786710380952
-
Lead Length: 24 in
-
Probe Length: 24 in
-
Rod Length: 24 in
-
Temperature Rating: 1450 deg F
-
Voltage Rating: 22 to 30 mV
-
Connection: 11/32 in. double lead thread
-
Energy Cut-Off (ECO) Safety: No
-
Family: H06E/H06F Series Universal Thermocouples
-
Length [in]: 24
-
Model Number: H06E-24
-
Product Family: H06E/H06F Series Universal Thermocouples
-
Product Length [in]: 24
-
Replacement Type: Universal Replacement
-
UPC-12: 786710380952
-
Voltage: 30 mV
-
Gas Type: LP/NG
-
Special Information: For 30 mV Standing Pilot Systems, Stainless Steel Element
-
Includes: Universal Adapter Fitting
-
For Pilot System Type: Standing Pilot
-
Maximum Hot Junction Temperature: 1,450 Degrees F
-
Element Material: Stainless Steel
-
For Fuel Type: LP, Natural Gas
-
Process Connection Type: Threaded
-
Maximum Cold Junction Temperature: 800 Degrees F
-
Series: H06
-
Output: 18 to 30mV
-
Process Connection Size: 11/32 in
-
Cable Length: 24 in
