White-rodgers f61-2663 Thermostat Wallplate Sensi 80 Series

Product Description

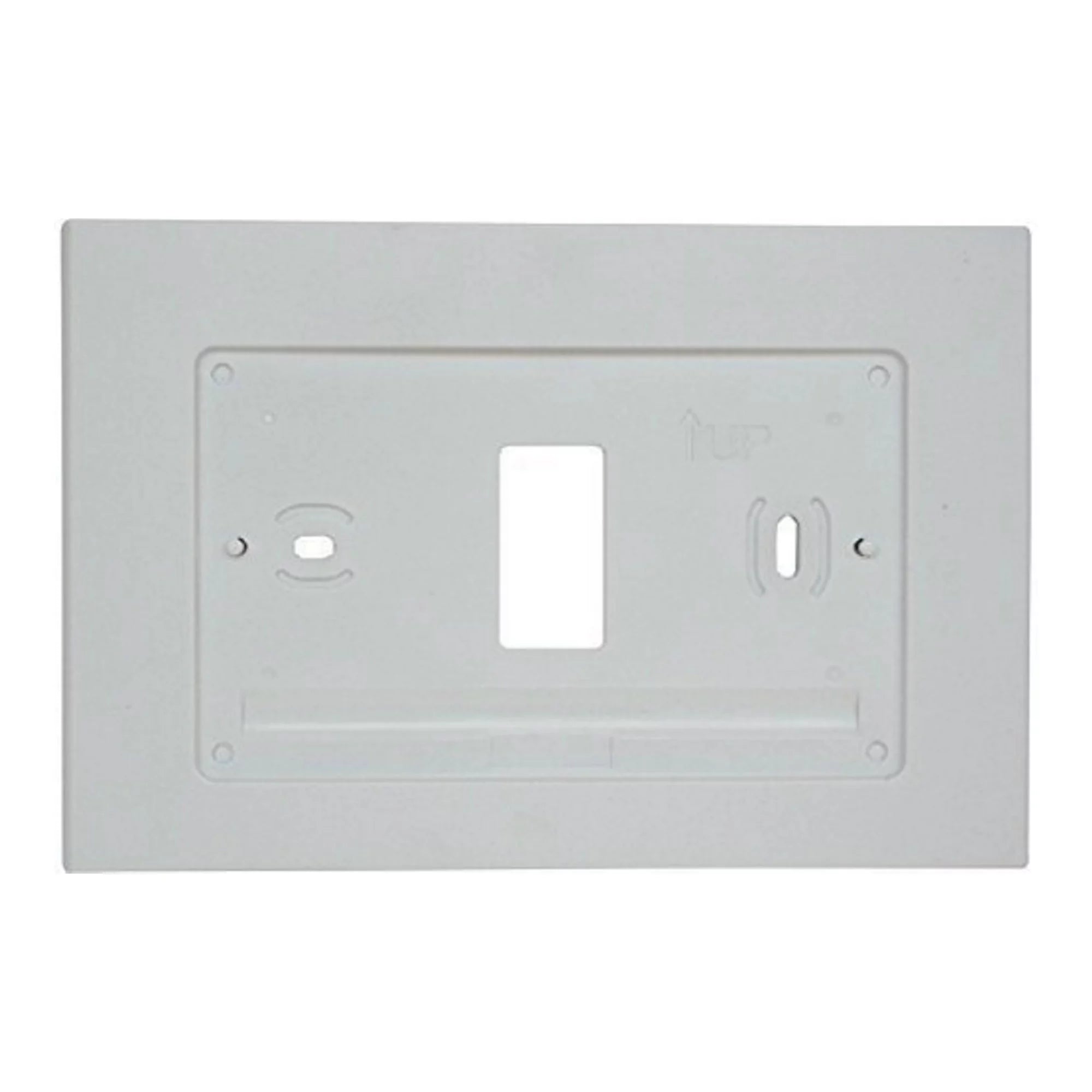

The WHITE-RODGERS f61-2663 is a replacement thermostat wallplate designed to provide a clean, finished appearance when mounting Sensi Wi-Fi and 80 Series thermostats to a wall surface. Measuring approximately 6.75 inches wide by 4.5 inches tall, this white wallplate covers standard wall openings and wiring cutouts with a low-profile depth of 0.32 inches. It installs with or without a horizontal junction box, giving technicians flexibility on both new installations and service calls where box placement varies. The part is manufactured in China and is intended for use by HVAC service professionals handling thermostat replacement or upgrade work.

This wallplate is used in residential and light commercial applications wherever the compatible Sensi or Emerson 80 Series thermostat is being installed. It is particularly useful when an existing wallplate is damaged, discolored, or undersized, and a fresh cover is needed to present a professional finish. Compatible model references are sourced directly from the manufacturer documentation included with this part.

Key Features

• Fits with or without a horizontal junction box for flexible installation
• Dimensions of 6.75 inches wide by 4.5 inches tall cover standard wall openings cleanly
• Low-profile depth of 0.32 inches sits flat against the wall surface
• White finish coordinates with standard residential and commercial wall finishes
• Contractor branding option available through the ContractorBranding program

Compatibility

Compatible with the Sensi Wi-Fi thermostat model 1F87U-42WF and Emerson 80 Series thermostats including 1F85U-42PR, 1F85U-42NP, 1F85U-22PR, 1F85U-22NP, 1F83H-21PR, 1F83H-21NP, 1F83C-11PR, and 1F83C-11NP.

Installation Notes

Installation is performed by a licensed HVAC technician as part of a thermostat replacement or upgrade. Always set the thermostat system switch to off and confirm low-voltage power is de-energized at the air handler or furnace before removing the existing thermostat and wallplate. The wallplate mounts directly to the wall or over a horizontal junction box using the hardware provided with the thermostat assembly. Verify the wall surface is clean and level before securing to ensure proper fit and appearance.

Technical Specifications

• Width: 6.6875 inches
• Height: 4.464 inches
• Depth: 0.32 inches
• Color: White
• Product Family: Thermostat Wallplates
• Country of Origin: China

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: f61-2663
