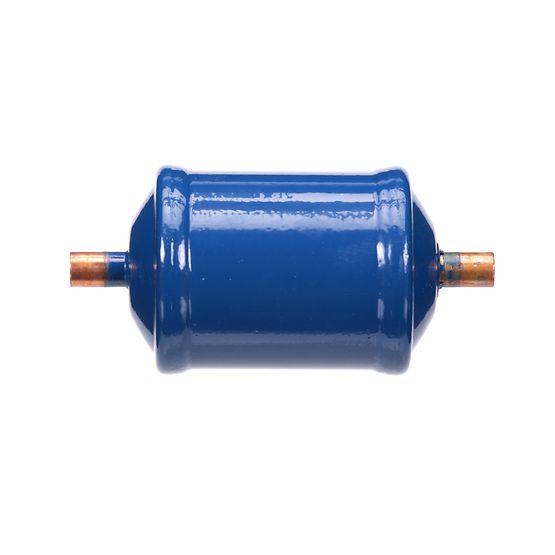

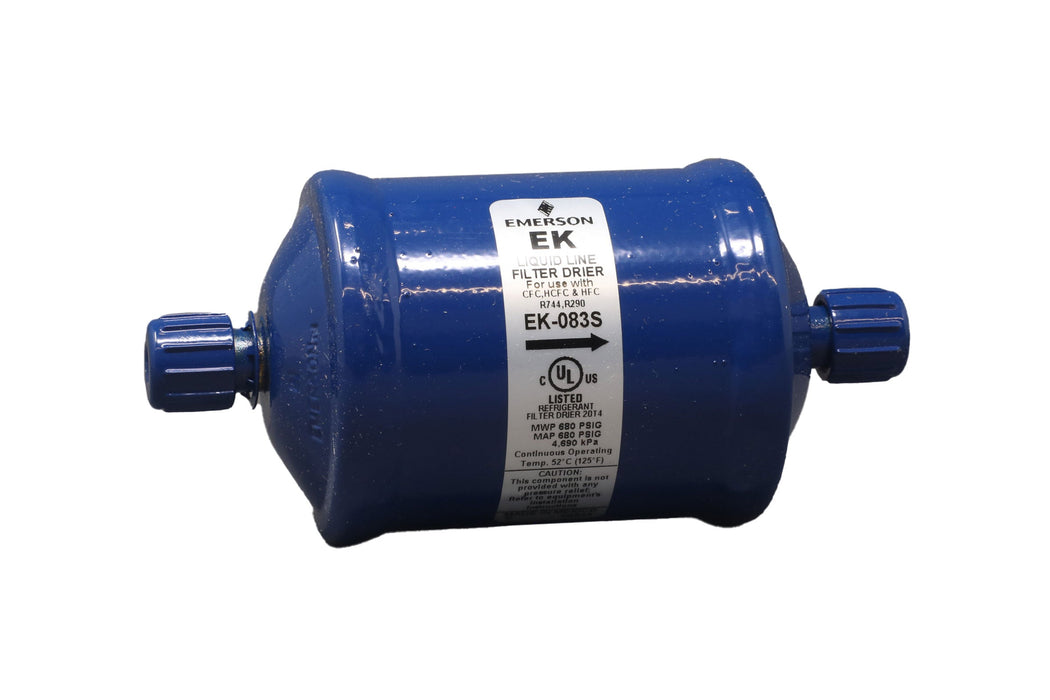

White-Rodgers EK083S Liquid Line Filter Drier 8 Cube 3/8 inches OD

Product Description

The WHITE-RODGERS EK083S liquid line filter drier is a premium compacted bead filter drier with a 20 micron outlet pad for maximum filtration. This universal replacement is compatible with CFC, HCFC, and HFC refrigerants, including R-12, R-134a, R-22, R-404A, R-407C, R-410A, R-500, R-502, and R-507. It features solid copper connections for easy installation.

• Premium compacted bead filter drier
• 20 micron outlet pad for maximum filtration
• High moisture and acid removal capacity

Product Highlights

The EK083S filter drier offers high moisture and acid removal, solid copper connections and is approved for POE oils with Copeland compressors.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: EK083S

Technical Specifications

• Unit Size: 8 cubic inches
• Inlet Connection Size: 3/8” ODF
• Outlet Connection Size: 3/8” ODF
• Access Type: None
• Desiccant Blend: Blend optimized for high water capacity and acid capacity
• Filtration: 20 microns
• Maximum Working Pressure: 680 psig
• Approvals: UL/CUL File Number SA3124
