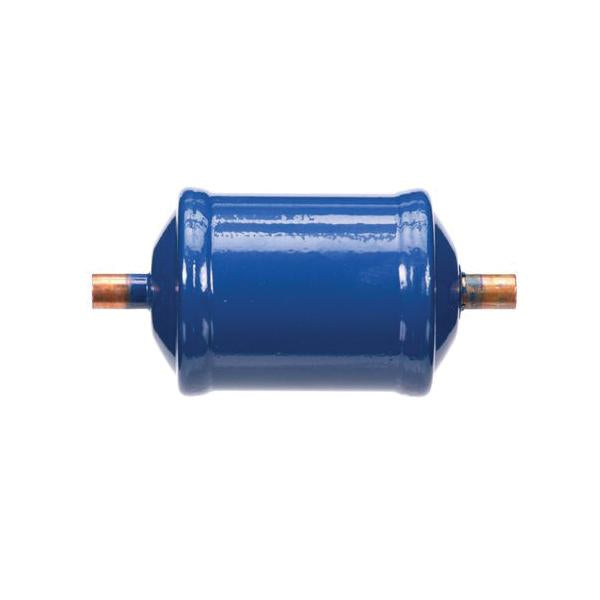

White-Rodgers EK Liquid Line Filter Drier 1/4 in

Product Description

The White-Rodgers EK Liquid Line filter drier is designed for high filtration efficiency. This product is compatible with CFC, HCFC, and HFC refrigerants including R-12, R-134A, R-22, R-404A, R-407C, R-410A, R-500, R-502, and R-507. It features a compact design with a twenty micron outlet pad ensuring effective moisture and acid removal.

• Filtration improves the effectiveness of the desiccant surface area.
• High moisture and acid removal capabilities.
• Durable steel construction with corrosion-resistant epoxy powder finish.

Product Highlights

The EK Liquid Line filter drier ensures optimal performance by providing effective moisture and acid filtration.

Product Information

Standard Information

• Brand: White-Rodgers
• Model: EK 162

Technical Specifications

• Connection Type: SAE Flared
• Finish: Epoxy Powder Painted
• Material: Steel
• Micron Rating: 20 um
• Pressure Rating: 680 psig
• Refrigerant Type: R-12, R-134A, R-22, R-404A, R-407C, R-410A, R-500, R-502, R-507
• Series: EK Series
• Size: 1/4 in
• Unit Size: 16 cu-in
• Manufacturer Part Number: EK 083S
