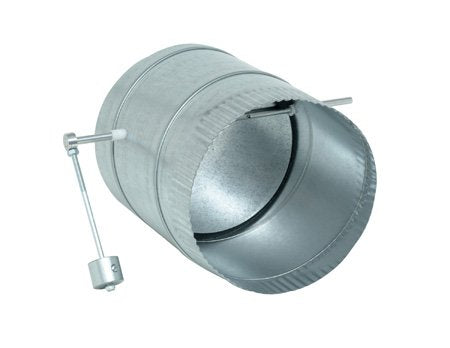

White-Rodgers CSPRD12 Static Pressure Regulating Damper 12 inches

Product Description

The WHITE-RODGERS CSPRD12 is a 12-inch static pressure regulating damper designed to reduce excess air pressure in systems as zones close. This barometric relief zone damper maintains constant pressure within the duct system, automatically compensating by opening or closing as needed. Constructed from 22 gauge galvanized steel, it operates between 0 to 180 degrees F and has an airflow of 1600 CFM.

• Reduces excess air pressure in the system
• Maintains constant pressure in the duct system
• Automatically compensates pressure by opening or closing as needed

Product Highlights

The CSPRD12 damper maintains constant pressure in duct systems, automatically compensating for pressure changes. Features a galvanized steel construction and an airflow of 1600 CFM.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: CSPRD12

Technical Specifications

• Construction: 22 gauge galvanized steel
• Operating Range: 0 to 180 degree F
• Airflow: 1600 CFM
