White-Rodgers 90-370 Fan Relay Heavy Duty 24 Volts

Product Description

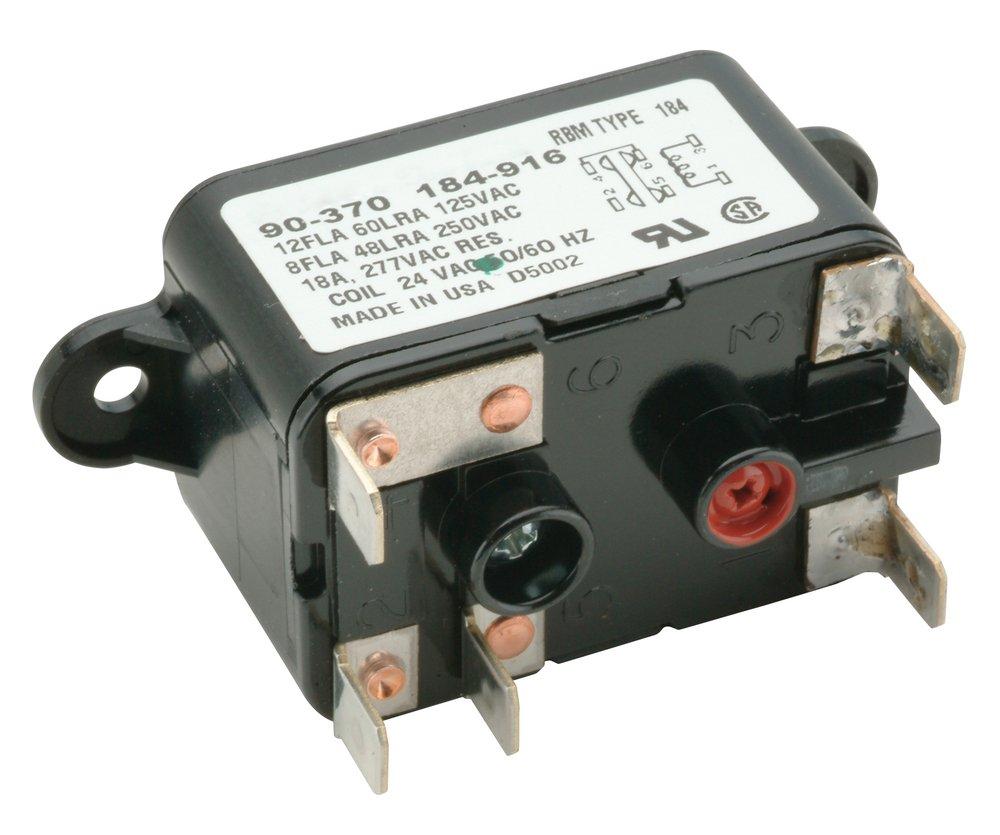

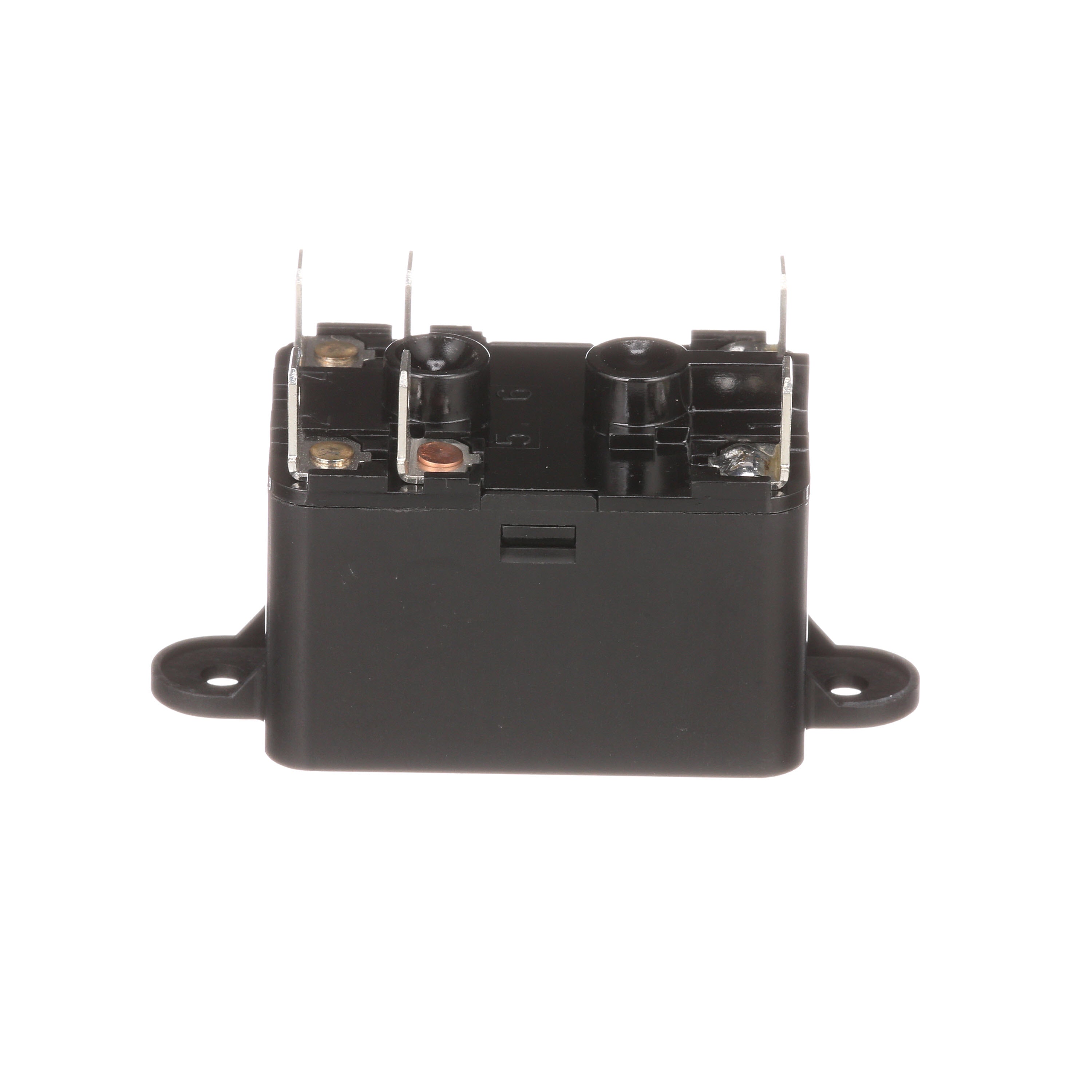

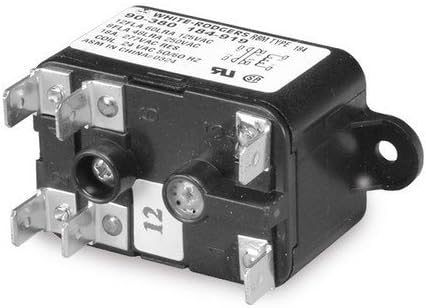

The WHITE-RODGERS 90-370 is a heavy-duty fan relay. This relay features a compact, totally enclosed design with an isolated coil and mounting bracket. It is designed for heating and cooling applications and general switching. The relay operates in any position and is quiet, reliable, and economical.

• Heavy Duty
• Compact, totally enclosed design with isolated coil and mounting bracket
• For heating and cooling applications and general switching

Product Highlights

This heavy-duty fan relay is designed for various applications, including heating, cooling, and general switching needs.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 90-370
• Country of Origin: United States

Technical Specifications

• Coil Voltage: 24 Volts
• Operation Mode: Automatic
• Included Components: White Rodgers 90-370 Fan Relay 24 Volt
• Maximum Switching Voltage: 24 Volts
• Item Model Number: 90-370
• Part Number: 90-370
• Application: Heating and cooling applications and general switching
• Switching: SPDT
• Relay Type: RBM type 184
• Coil: 24 Vac 50/60 Hz
• Coil Data: 77 Ohms Dc Resistance 125 Ma
• Type: 184
• Switch: Spdt
• Coil Power: 3 VA Nominal, 4 VA Inrush
• Mounting Type: Universal
• Catalog Number: 90-370
• Contact Rating: Inductive: 12 amp Continuous, 60 amp Inrush at 125 V ac, 8 amp Continuous, 48 amp Inrush at 250 V ac; Resistive: 18 amp Continuous at 277 V ac
• Current Rating: 125 mA
• Number Of Pins: 5
• Voltage Rating: 250 V
• Coil Resistance: 77 ohm
• Connection Type: 1/4 in Quick Connect
• Electrical Life: 100000 cycles
• Number Of Poles: 1
• Specifications Met: UL E12139, CSA LR13360
• Switch Configuration: SPDT
• Maximum Operating Temperature: 150 °C
• Minimum Operating Temperature: -40 deg F
• Width: 1.25 in
• Height: 1.5 in
• Length: 2.67 in
• Hz: 50/60
• Contact Form: Spdt
• Item [Specifications]: Magnetic Relay
• Type [Specifications]: Enclosed Fan Relay (Heavy-Duty)
• Includes [Specifications]: Quick Connect Push On Terminals and Plastic Mounting Tabs
• Mounting [Specifications]: Universal
• Coil Volts [Specifications]: 24
• Application [Specifications]: For Switching Single or Two-speed Fan Motors, Solenoids, Relays, Resistive Loads and other General-purpose Switching
• Depth (In.) [Specifications]: 2.67 in
• Switch Type [Specifications]: SPDT
• Width (In.) [Specifications]: 1.25 in
• Height (In.) [Specifications]: 1.5 in
• Agency Compliance [Specifications]: UL
• Resistive Amps @ 120V [Specifications]: 18.0
• Resistive Amps @ 240V [Specifications]: 18.0
• Resistive Amps @ 277V [Specifications]: 18.0
• Full Load Amps @ 120VAC [Specifications]: 12
• Full Load Amps @ 240VAC [Specifications]: 8
• Manufacturer: White-Rodgers
• Contact Current Rating: 8 A
• Control Voltage: 24 V
• Manufacturer Part Number: 90-370
• Panel Mount: Panel Mount
• Terminal Type: Quick Connect
• UPC Code: 786710028335
