Product Description

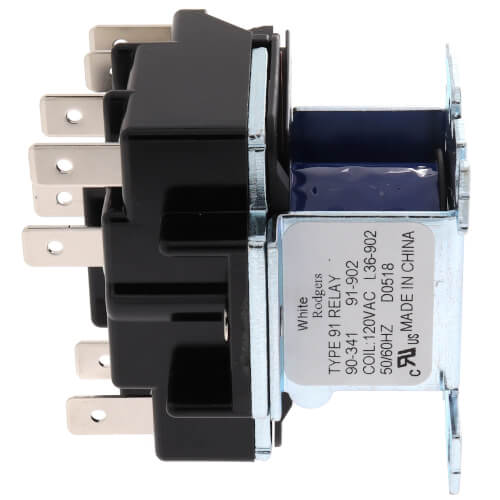

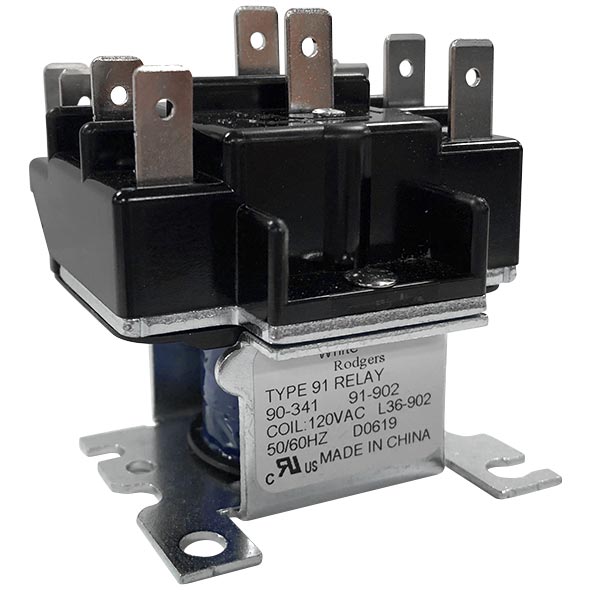

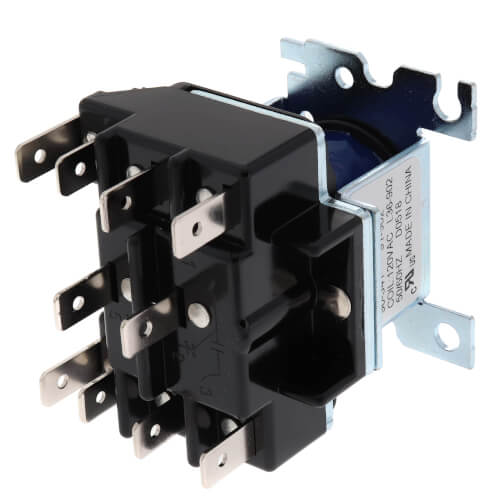

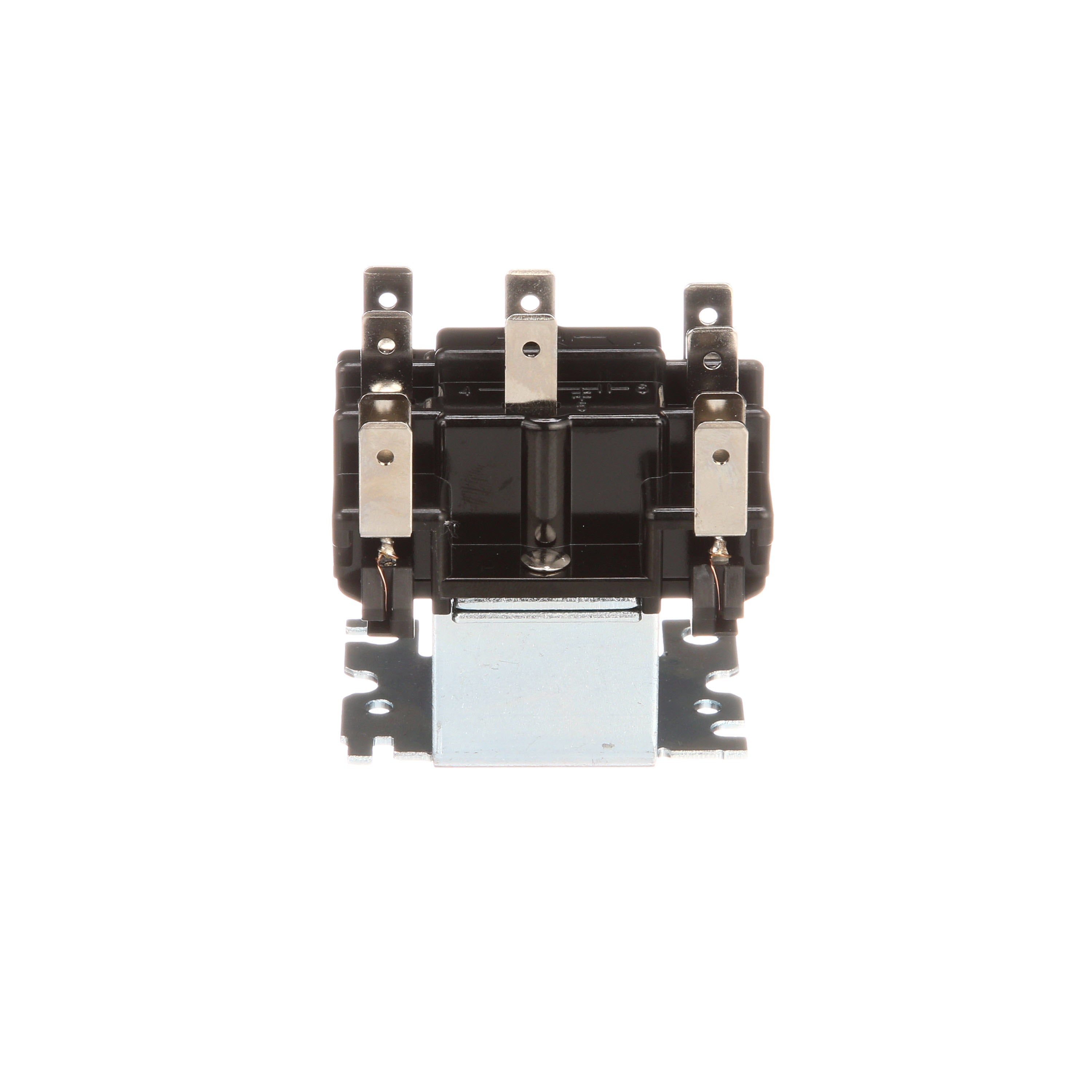

The White-Rodgers 90-341 is a 2 pole switching relay. This relay features a coil voltage of 120 Volts and a contact current rating of 35 Amps, with a maximum switching voltage of 240 Volts. It is suited for use in vending machines, appliances, heating and air conditioning applications and general purpose switching.
- Coil Voltage: 120 Volts
- Contact Current Rating: 35 Amps
- Maximum Switching Voltage: 240 Volts
Product Highlights
This White-Rodgers switching relay is a 2 pole relay with a coil voltage of 120V and a contact current rating of 35A.
Product Information
Standard Information
-
Brand: WHITE-RODGERS
-
Manufacturer Part Number: 90-341
-
Country of Origin: CN
Technical Specifications
-
Coil Voltage: 115/120 VAC
-
Contact Current Rating: 35 Amps
-
Maximum Switching Voltage: 240 Volts
-
Item Model Number: 90-341
-
Part Number: N/A
-
Manufacturer: WHITE-RODGERS
-
Contact: DPDT
-
Type: Relay
-
Poles: Two Pole
-
Throw: Double Throw
-
Product Type: RELAY
-
Model / MPN: 90-341
-
Contact Form: DPDT
-

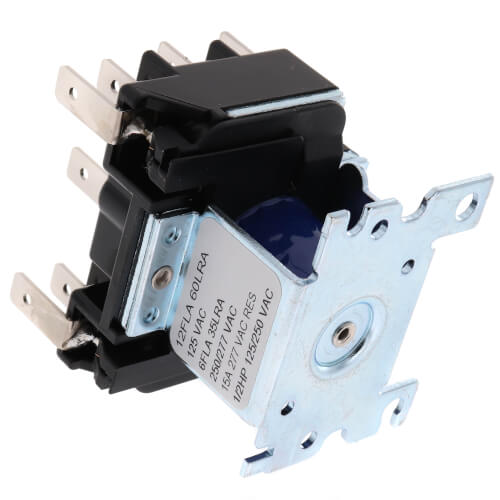

Contact Rating: 12 FLA/60 LRA at 125 VAC, 6 FLA/35 LRA at 250/277 VAC, 15 A at 277 VAC RES, 1/2HP 125/250 VAC
-
Country of Origin: CN
-
Frequency Rating: 50/60 Hz
-
Mfg Standards/Approvals: CSA LR13360|UL E12139
-
Terminal Type: Quick-Connect
-
HP: 1/2 hp
-
Item: Magnetic Relay
-
AC Switching: AC Switching
-
Sealing: Semi-Enclosed
-
Mounting: Universal
-
Standards: CSA File No. LR13360, UL E12139
-
Body Depth: 2.08 in
-
Body Width: 2.11 in
-
Body Height: 1.86 in
-
Application: Air Conditioning, Heating/Ventilating Control System, Motor Starting, Heating Element Operation and Power Supply Control
-
For Use With: General Purpose Switching, HVAC Equipment, Vending Machines and Appliances
-
Input Voltage: 115/120V AC
-
Mounting Style: Universal
-
Coil Voltage Type: AC
-
Operating Current: 15 A at 277V AC (Resistive Load)
-
Power Consumption: 9.5 VA
-
Horsepower @ 120V AC: 1/2 hp
-
Horsepower @ 240V AC: 1/2 hp
-
Relay Mounting Style: Surface
-
Electrical Connection: Quick-Connect
-
Full Load Amps @ 277V: 6.0
-
Resistive Amps @ 277V: 15.0
-
Full Load Amps @ 120VAC: 12
-
Full Load Amps @ 240VAC: 6
-
Environmental Protection: Enclosed
-
Locked Rotor Amps @ 120V: 60
-
Locked Rotor Amps @ 240V: 35
-
Electrical Connection Type: Tab
-
Maximum Operating Temperature: 130 Degrees F
-
Minimum Operating Temperature: -40 Degrees F
-
Electrical Operating Durability: 100,000
-
Mechanical Operating Durability: 1,000,000
-
Compatible with Grainger Part Number: 1N182, 2E852, 3TZ56
-
Compatible with Manufacturer Model Number: 90-112, 90-113, 90-118E, 90-119
-
UPC: 786710070686
-
Coil Power: 9.5 VA Nominal, 22 VA Inrush
-
Mounting Type: Universal
-
Catalog Number: 90-341
-
Electrical Life: 1000000 cycles
-
Number Of Poles: 2
-
Specifications Met: UL E12139, CSA LR13360
-
Switch Configuration: DPDT
-
Temperature Range (F): -40°F to 130°F
-
Hertz: 50
60
-
DC Resistance: 420 ohms
-
Duty: Continuous
-
Electric Connection: 1/4" Quick-Connect Terminals
-
Manufacturer #: 90-341
-
Parts Town #: WHRD90-341
-
Units: Each
-
Enclosure Type: Semi-Enclosed
-
Manufacturer Name: Emerson Electric
-
Temperature Rating: -40 to 130 deg F
-
Brand: White-Rodgers
-
MPN: 90-341
