Product Description

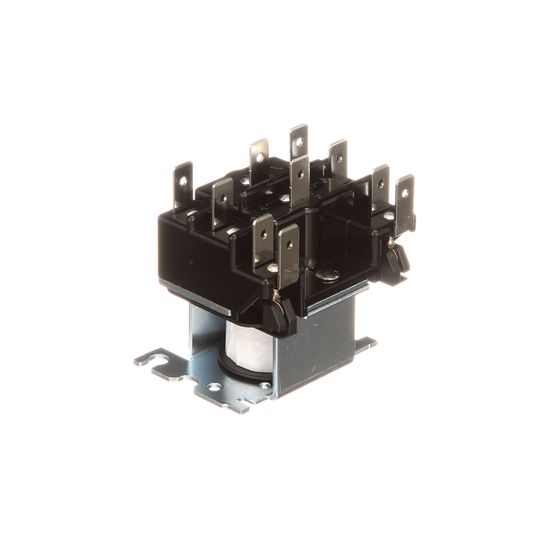

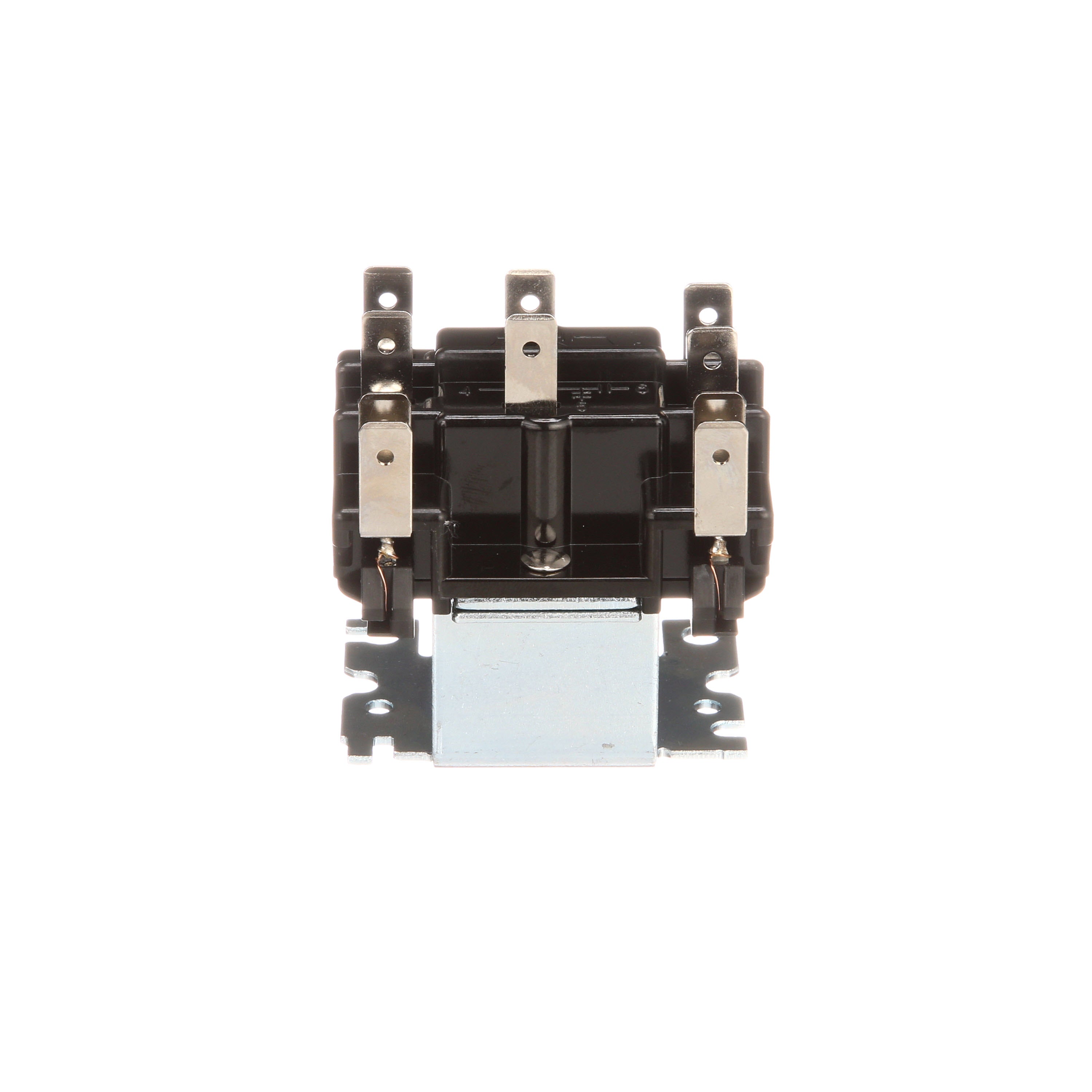

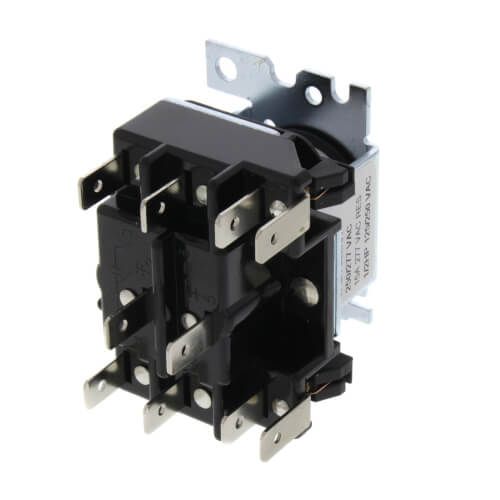

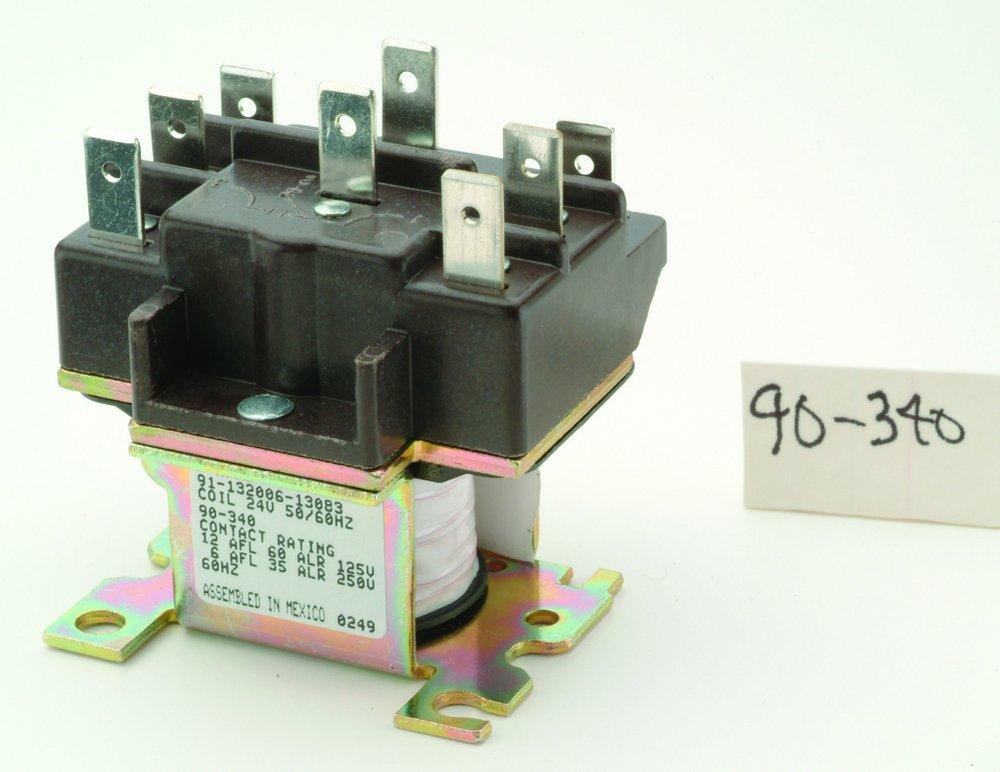

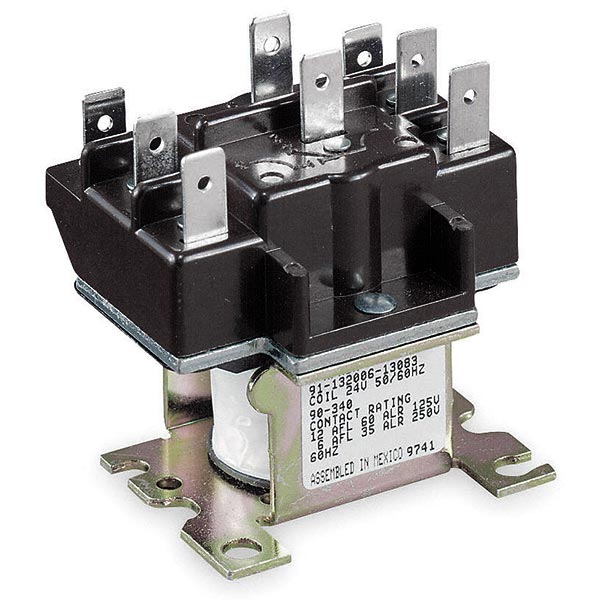

The WHITE-RODGERS 90-340 is a replacement relay with a DPDT contact and a 24 VAC coil. This relay is designed for use in applications such as vending machines, appliances, and HVAC systems. It features two sets of power-rated contacts and a 17-1/2 ohm DC resistance. Operates at 9.5 VA/22 VA.
- 2 sets of power rated contacts
- 17-1/2 ohm DC resistance
- 9.5 VA/22 VA
Product Highlights
Replacement relay with DPDT contact, 24 VAC coil, and 334 mA amperage rating. Ideal for HVAC, appliances, and general switching applications.
Product Information
Standard Information
-
Brand: WHITE-RODGERS
-
Manufacturer Part Number: 90-340
-
Country of Origin: CN
Technical Specifications
-
Amperage Rating: 334 mA
-
Coil Voltage: 24 VAC
-
Contact Form: DPDT
-
Contact Rating: 120/240 VAC
-
Frequency Rating: 50/60 Hz
-
Mfg Standards/Approvals: UL E73641
-
HP: 1/2 hp
-
Item: Magnetic Relay
-
Type: AC Switching
-
Sealing: Semi-Enclosed
-
Mounting: Universal
-
Standards: CSA File No. LR13360, UL E12139
-
Body Depth: 2.08 in
-
Body Width: 2.11 in
-
Coil Volts: 24
-
Application: Air Conditioning, Heating/Ventilating Control System, Motor Starting, Heating Element Operation and Power Supply Control
-
Body Height: 1.86 in
-
Depth (In.): 1 7/8 in
-
Motor Rated: Yes
-
Switch Type: DPDT
-
Width (In.): 2 1/8 in
-
For Use With: General Purpose Switching, HVAC Equipment, Vending Machines and Appliances
-
Height (In.): 2 1/4 in
-
Input Voltage: 24V AC
-
Overall Depth: 2.08 in
-
Number of Pins: 6.0
-
Coil Resistance: 17.5 ohm
-
Agency Compliance: UL
-
Coil Voltage Type: AC
-
Operating Current: 15 A at 277V AC (Resistive Load)
-
Power Consumption: 9.5 VA
-
Horsepower @ 120V AC: 1/2 hp
-
Horsepower @ 240V AC: 1/2 hp
-
Relay Mounting Style: Surface
-
Electrical Connection: Quick-Connect
-
Full Load Amps @ 277V: 6.0
-
Resistive Amps @ 277V: 15.0
-
Full Load Amps @ 120VAC: 12
-
Full Load Amps @ 240VAC: 6
-
Environmental Protection: Enclosed
-
Locked Rotor Amps @ 120V: 60
-
Locked Rotor Amps @ 240V: 35
-
Electrical Connection Type: Tab
-
Maximum Operating Temperature: 130 Degrees F
-
Minimum Operating Temperature: -40 Degrees F
-
Electrical Operating Durability: 100,000
-
Mechanical Operating Durability: 1,000,000
-
Terminal Type: Quick-Connect
-
Enclosure Type: Semi-Enclosed
-
Number of Poles: 2
-
Manufacturer Name: Emerson Electric
-
Temperature Rating: -40 to 130 deg F
-
Coils, Operate: 85% of nominal coil voltage; 110% maximum safe operate
-
Coils, Duty Cycle: Continuous
-
Approvals: U.L. file number E12139C.S.A. file number LR13360
