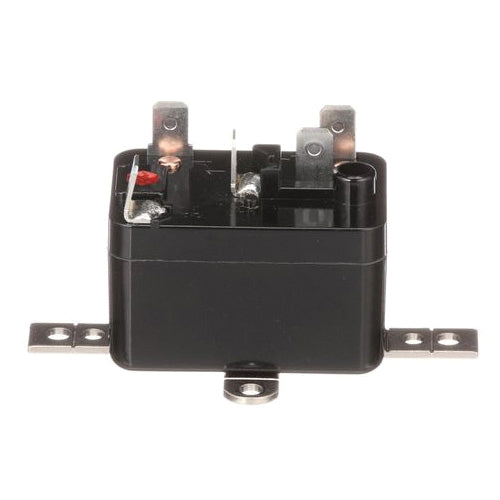

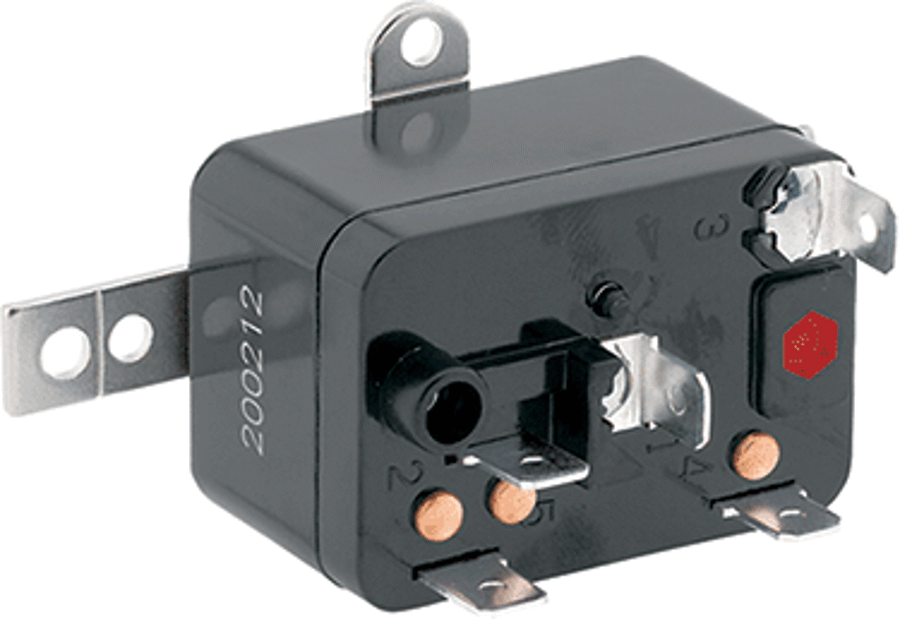

White-Rodgers 90-295Q Type 84 Fan Relay, SPDT Contact, 208/240 VAC Coil

Product Description

The White-Rodgers 90-295Q Type 84 Fan Relay provides reliable switching for HVAC systems. This fan relay, by Emerson Electric, is designed to control single or dual-speed fan motors, solenoids, and other general switching applications. Its 208/240 VAC coil and SPDT contact form ensure efficient and quiet operation.

• Compact, totally enclosed design
• Quiet and reliable performance
• General purpose switching for HVAC systems

Product Highlights

This relay is suitable for switching fan motors, solenoids, and resistive loads in various HVAC systems.

Product Information

Standard Information

• Brand: White-Rodgers
• Manufacturer: Emerson Electric

Technical Specifications

• Type: Type 84
• Coil Voltage: 208/240 VAC
• Contact Form: SPDT
• Accessory Type: Fan Relay
• Frequency Rating: 50/60 Hz
• Manufacturer Name: Emerson Electric
• Resistive Amps at 120V: 16
• Full Load Amps at 120V: 8
• Resistive Amps at 240V: 16
• Full Load Amps at 240V: 8
• Resistive Amps at 277V: 6

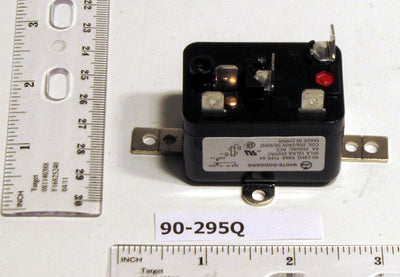

• Height: 2.25 inches
• Width: 2.125 inches
• Depth: 1.875 inches
• Mounting: Universal
• Electric Connection: 1/4 inch Quick-Connect Terminals
• Temperature Range: -40°F to 150°F
• DC Resistance: 7000 ohms
• Nominal VA: 3
• Inrush VA: 4
• Weight: 0.19 lbs
