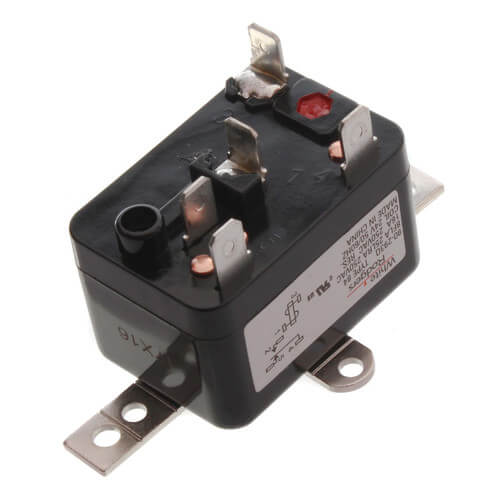

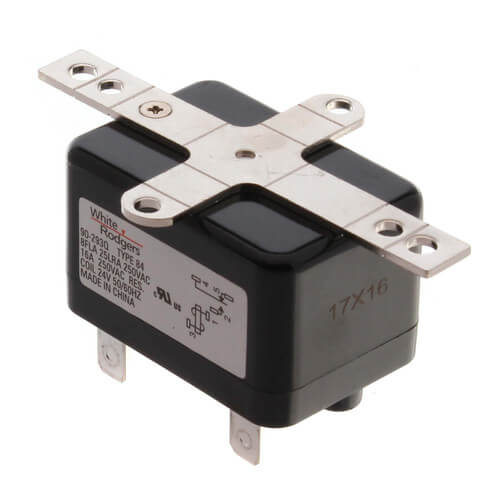

White-Rodgers 90-293QS1 Fan Relay 24 VAC SPDT

Product Description

The White-Rodgers 90-293QS1 is a fan relay used to switch single or two-speed fan motors, solenoids, relays, and resistive loads. It operates on a twenty-four VAC coil and features single pole double throw (SPDT) contacts. The relay has the following coil specifications: ninety Ohms DC resistance, one hundred twenty-five milliamps nominal, three VA nominal, and four VA inrush. This relay is ideal for both heating and cooling applications as well as general purpose switching.

• Compact, totally enclosed design
• Suitable for heating and cooling applications
• Quiet and economical operation

Product Highlights

Product Information

Standard Information

• Application: Heating
• Temperature Range: -40°F to 150°F

Technical Specifications

• Type: SPDT
• Voltage: 24V
• Hertz: 50/60
• DC Resistance: 90 ohms
• Nominal Current: 125 mA
• Inrush Current: 4 VA
• Electric Connection: 1/4 Quick-Connect Terminals
• Coil Voltage: 24 VAC
• Terminal Type: Quick Connect
• Category: Relays
