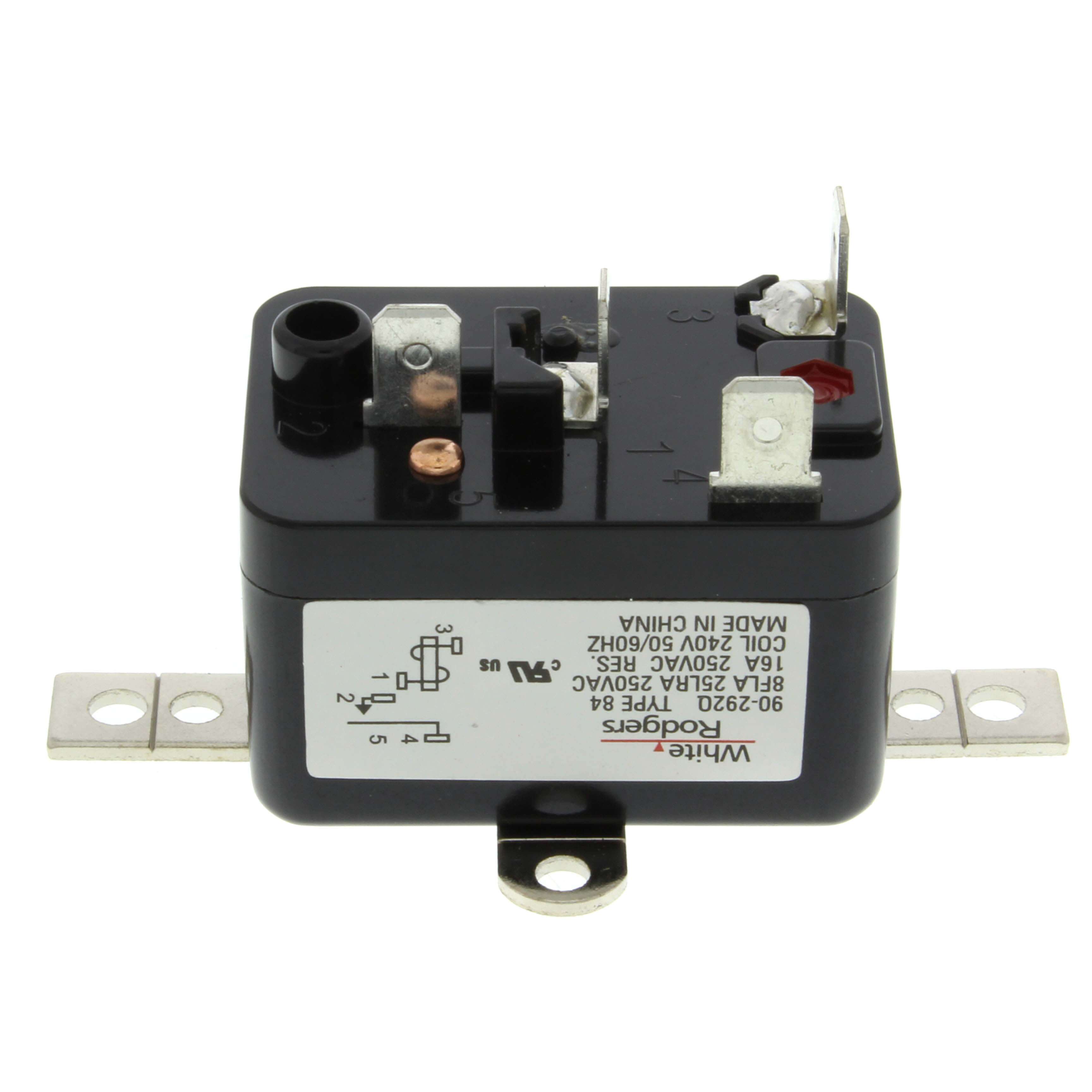

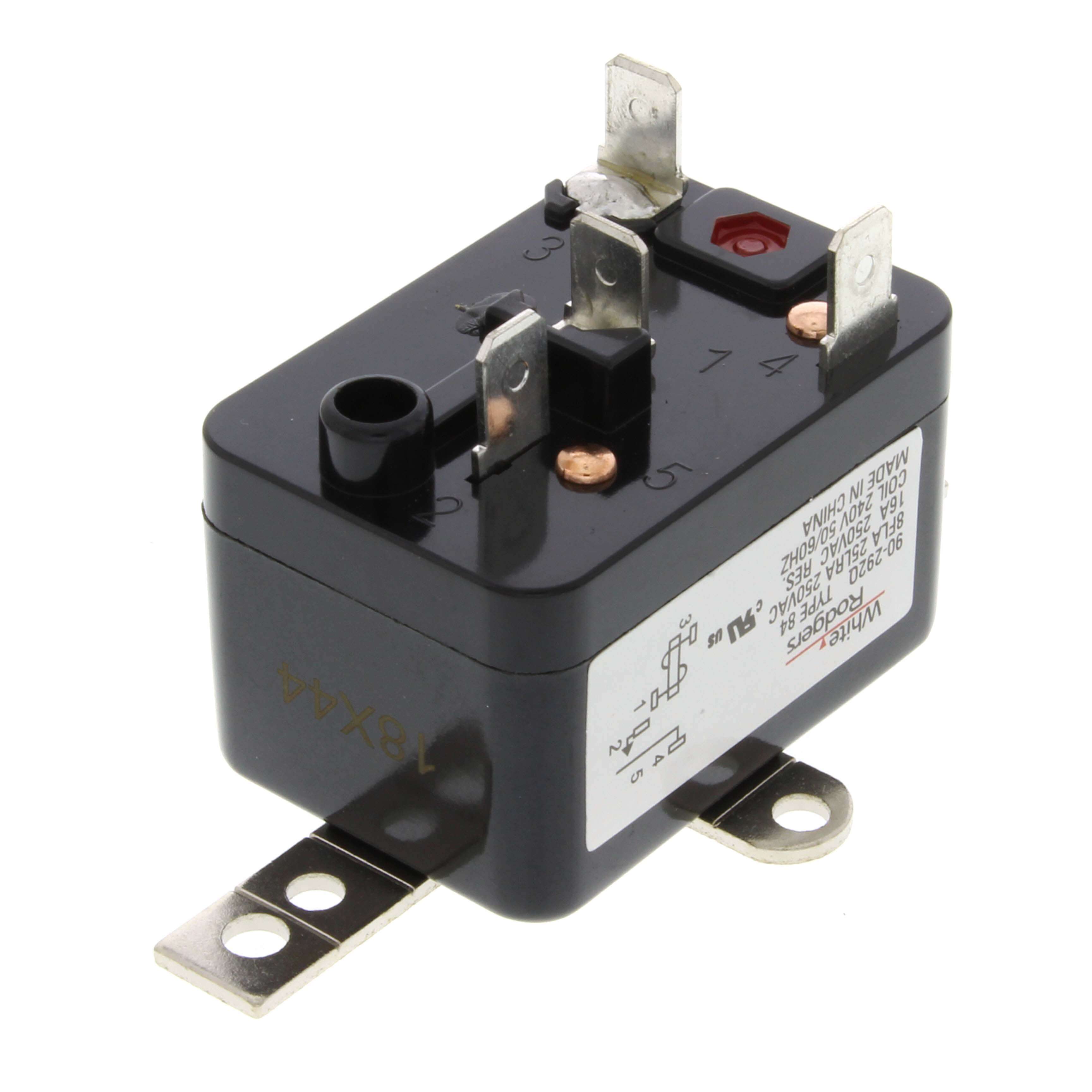

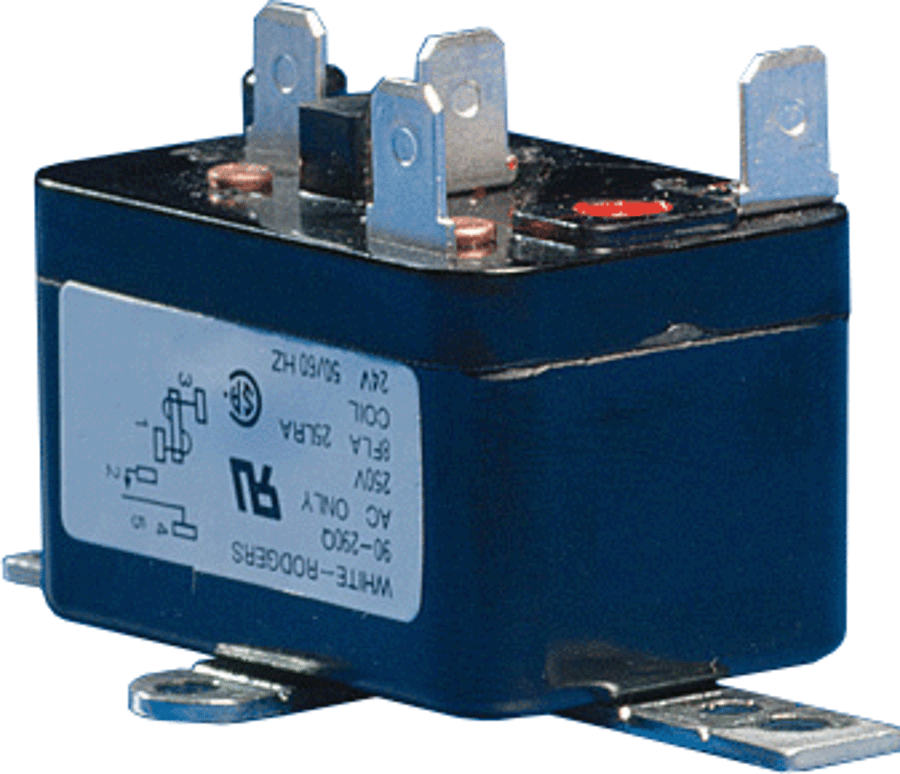

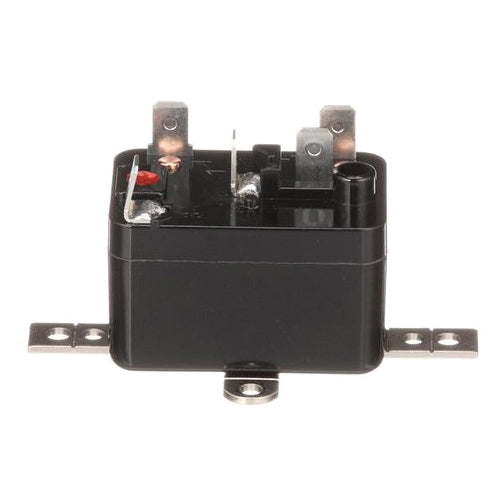

White-Rodgers 90-292Q Fan Relay, SPNO 208/240V Enclosed

Product Description

The White-Rodgers 90-292Q is a fan relay with a Type 84 design, suitable for electrical applications. It operates on a 208/240V coil voltage and is equipped with a single-pole normally open (SPNO) contact form. This relay is ideal for controlling single or two-speed fan motors and other general purpose switching.

• SPNO contact form for effective circuit control.
• Compatible with 208/240 VAC systems.
• Designed for both heating and cooling applications.

Product Highlights

This relay supports quiet and reliable operation, making it suitable for various HVAC systems and applications.

Product Information

Standard Information

• Brand: White-Rodgers
• Manufacturer: Emerson Electric

Technical Specifications

• Coil Voltage: 208/240 VAC
• Contact Form: SPNO
• Frequency Rating: 50/60 Hz
• DC Resistance: 7000 ohms
• Current Draw: 12.5 mA (Nominal)
• Inrush VA: 4 VA
• Nominal VA: 3 VA
• Dimensions: 1.95 inches x 1.65 inches x 3.15 inches
