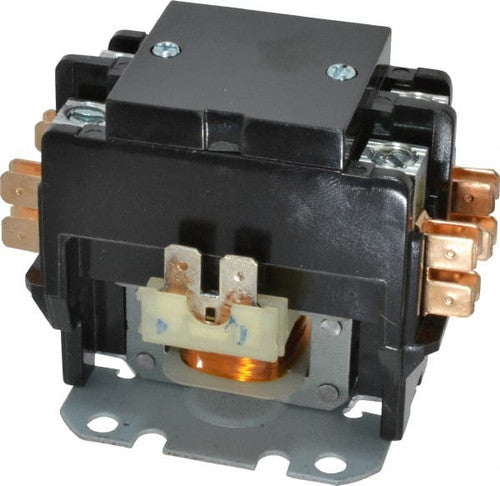

White-Rodgers 90-247S1 Definite Purpose Contactors 40A

Product Description

The White-Rodgers 90-247S1 definite purpose contactor is a reliable electromechanical relay with two poles and a coil voltage of twenty-four VAC. It supports various applications with a resistive load rating of fifty amps at two hundred seventy-seven VAC, four hundred eighty VAC, and six hundred VAC. The full load amperage stands at forty amps at the same voltage levels. This product is tested for performance and longevity in a variety of settings.

• Electromechanical relay with two poles
• Coil voltage of twenty-four VAC
• Maximum current rating of forty amps

Product Highlights

The 90-247S1 is designed for efficiency in many electrical control applications.

Product Information

Standard Information

• Brand: White-Rodgers
• MPN: 90-247S1

Technical Specifications

• Number of Poles: 2
• AC Coil Voltage: 24 V
• Maximum Current Rating: 40 A
• Operating Temperature: -40 to 65 °C
• Coil Current: 250 mA
• Family: 90-247
• Mounting: Flange Mount
• Type: Contactor Relay
• Coil Resistance: 11 Ohm
• Maximum AC Voltage Rating: 600 V
• Hazardous Materials: No
• RoHS: Yes
• Supplier: White Rodgers / Emerson
• Unit of Measure: Per Each
