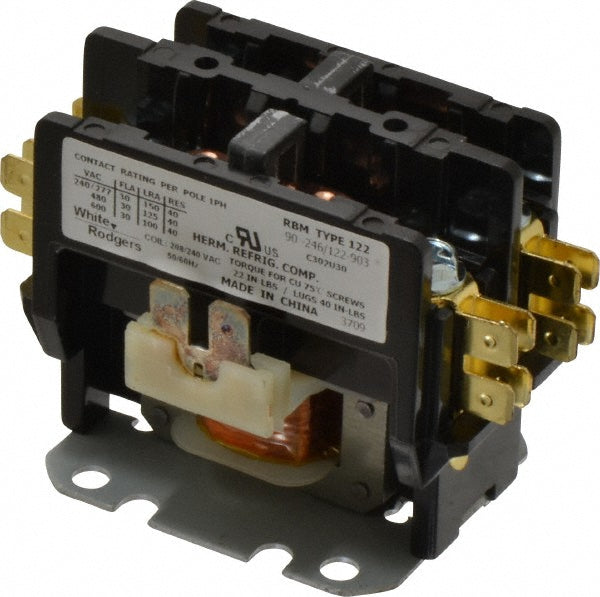

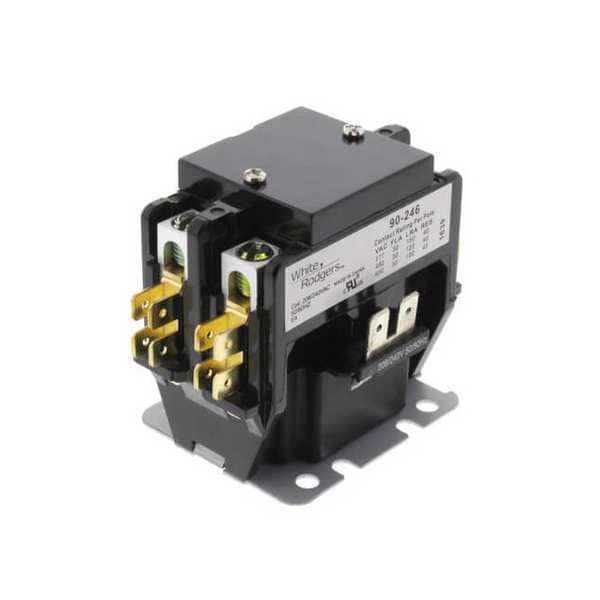

White-Rodgers 90-246S1 Contactor, 2 Pole, 208/240VAC, 30 Amps

Product Description

The WHITE-RODGERS 90-246S1 is a definite purpose magnetic contactor with a coil voltage of 208/240V AC. This 2-pole contactor is non-reversing and suitable for connecting and disconnecting power to motors and other high-current equipment. It has a full load current rating of 30A inductive and 40A resistive.

• Standards: ARI, UL Listed
• Depth: 3.31 in
• Reversing: No

Product Highlights

This WHITE-RODGERS contactor is designed for HVACR applications and features quick-disconnect terminals for easy installation.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 90-246S1
• Country of Origin: China

Technical Specifications

• MFR #: 90 246S1
• Zoro #: G4434617
• UPC #: 786710027796
• Country of Origin: China
• Depth: 3.31 in
• Width: 2 in
• Height: 2.45 in
• Overall Width: 2 in
• Overall Height: 2.5 in
• Mounting Hole Diameter: 0.22 in
• Overall Depth: 3.38 in
• Mounting Hole Distance - Width: 1.63 in
• Mounting Hole Distance - Height: 1.63 in
• Item: Definite Purpose Magnetic Contactor
• Standards: ARI, UL Listed
• Reversing: No
• Frequency: 50/60 Hz
• Full Load Current - Resistive: 40 A
• Enclosure NEMA Rating: No Enclosure
• Number of Poles: 2
• Full Load Current - Inductive: 30 A
• Terminal Connection Type: Quick-Disconnect Terminals
• Mounting Style: Universal
• Contactor Style: HVACR Definite Purpose Contactor
• Minimum Operating Temperature: -40 Degrees F
• Maximum Operating Temperature: 150 Degrees F
• Series: 90 Series
• Coil Voltage: 208/240V AC
• Contact Current: 30 Amp
• Nominal Coil Voltage @ 60Hz: 208-240V AC
• Wire Termination Type: Quick Disconnect
• Contactor Frame Size: Standard
• UNSPSC: 39121529
