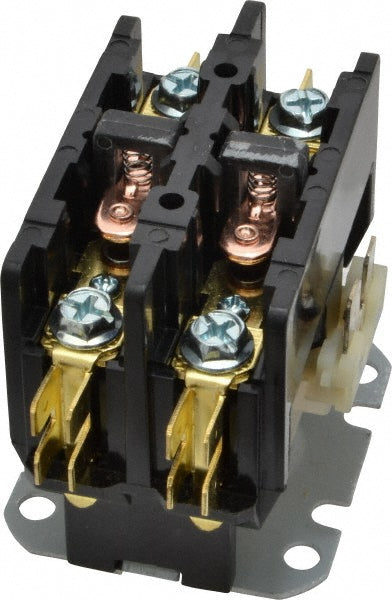

White-Rodgers 90-245S1 Electromechanical Relay 120VAC 30A (( 50.8mm 59mm 66.3mm))

Product Description

The WHITE-RODGERS 90-245S1 is an electromechanical relay operating at 120VAC with a 224 Ohm coil resistance and a 30A maximum current rating. This contactor relay features flange mounting and screw terminals. It is designed for definite purpose applications with 2 poles.

• Operates at 120VAC with a 224 Ohm coil resistance
• Features a 30A maximum current rating
• Designed with flange mounting and screw terminals

Product Highlights

This electromechanical relay is suitable for various applications requiring reliable switching and is designed for durability and consistent performance.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 90-245S1
• Country of Origin: CN

Technical Specifications

• Supplier: White Rodgers / Emerson
• Part No: 90-245S1
• RoHS: Yes
• COO: CN
• ECCN: EAR99
• Mounting Type: Flange Mount
• Termination Style: Screw Terminal
• AC Coil Voltage: 120 V
• Coil Resistance: 224 Ohm
• Maximum Current Rating: 30 A
• Family: 90-245
• Type: Contactor Relay
• Coil Current: 50 mA
• Number of Poles: 2
• UNSPSC Code: 39121529
