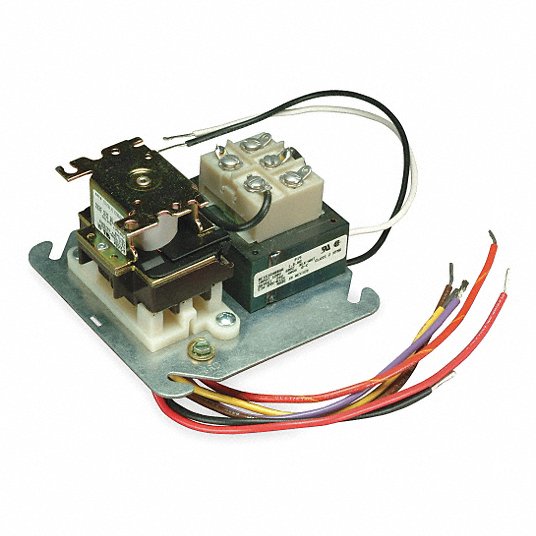

WHITE-RODGERS 90-118ES1 Transformer Relay: 2 Relay, SPST, Normally Closed/Normally Open, 24V AC Coil

Product Description

The WHITE-RODGERS 90-118ES1 transformer relay controls fans by managing their power supply. This device features a twenty-four volt alternating current coil and a single pole single throw contact form (SPST). The transformer relay adjusts the necessary control signals to ensure compatibility with the connected fan.

• Provides control over fans
• Switches power supply on or off
• Features transformers to adjust the control signal

Product Highlights

This relay is essential for HVAC systems where precise fan control is required.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• MPN: 90-118ES1

Technical Specifications

• Number of Relays: 2
• Contact Form: SPST
• Switch Action: Normally Closed/Normally Open
• Voltage: 24V
• Phase: Single
• Full Load Amps @ 120V AC: 13.8 A
• Full Load Amps @ 240V AC: 6.9 A
• Locked Rotor Amps @ 120V AC: 82.8 A
• Locked Rotor Amps @ 240V AC: 41.4 A
• Transformer Primary Voltage: 120V AC
• Transformer Secondary Voltage: 24V AC
• Low Voltage Contact Form: SPDT
• Mounting Style: Through Panel
• Electrical Connection Type: Hardwired
• Manufacturer Warranty: 1 year
