White-Rodgers 90-113S1 Fan Control Center 120 VAC Primary 24 VAC Secondary SPDT Relay

Product Description

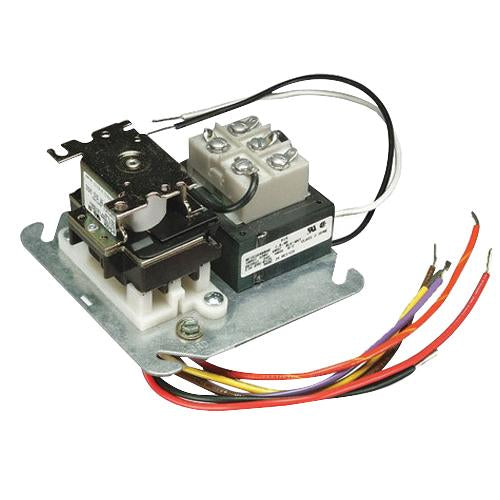

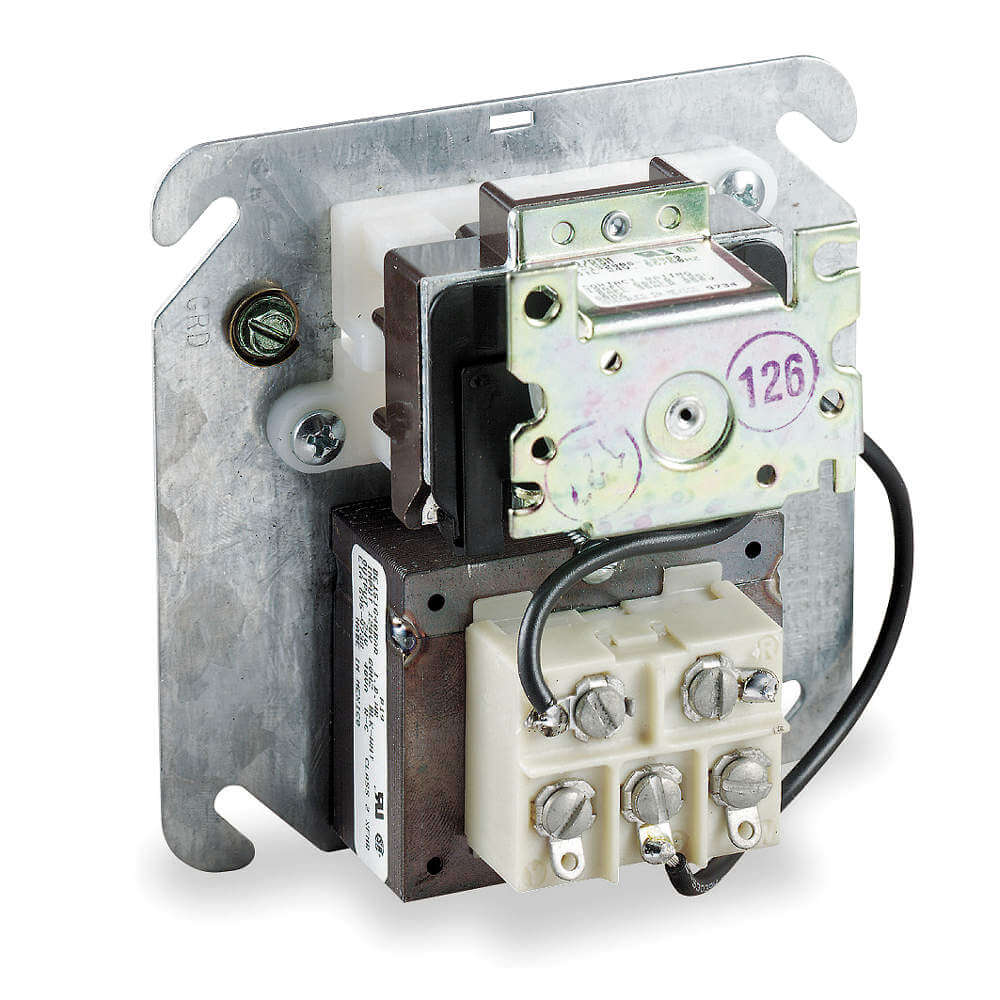

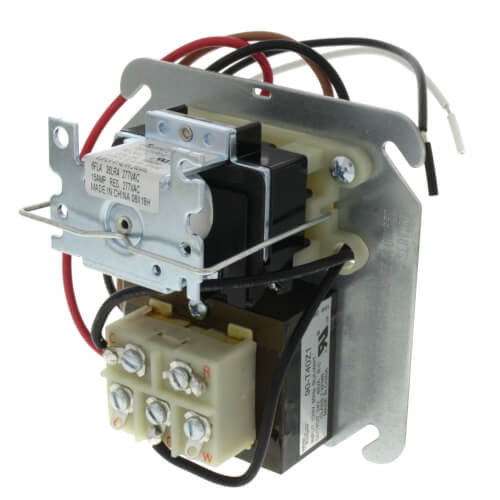

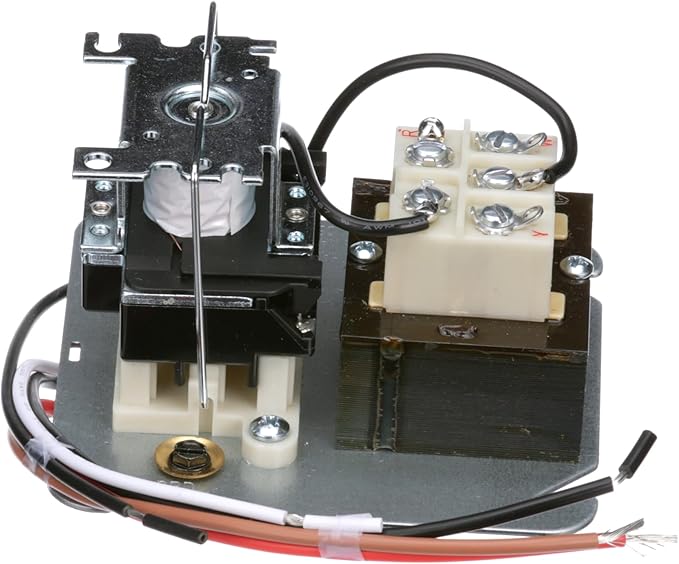

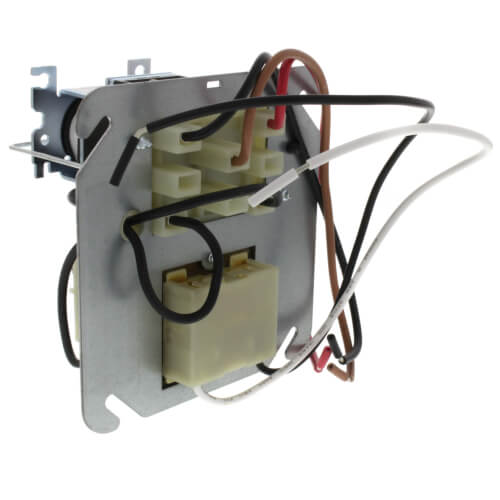

The White-Rodgers 90-113S1 Fan Control Center is a transformer and relay combination that simplifies fan motor control in HVAC systems. This product is designed for installation on a four inch by four inch junction box and includes pre-wired line voltage connections. It features an energy limiting class II transformer that enhances safety and efficiency.

• Easy installation with pre-wired connections.
• Class II design for energy limiting.
• Color-coded, pre-stripped leads for fast setup.

Product Highlights

This model provides low voltage control suitable for fan motors and auxiliary circuits.

Product Information

Standard Information

• Application: Heating
• Mount: Junction Box

Technical Specifications

• Type: SPDT
• Voltage: 120 Volts
• Voltage (Secondary): 24 Volts
• Hertz: 60 Hz
• Electric Connection: Terminal Board with Five Screw Terminals
• Electrical Ratings (AFL): 13.8A at 120 VAC, 6.9A at 240 VAC
• Electrical Ratings (ALR): 82.8A at 120 VAC, 41.4A at 240 VAC
• Manufacturer: White-Rodgers
• Model: 90-113
• Is Discontinued By Manufacturer: No
• Special Features: Insulated
• Transformer Primary Input Voltage: 120VAC, 60Hz
• Transformer Secondary Input Voltage: 24V, 40VA
• Replacement Relay Model Number: 90-340
• Switch Action: Normally Closed/Normally Open
• Coil Current: 0.40A
• Coil Input Voltage: 24V
• Contact Rating (Full Load): 120VAC, 13.8A
• Contact Form: SPDT
• Contact Rating: 13.8 FLA/82.8 LRA at 120 VAC, 6.9 FLA/41.4 LRA at 240 VAC
• Country of Origin: CN
• Number of Poles: 1
• Terminal Type: Screw
• Voltage Rating: 120 V Primary, 24 V Secondary
• Mounting Style: Through Panel
• Overall Length: 1 inch
• Overall Width: 4 inches
• Overall Depth: 4 inches
