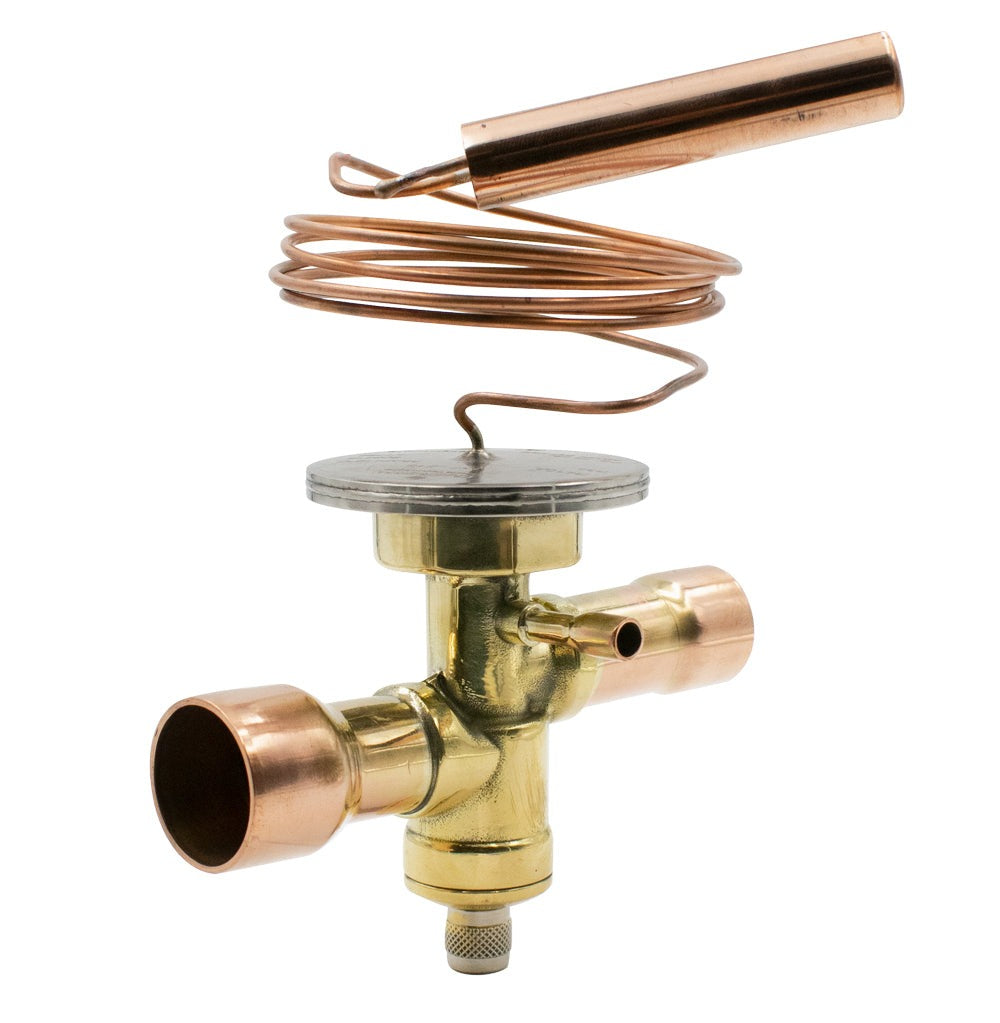

White-Rodgers 806864 TX7-N09 Thermostatic expansion valve 37 Ton (5 ft capillary)

Product Description

White-Rodgers 806864 is a TX7-N09 thermostatic expansion valve for refrigeration and HVAC systems. The valve uses a balanced-ported, externally equalized design with adjustable superheat and a laser-welded stainless steel power element. It is compatible with refrigerant code N (R-407C, R-22), rated for nominal 37 ton capacity, offers bi-directional flow capability, 7/8 in and 1-1/8 in ODF connections, and a 5 ft capillary tube.

• Externally equalized TX7 design with 1/4 in ODF external equalizer and adjustable superheat
• Compatible with refrigerant code N (R-407C, R-22); nominal 37 ton capacity and bi-directional flow
• 7/8 in ODF inlet and 1-1/8 in ODF outlet, straight-through body, 5 ft capillary; laser-welded stainless steel power element

Product Highlights

TX7-N09 thermostatic expansion valve, externally equalized, adjustable superheat, 37 ton nominal capacity, 5 ft capillary

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 806864
