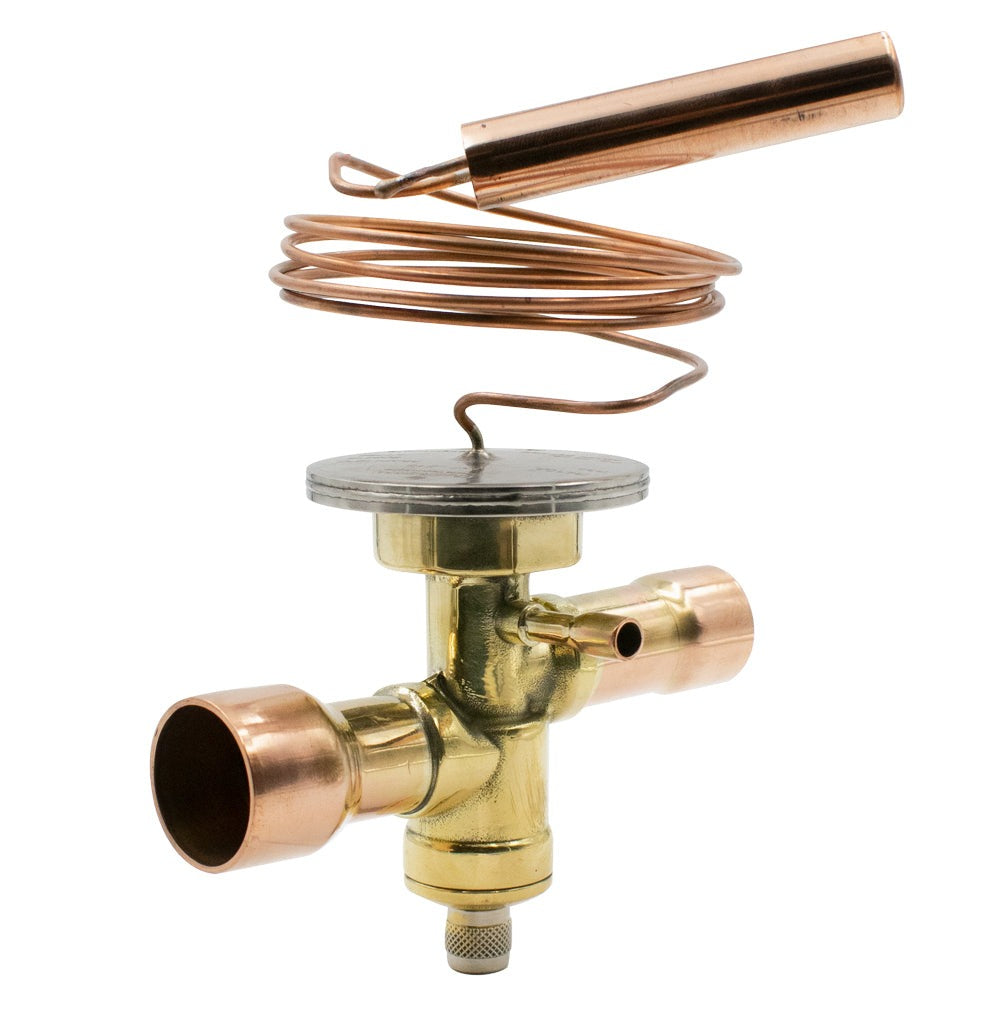

White-Rodgers 806860 TX7-N07 Thermostatic Expansion Valve 20 Ton (5 ft Capillary)

Product Description

The White-Rodgers 806860 is a TX7-N07 thermostatic expansion valve designed to meter refrigerant flow in HVAC and industrial cooling systems. The valve features a balanced ported design, external equalization, and a 5 ft capillary tube for remote sensing. It supports refrigerant code N (R-407C, R-22) and has a straight-through body with specified ODF solder connections for inlet and outlet.

• Balanced ported TX7 design with hermetic construction and laser-welded stainless steel power element
• Externally equalized with 1/4 in ODF external equalizer, adjustable superheat, and bi-directional flow capability
• Connections: 7/8 in ODF inlet and 1-1/8 in ODF outlet; 5 ft capillary tube; no bleed; 20 ton nominal capacity

Product Highlights

Externally equalized TX7-N07 TXV, balanced ported design, 5 ft capillary, 7/8 in x 1-1/8 in ODF connections, 20 ton nominal capacity

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 806860
