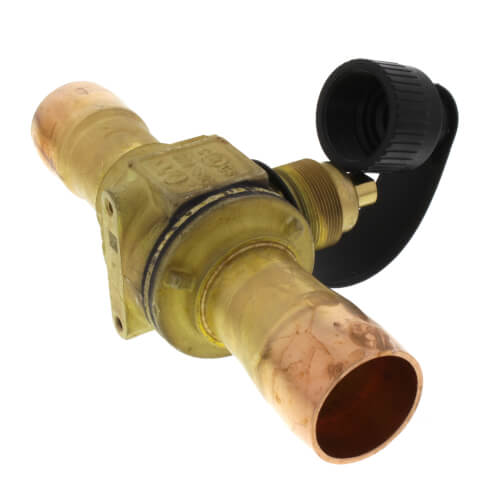

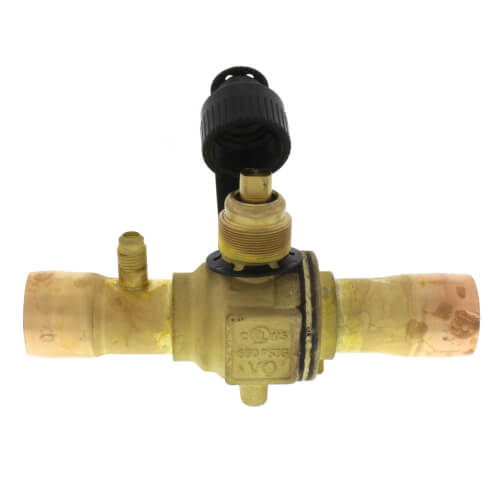

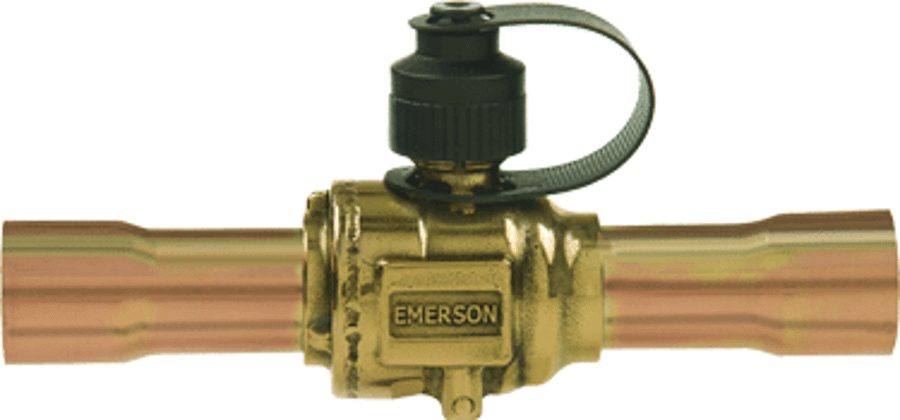

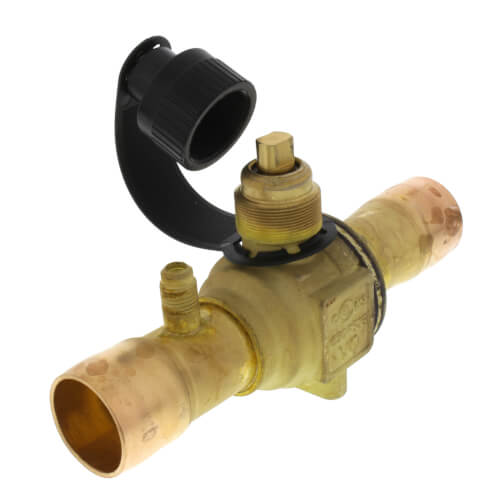

White Rodgers 806759 Ball Valve, 1-1/8 ODF w/ Schrader Valve Refrigeration Shut-Off

Product Description

The White Rodgers 806759 is a ball valve designed for refrigeration applications. This valve features a one and one-eighth inches ODF connection with a Schrader valve that allows for easy access during maintenance. It is suitable for isolating suction, discharge, and liquid line piping during maintenance shutdowns.

• Forged brass body
• Compatible with R-410A and CO2 refrigerants
• Bi-directional flow characteristics

Product Highlights

This valve is ideal for HVAC professionals and refrigeration technicians needing effective control and isolation of refrigerant lines.

Product Information

Standard Information

• Brand: White Rodgers
• Part Number: 806759

Technical Specifications

• Body Material: Forged Brass
• Connection Type: ODF
• Maximum Working Pressure: 650 psig
• Fluid Temperature Range: -40 degrees F to 250 degrees F (302 degrees F short term)
• Extended Tubes: 100% Copper Connections
• Access Port: Integrated access port available on all sizes
• Weight: 4.65 lbs
• Shipping Dimensions: 7.45 inches depth, 2.5 inches width, 1.94 inches height
