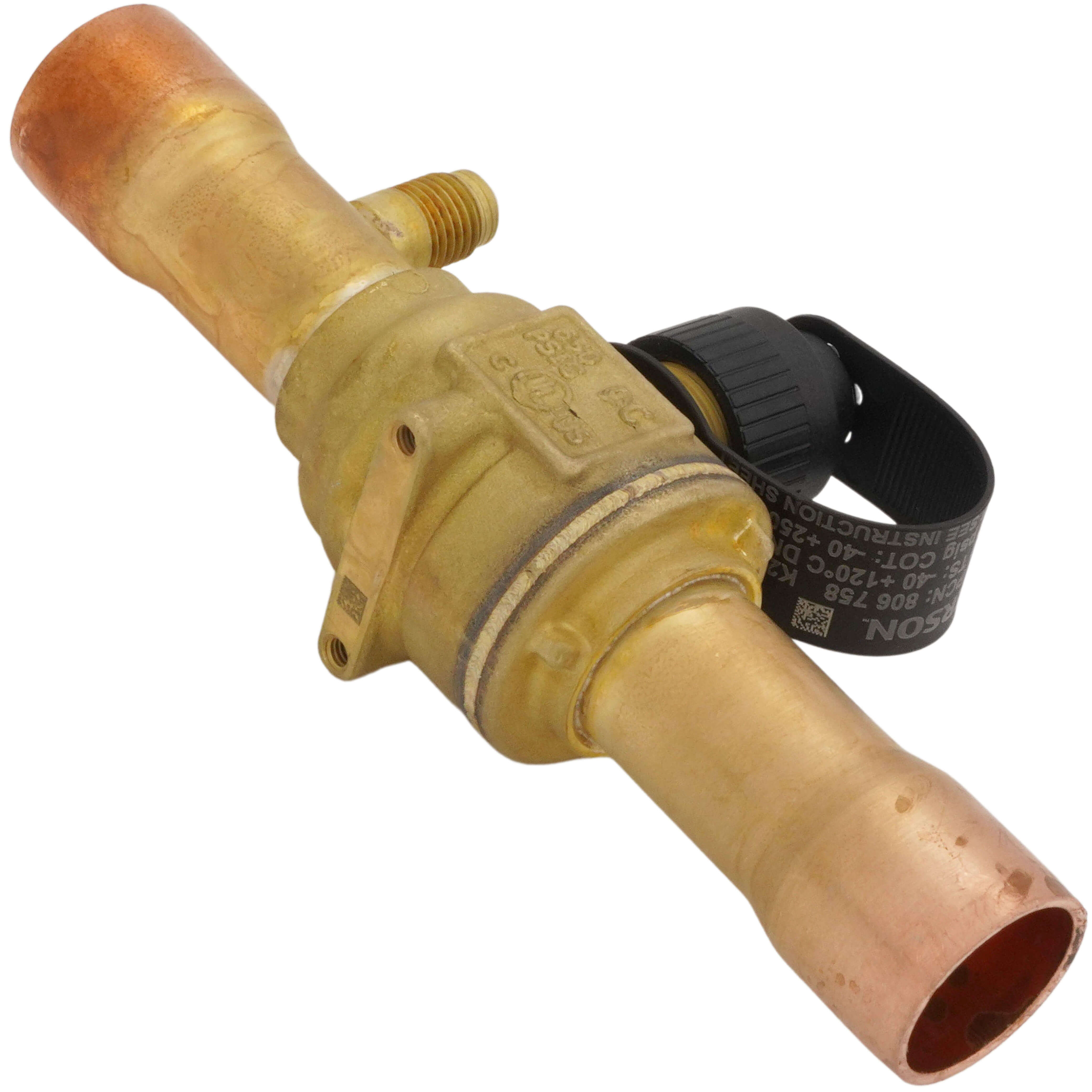

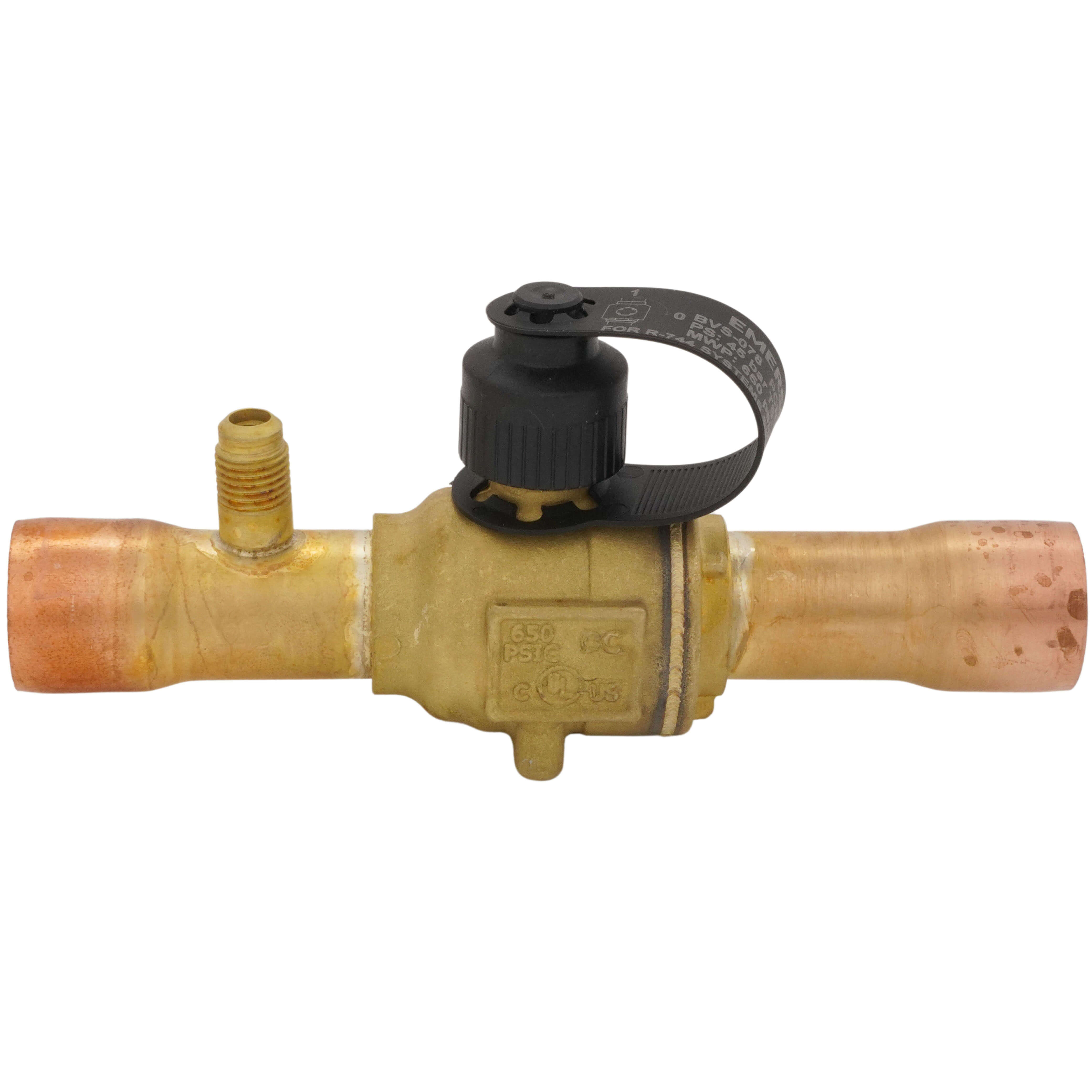

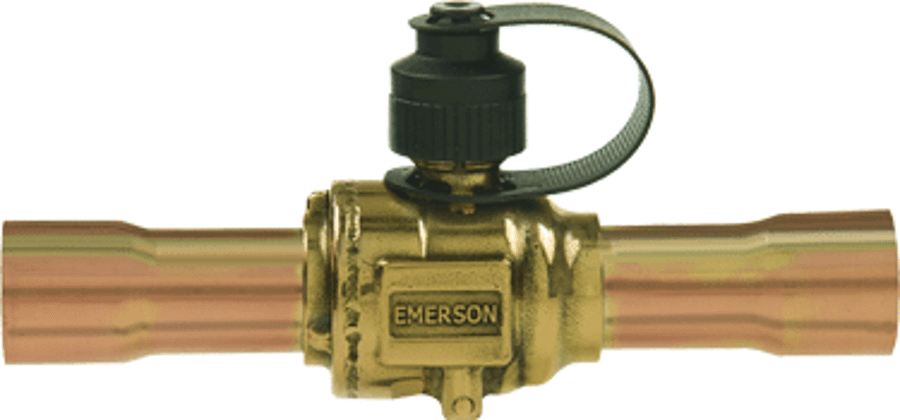

White Rodgers 806758 Ball Valve, 7/8 ODF w/ Schrader Valve Refrigeration Shut-Off

Product Description

The White Rodgers 806758 Ball Valve is designed for refrigeration applications. This valve features a seven-eighths inch ODF connection for secure fitting. It is ideal for isolating suction, discharge, and liquid line pipes during maintenance procedures.

• Constructed from forged brass for durability
• Includes an integrated access port for easy servicing
• Compatible with multiple refrigerants including R-410A

Product Highlights

This ball valve ensures reliable performance in various refrigeration settings and supports efficient maintenance.

Product Information

Standard Information

• Brand: White Rodgers
• Part Number: 806758

Technical Specifications

• Body Material: Forged Brass
• Connection Type: ODF
• Maximum Working Pressure: 650 psig
• Fluid Temperature Range: -40°F to 250°F (302°F short term)
• Extended Tubes: 100% Copper Connections
• Valve Type: Bi-directional
• Weight: 1.145 lbs
• Shipping Dimensions: 7.4 x 4.45 x 2.3 inches
