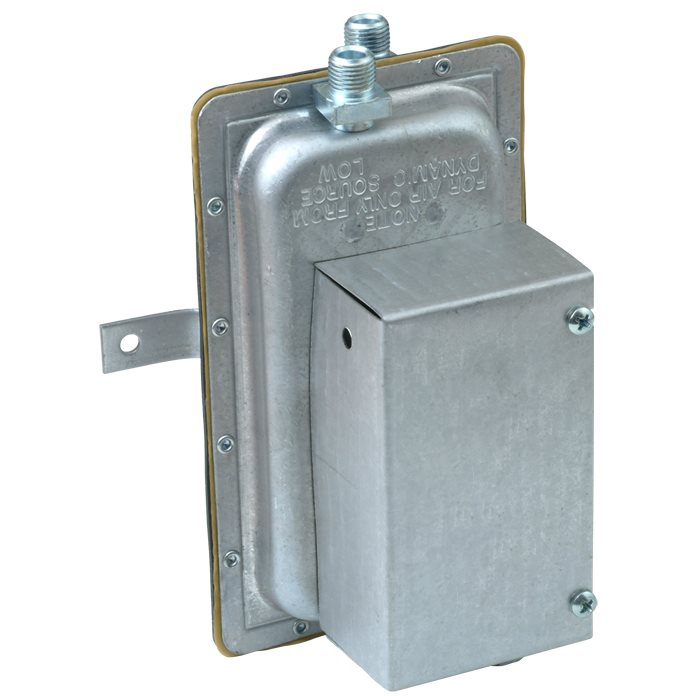

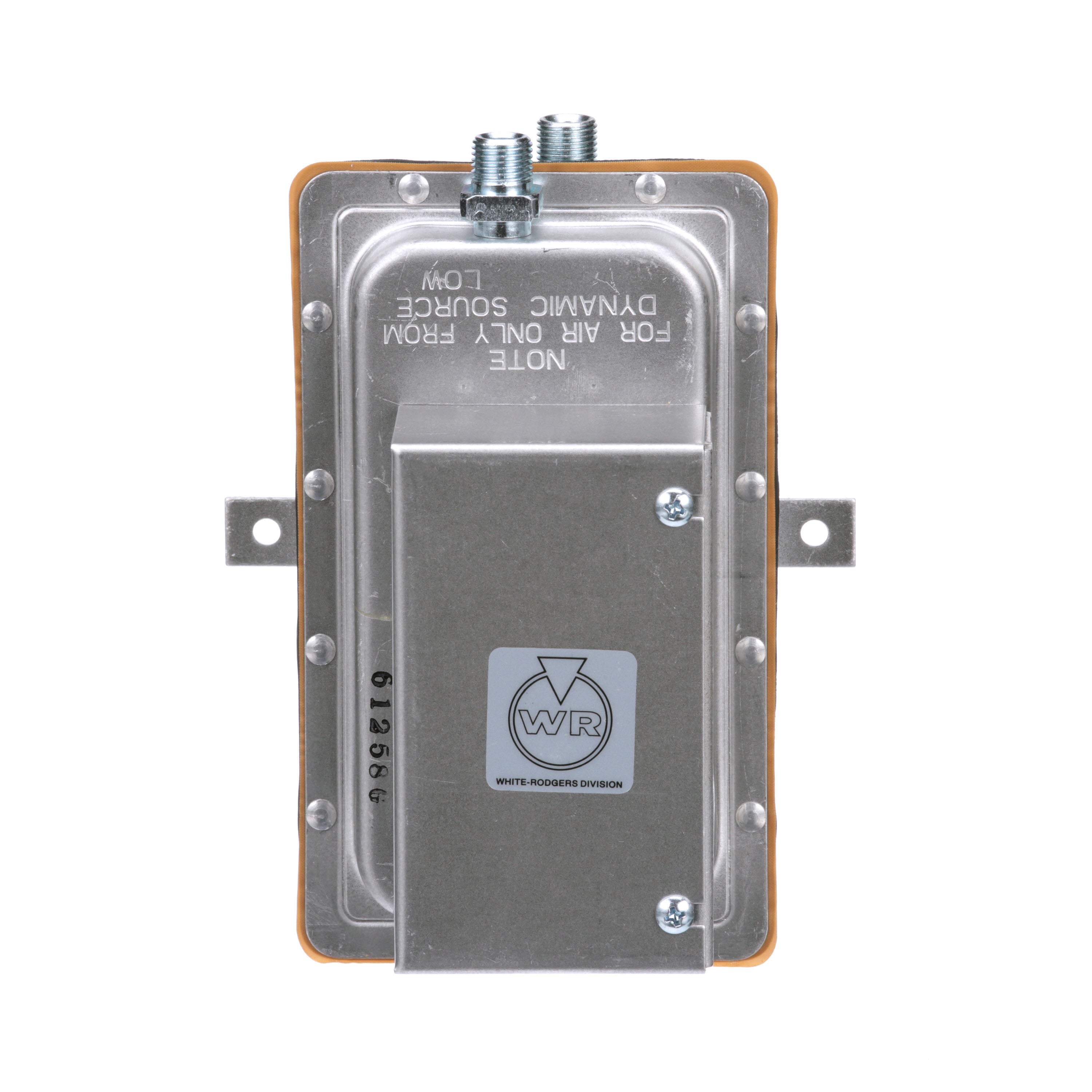

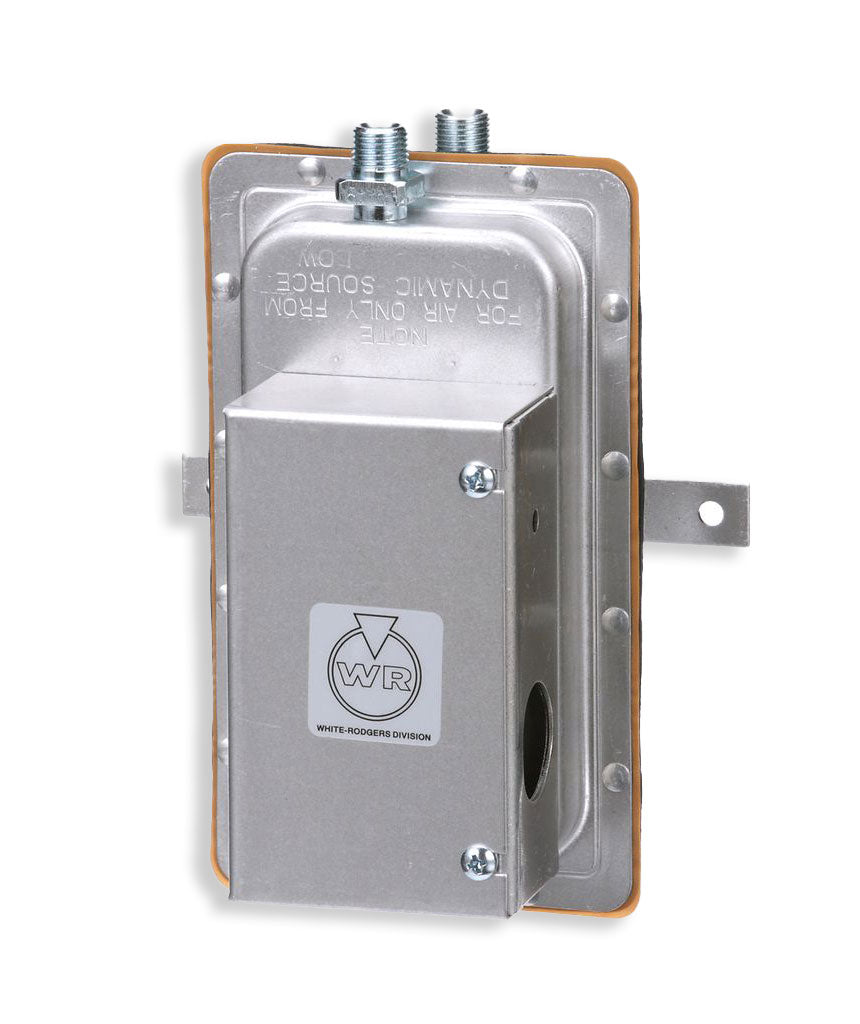

White-Rodgers 770-1 Product Air Pressure Switch

Product Description

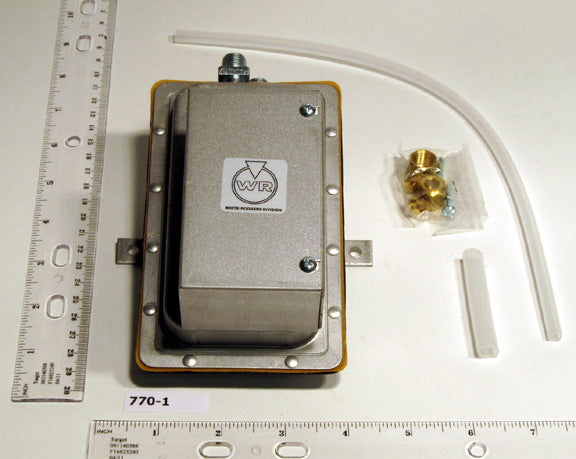

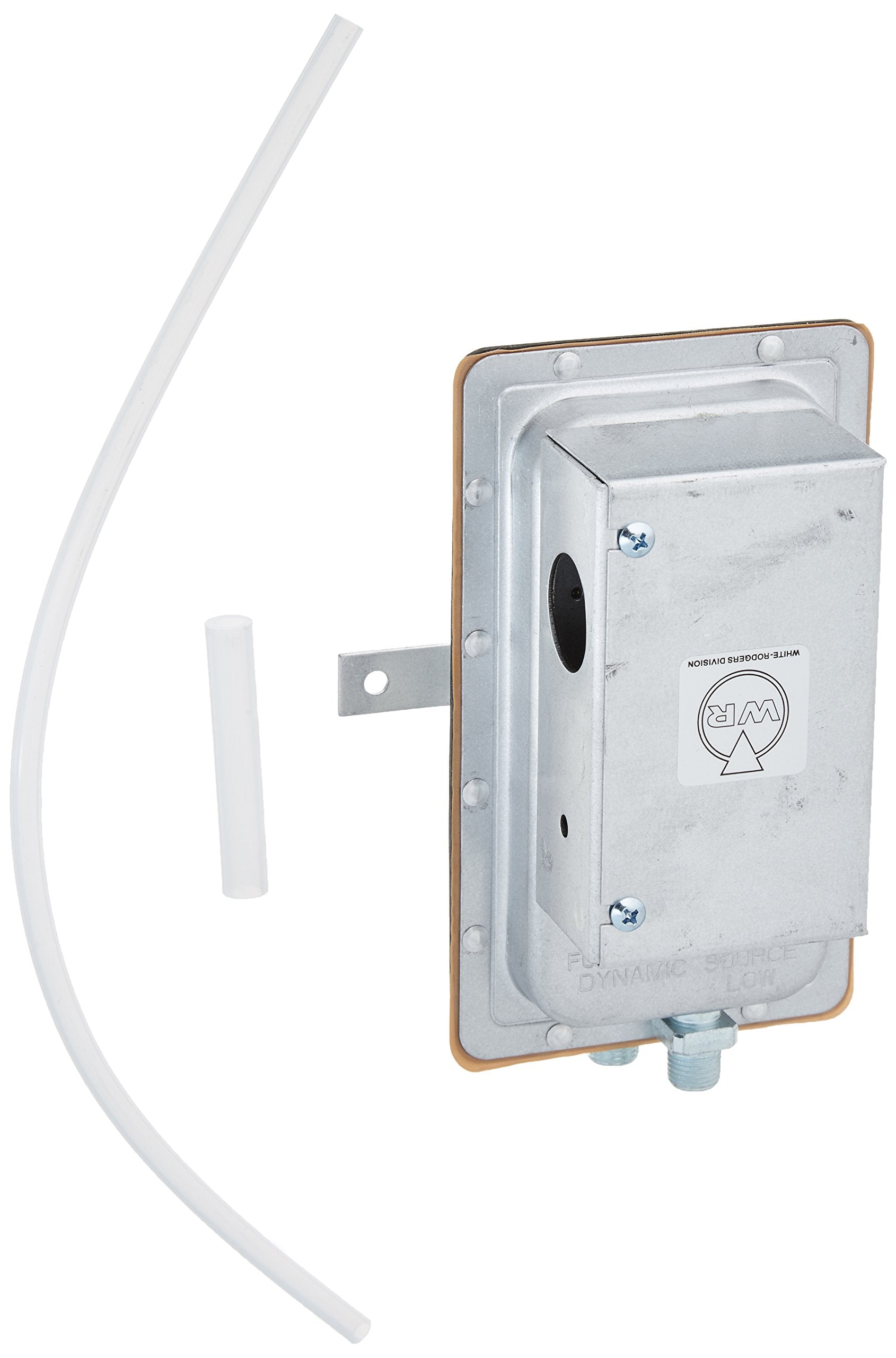

The WHITE-RODGERS 770-1 is an automotive replacement air pressure switch. This dual-purpose air switch responds to positive, negative, or differential air pressure. It features a design that eliminates fluttering and can be mounted in any position except upside down. Includes one 12 inch piece 1/4 inch OD flexible tubing, nuts and ferrules.

• Design eliminates fluttering or malfunction due to shock or vibration
• Wide operating range of 0.05 to 12 Inch WC
• SPDT switch for precise air pressure control

Product Highlights

The WHITE-RODGERS 770-1 air switch is suitable for electronic air cleaners, natural draft burners, refrigeration equipment and other applications.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 770-1
• Country of Origin: CN

Technical Specifications

• Switch Style: Pressure Switch, SPDT
• Batteries Included?: No
• Approval: UL, CSA
• Contact Configuration: SPDT
• Contact Rating: 300 Volt Amp at 125/277 Volt AC, 1/2 HP at 125 Volt AC
• Operating Pressure Rating: 1/2 PSI
• Type: Positive, Negative, Differential Air
• Adjustable Opening: 0.05 to 12 Inch WC
• Ambient Temperature: -40 to 180 Deg F
• Amperage: 15A
• Switching: SPDT
• Pressure Rating: 0.5 psi
• Temperature Rating: -40 to 180 deg F
• Electrical Ratings: 15 A
• Adjustable range: 0.05-12in w.c.
• Electrical rating: 15A resistive at 120/240; 300VA at 125-277VAC
• Voltage: 277 Volts
• Wattage: 300 watts
• Connector Type: Screw Terminals
• Current Rating: 15 Amp (Resistive)
• Maximum Operating Temperature: +180|deg F
• Minimum Operating Temperature: -40|deg F
• Item Number: 770-1
• MPN: 770-1
• Brand: WHITE-RODGERS
• UPC: 786710003042
• Width: 3-7/8 in
• Depth: 2-13/16 in
• Height: 6-1/8 in
