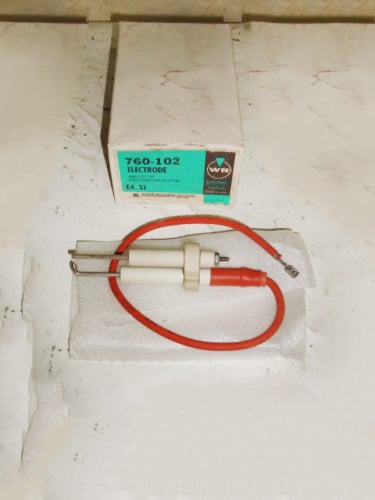

White-rodgers 760-102 Dual Electrodes

Product Description

The WHITE-RODGERS 760-102 is a dual electrode assembly used in gas combustion systems to provide spark ignition and flame sensing. Dual electrode designs combine the igniter and sensor into a single unit, reducing wiring complexity and simplifying replacement. This component is a standard ignition part found in gas-fired heating equipment and is typically installed by licensed HVAC technicians during routine service or system repair. The 760-102 is a direct replacement part intended to restore reliable ignition performance in systems where the original electrode assembly has failed or degraded.

Dual electrode assemblies are commonly used in residential and light commercial gas heating applications, including forced-air furnaces and other gas-fired appliances that require spark ignition. The electrode functions during every call for heat, making it a high-cycle component subject to wear over time. Replacement is a common service task performed during heating season troubleshooting when ignition failure or nuisance lockouts are diagnosed.

Key Features

• Dual electrode design combines ignition and flame sensing in one assembly
• Reduces wiring complexity compared to separate igniter and sensor configurations
• Direct replacement for failed or degraded OEM electrode assemblies
• Suitable for high-cycle ignition applications in gas-fired heating equipment

Compatibility

Designed as an OEM-style replacement electrode assembly for gas-fired heating systems requiring a dual electrode ignition configuration.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with applicable local codes and the equipment manufacturer's service documentation. Shut off gas supply and disconnect power to the unit before servicing the ignition assembly. Inspect electrode gap and ceramic insulators during installation and avoid contact with the electrode tips, as contamination can affect spark and sensing performance.

Technical Specifications

• Component Type: Dual Electrode Assembly

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 760-102
