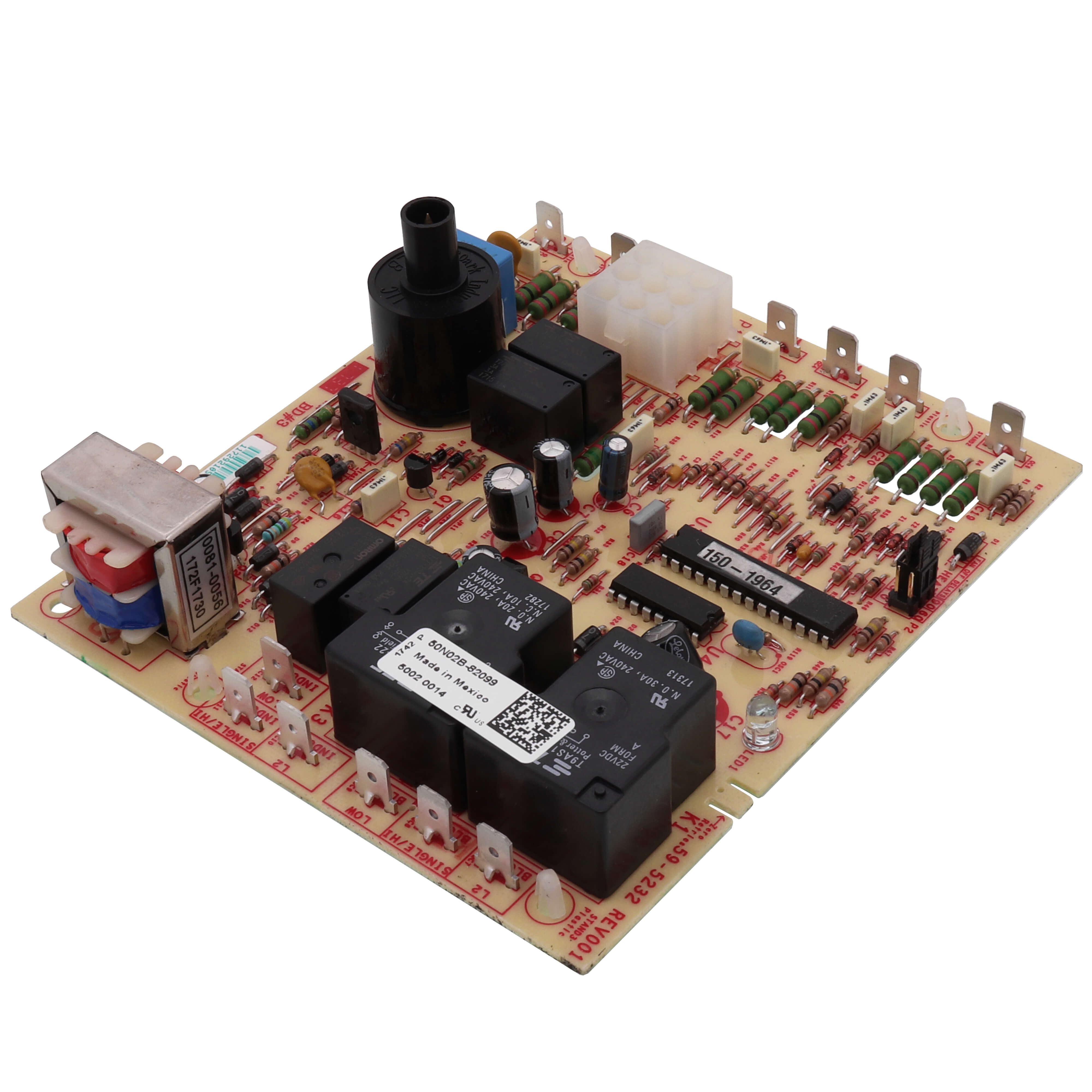

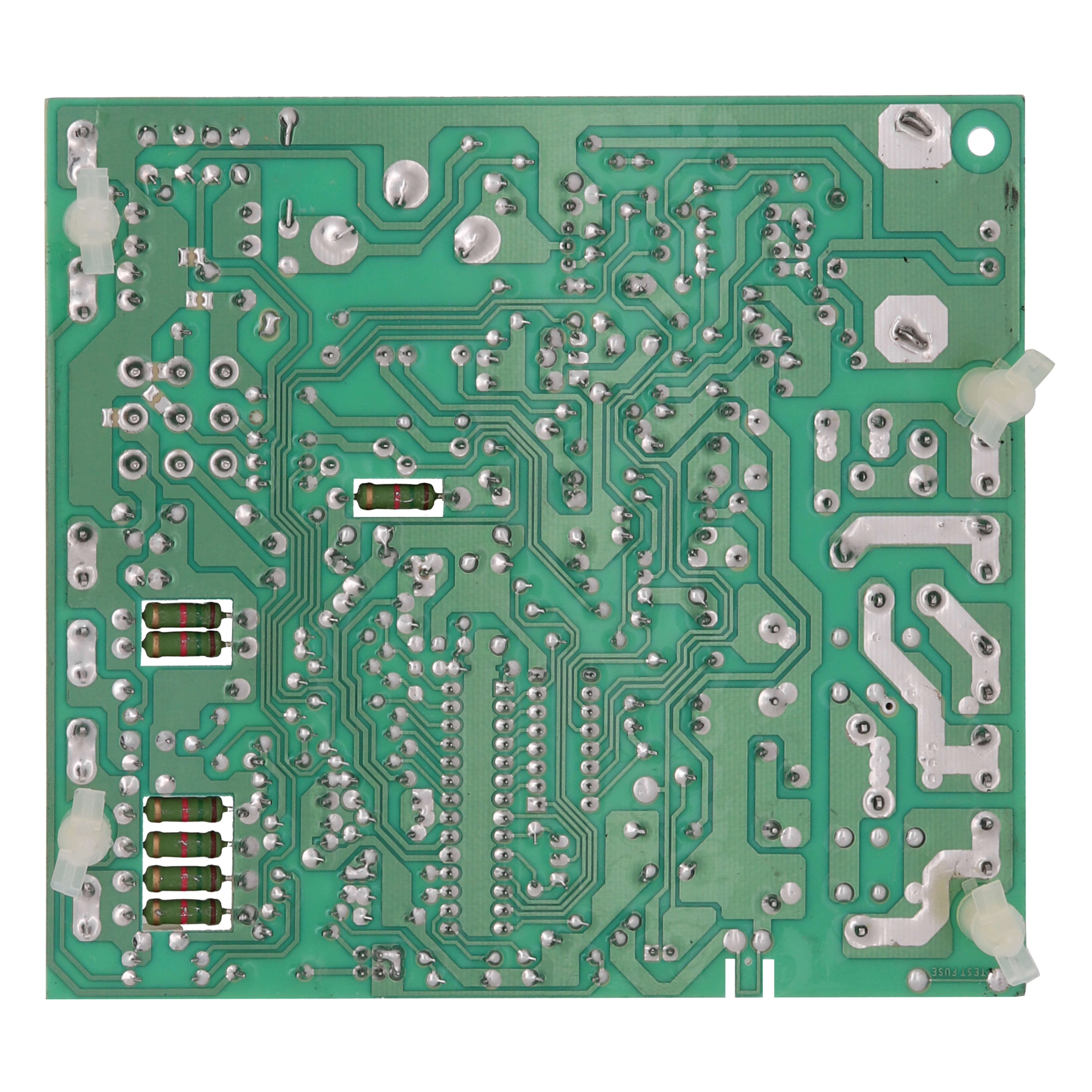

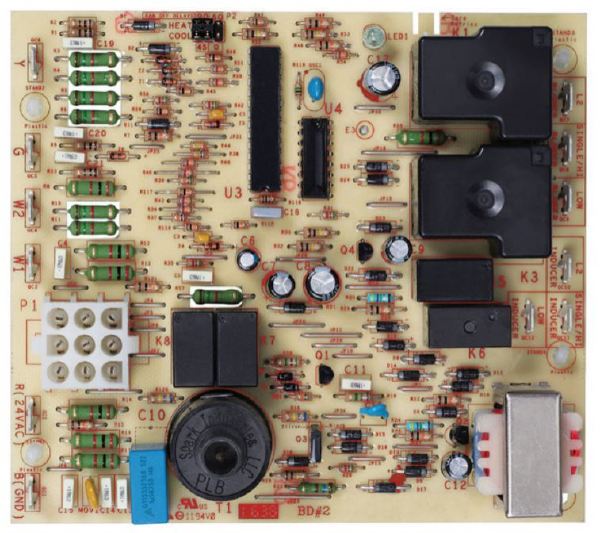

WHITE-RODGERS 50N02B-820 Integrated Furnace Control

Product Description

The WHITE-RODGERS 50N02B-820 Integrated Furnace Control is designed for aftermarket service and direct replacements on Trane Commercial Systems packaged units. It features a 45 or 0 second cool fan off delay, ensuring optimal temperature control in commercial and industrial environments.

• Direct replacement for Trane Commercial Systems packaged units
• 45 or 0 second cool fan off delay for precise temperature regulation
• Integrated design for streamlined installation and maintenance

Product Highlights

Reliable performance and long-lasting durability in a variety of commercial and industrial HVAC systems. Ensures optimal temperature control.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Item Number: 50N02B-820
• Part Type: Trane Control Board

Technical Specifications

• Operating Temperature: -40°F to 175°F
• Humidity Range: 10% to 95% RH
• Mounting: Standoffs/Adapter board
• Input Voltage: 24 VAC, 50 / 60 Hz
• Maximum Input Current: 350 amp @ 25 VAC
• Gas Valve Relay: 1.5 amp @ 30 VAC 0.6 pf
• Inducer Relay: 75 FLA, 1.5 LRA, max @ 240 VAC
• Circulator Relay(s): 10 FLA - 30 LRA max @ 240 VAC
• Spark Rate: 50 / 60 Hz
• Spark Energy: 10mJ @ 18 VAC / 13mJ @ 24 VAC
• Minimum current to insure flame detection: 1.2 microamperes DC
• Nominal current: 4.5 microamperes DC
• Flame establishing time: 0.8 sec
• Flame failure response time: 2.0 sec @ 60 Hz
• Country of Origin: Mexico
