Product Description

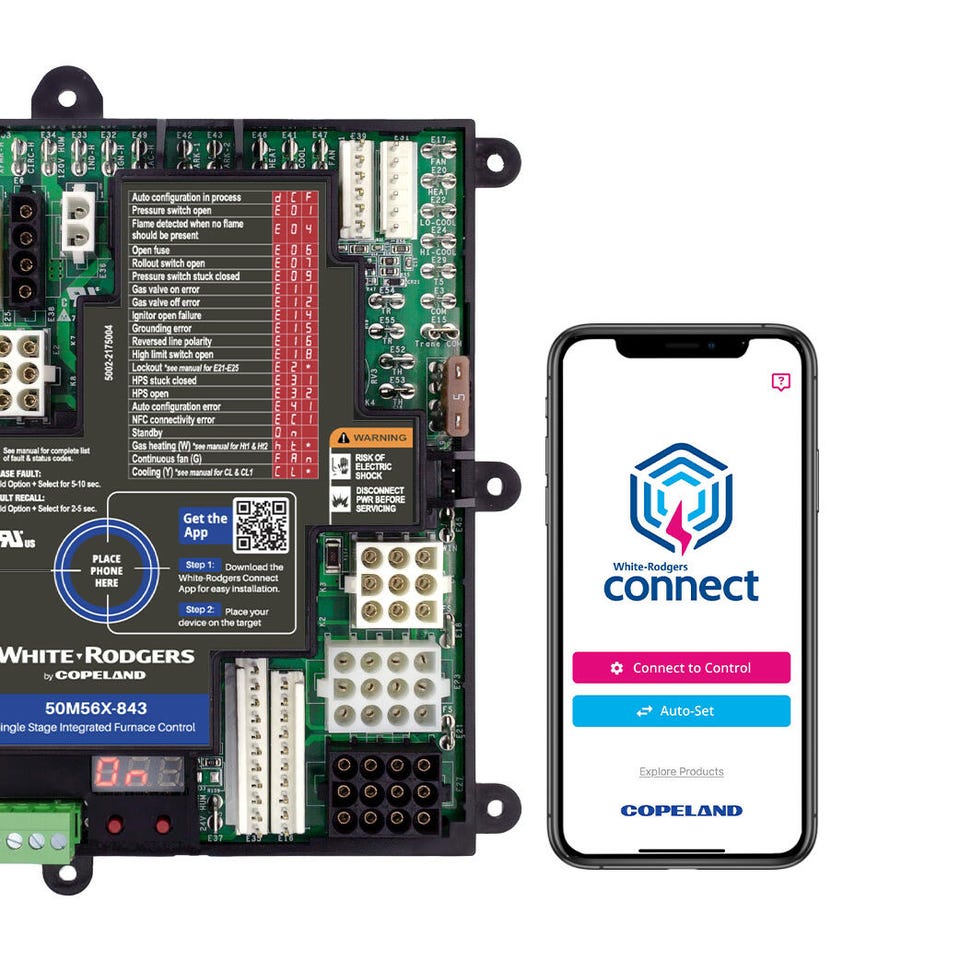

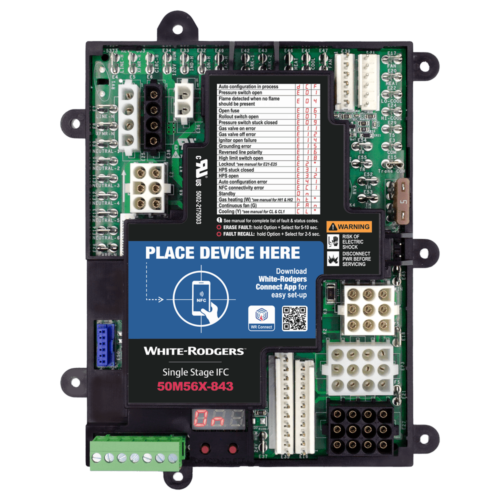

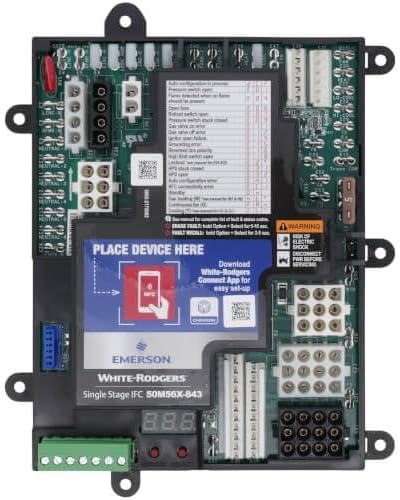

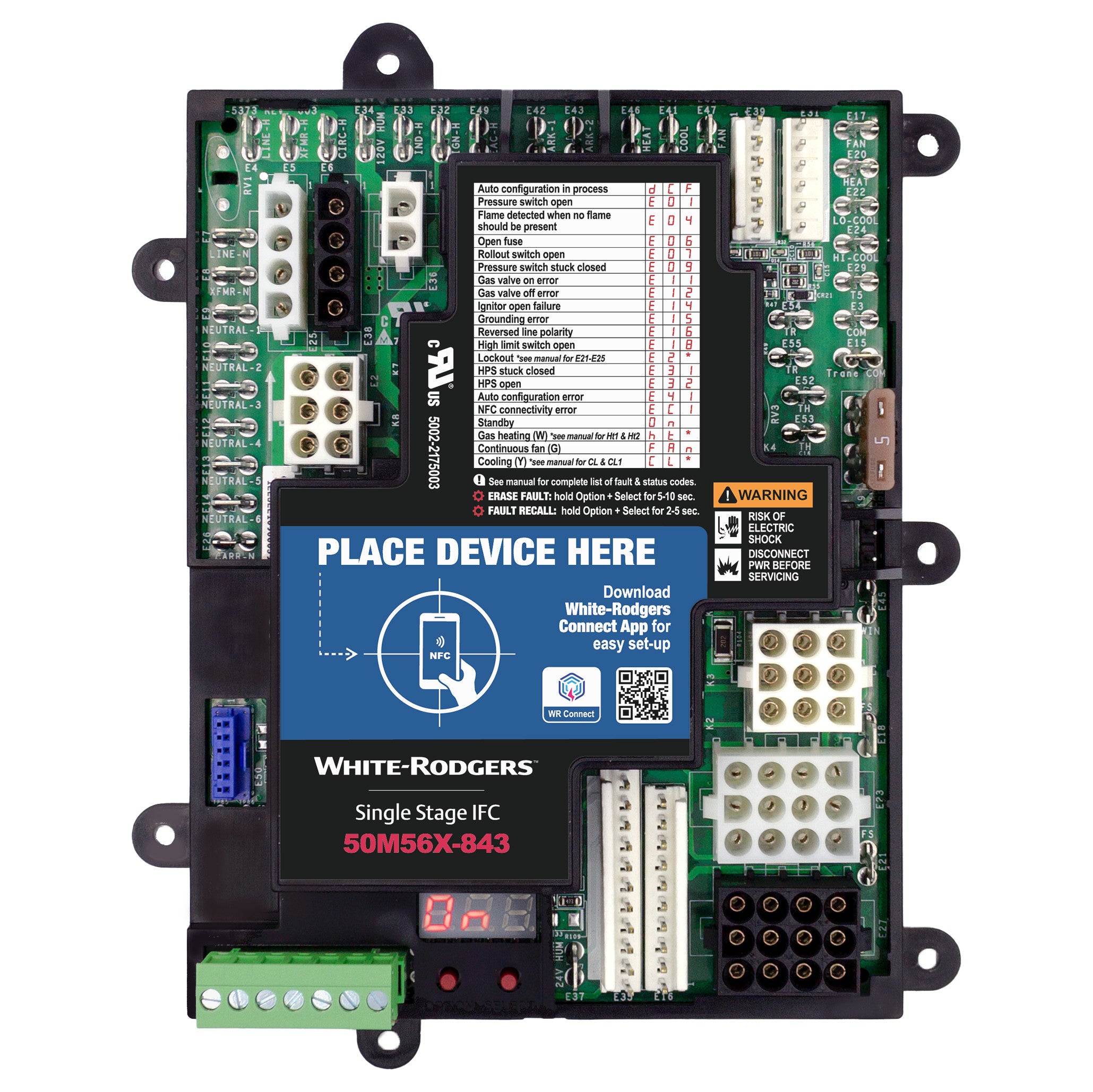

The WHITE-RODGERS 50M56X-843 universal HSI furnace control kit is designed for PSC and ECM motors. It is a universal single stage HSI integrated furnace control. The kit includes a universal 120V nitride ignitor and utilizes the White-Rodgers Connect app for simple configuration and diagnostics.
- Configurable for either PSC or ECMx blower motors
- Includes a universal 120V nitride ignitor
- Utilizes the White-Rodgers Connect app for simple configuration and diagnostics
Product Highlights
This universal replacement control kit is for single stage furnace applications with PSC or ECMx blower motors. OEM wiring can be connected directly to the control for faster and easier installation.
Product Information
Standard Information
-
Brand: WHITE-RODGERS
-
Manufacturer Part Number: 50M56X-843
-
Country of Origin: MEX
Technical Specifications
-
VOLTS: 120
-
PRODUCT TYPE: UNIVERSAL FURNACE CONTROL KIT
-
Manufacturer Name: Emerson Electric
-
MPN: 50M56X-843
-
Brand: WHITE-RODGERS
-
Input Voltage: 25 Vac, 60 Hz
-
Operating Temperature: -40 to 175 deg. F (-40 to 79 deg. C)
-
UPC: 786710566837
-
Control Voltage: 25 VAC
-
Phase: Single
-
Stage: Single
-
Voltage: 120 VAC
-
Height: 4.1
-
Length: 10.25
-
Width: 7.9
-
Type: Ignition Control
-
Country of Origin: MEX
-
Ignition Type: Hot Surface (HSI)
-
Temperature Rating: 40°F to 175°F (4.44°C to 79.44°C)
-
Connection Type: Hardware
-
Electrical Connection Type: Thermostat Inputs R,C,W,Y/Y1,Y2,G,DHUM
-
Includes: Includes control, ignitor, mounting accessories, instructions
-
Mounting: Flush Mount
-
Item Number: 50M56X-843
-
GTIN: 00786710566837
-
Number Of Stages: 1
-
Temperature Range: -40 to 175|deg F
-
Warranty: 1 year limited
-
Item: Ignition Controls and Modules
-
Country of Origin (subject to change): Mexico
-
Ambient Operating Humidity: 5 to 95% RH
-
Electrical Rating: 25 Vac, 60Hz
-
Electrical Rating, Current [A] (Circulator Relay) Full Load Amps (FLA) @ 120 Vac: (Circulator Relay) 14.5A
-
(Circulator Relay) Locked Rotor Amperage (LRA) 120 Vac: 25.0 A
-
[Circulator Relay] 120 Vac Locked Rotor Amperage (LRA): 25.0A
-
Family: Integrated Furnace Controls - Universal Replacement
-
Ignitor Voltage: 120 Vac
-
Inducer Motor/Blower Motor: PSC/PSC or ECMx
-
Model Number: 50M56X-843
-
Operating Temperature Range [°F]: -40 to 175
-
Replacement Type: Universal Replacement
-
Thermostat Inputs: R,C,W,Y/Y1,Y2,G,DHUM
-
UPC-12: 786710566837
-
Warranty Period: 1 Year
-
Whats In The Box: Ignitor
Includes control
instructions
mounting accessories
-
Part Number: 50M56X-843
-
Circulator Relay: 14.5 FLA-25.0 LRA @ 120 Vac
-
Operating Temperature Range: -40° to 176°F (-40° to 80°C)
-
Operating Humidity: 5% to 93% relative humidity (non-condensing)
-
Accessories: Includes Ignitor
-
Agency Approvals: UL- US, Canada
-
Max Input Current: 800 mA max
-
Line Frequency: 60 Hz
-
Gas Valve Relay Rating: 1.5 A @ 30V
-
Ignitor Relay Rating: 1.2 A @ 120V
-
Inducer Relay Rating: 2.8 A FLA @ 120V
-
Circulator Relay Rating: 10 A FLA @ 120V (PSC)
-
Gases Approved: Natural, manufactured, mixed, LP (and LP-air mixtures)
