Product Description

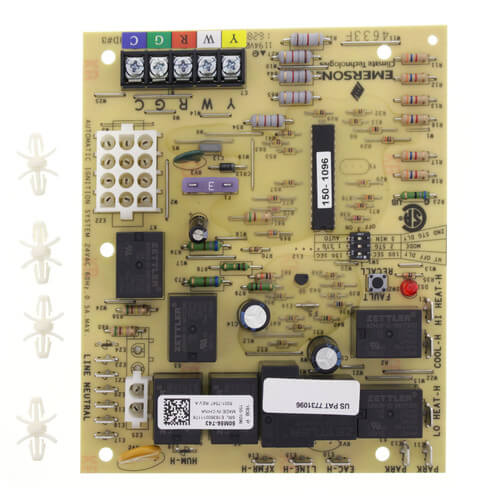

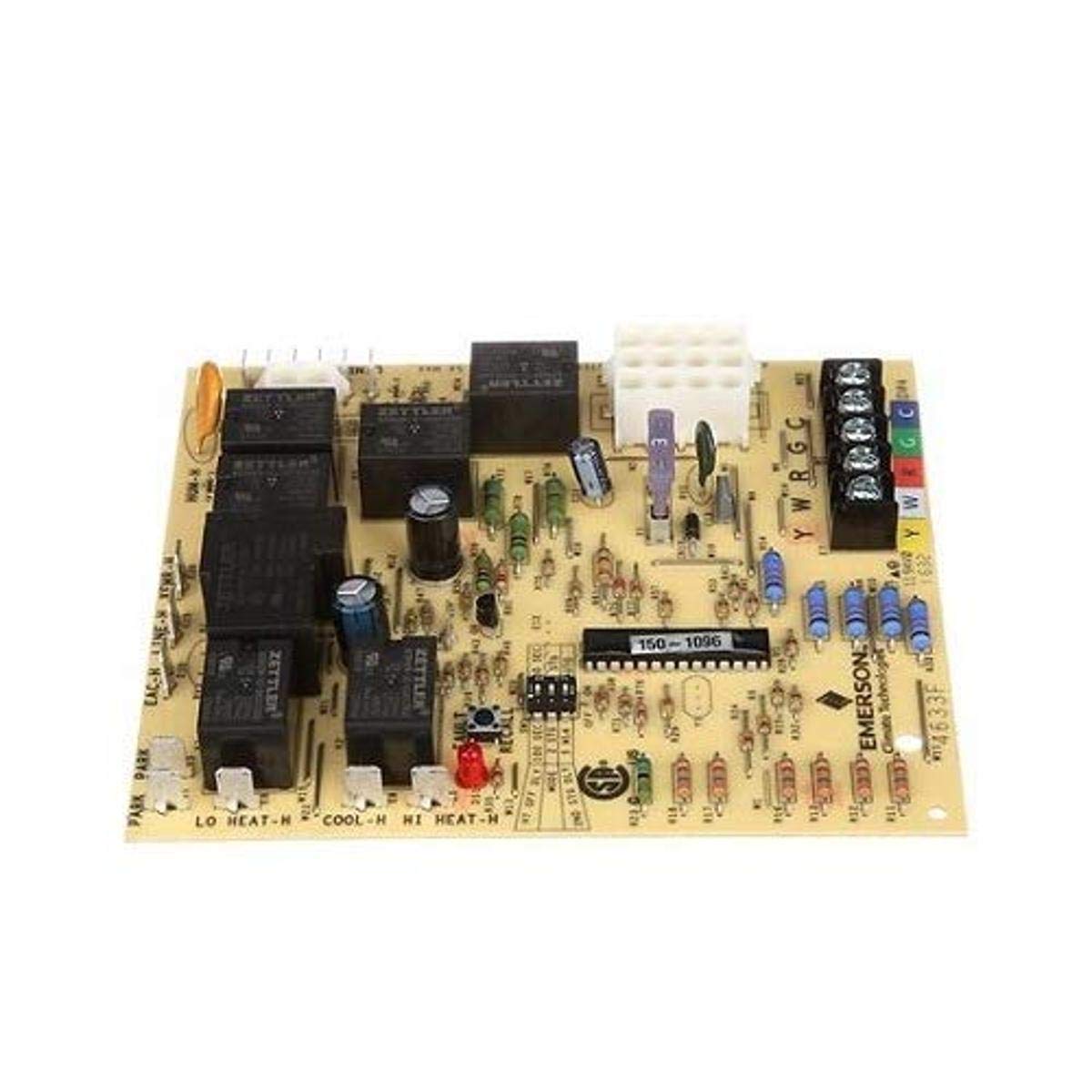

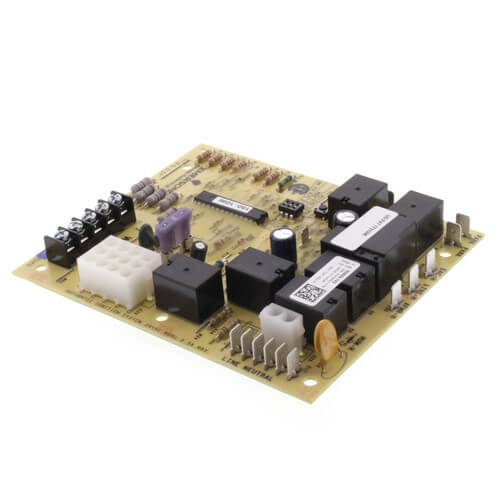

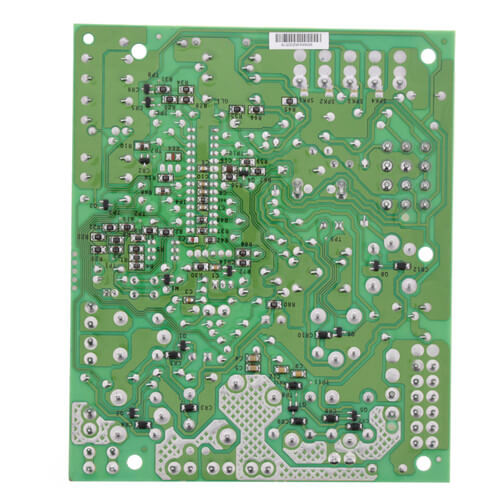

White-Rodgers 50M56-743 is a replacement integrated furnace control board for Goodman systems that uses a 25 Vac control supply. The module monitors thermostat inputs and governs inducer, burner, and blower functions for single- or two-stage hot surface ignition furnaces. LED diagnostics and a replaceable low-voltage fuse are included.
- Direct replacement control board for compatible Goodman integrated furnace modules; cross references include White-Rodgers 50M56-289 and Goodman 0130F00006 series.
- Operates on 25 Vac control power and provides a 120 Vac ignitor output for hot surface ignitors; supports single- and two-stage systems.
- Microprocessor control with LED diagnostics and stored fault recall, adjustable fan delay, thermostat inputs R/C/W/Y/G, and a replaceable automotive-style low-voltage fuse.
Product Highlights
Integrated HSI furnace control board; 25 Vac input; supports multi-speed PSC blowers and single/two-stage applications; compact dimensions and single-unit supply.
Product Information
Standard Information
-
Brand: WHITE-RODGERS
-
Manufacturer Part Number: 50M56-743
-
Country of Origin: United States
Technical Specifications
-
Brand: White-Rodgers
-
Manufacturer: White Rodgers
-
MPN: 50M56-743
-
Model: 50M56-743
-
Category: Circuit Boards (Furnace Replacement Circuit Boards)
-
Input Voltage: 25 Vac
-
Ignitor Voltage: 120 Vac
-
Stages: Single or Two-Stage
-
Ignition Type: Hot surface ignition (HSI)
-
Thermostat Inputs: R, C, W, Y, G
-
Mounting Type: Standoff
-
Dimensions: 2.25 x 6.25 x 7.75 inches
-
Unit Count: 1
-
Operating Temperature: -40 to 176 F (-40 to 80 C)
-
Operating Humidity: 5-93% RH (non-condensing)
-
Timing: Prepurge 30s; Heat on 30s; Heat off 100/150s; Cool on 6s; Cool off 45s; Post purge 25s
-
Max Input Current: 0.45 A @ 30 VAC (max)
-
Gas Valve Relay Rating: 0.6 pf, 1.5 A @ 25 VAC, 50/60 Hz
-
Ignitor Relay Rating: 6.0 A @ 120 VAC (50/60 Hz)
-
Inducer Relay Rating: 2.2 FLA / 3.5 LRA @ 120 VAC
-
Blower Relay Rating: 14.5 FLA / 25.0 LRA @ 120 VAC
-
LED Diagnostics: Yes (stored fault recall)
-
Low-voltage Fuse: Replaceable automotive-style fuse
-
Cross Reference / Replaces: 50M56-289; Goodman 0130F00006, 0130F00006S, PCB00109, PCBBF109, PCBBF109S, PCBBF122, PCBBF122S, PCBBF132, PCBBF132S
-
OEM Replacement: Yes
-
Made In: United States
-
UPC: 786710548666
-
ASIN: B00M21O6QO
-
Fuel Type: Gas
