WHITE-RODGERS 50I56D-905 Intelligent Valve Retrofit Kit Low 25VAC High 120VAC

Product Description

The WHITE-RODGERS 50I56D-905 Intelligent Valve Retrofit Kit is designed for upgrading ICP, Lennox single-stage PSC furnaces from SV9500 series intermittent pilot gas valves to advanced 120V HSI ignition systems. This complete kit enhances furnace efficiency and reliability.

• Modernize older furnace systems with cutting-edge valve technology.
• Advanced diagnostics for standard furnace troubleshooting.

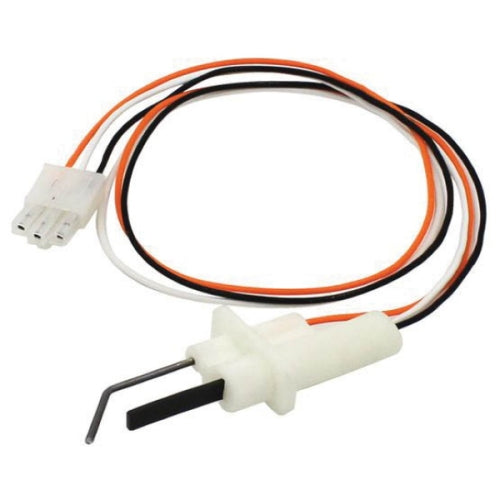

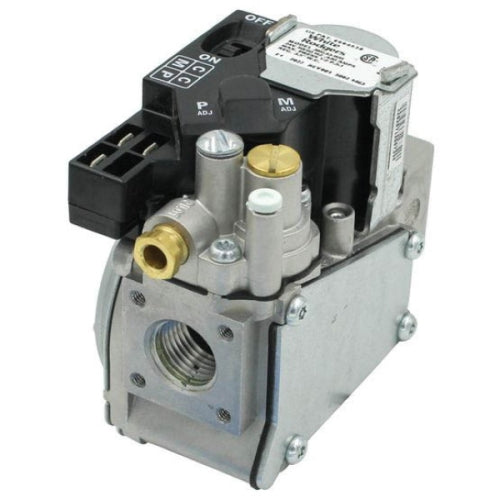

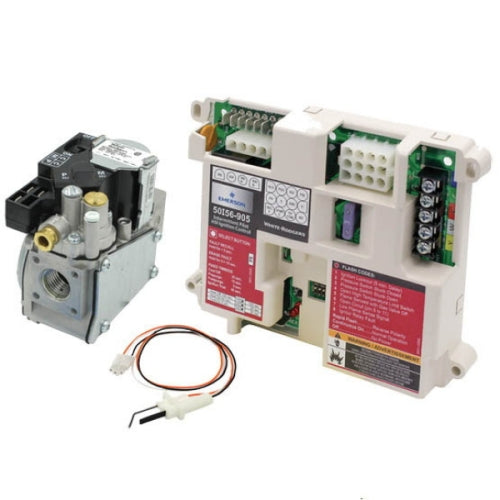

• Includes essential components like a gas valve, control board, ignitor, and flame sensor.

Product Highlights

This retrofit kit allows HVAC professionals to upgrade their systems without replacing the entire unit, providing a cost-effective solution. It includes an IP gas valve and a nitride combinator ignitor. The fault recall feature and selectable OEM blower delays ensure optimal furnace performance.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Category: HVAC Replacement Parts and Accessories

Technical Specifications

• Item Number: 50I56D-905
• Voltage Rating: 25VAC (Low), 120VAC (High)
• Humidity Tolerance: 5% to 95% RH Non-condensing
• For Use With: SV9500H, SV9500M Honeywell Furnaces
• Warranty: 5 years
