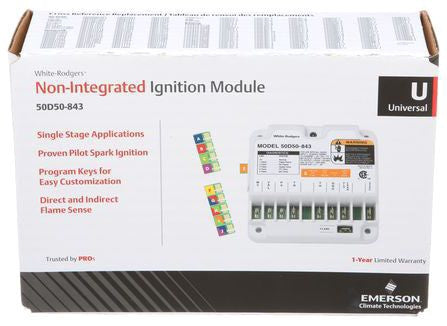

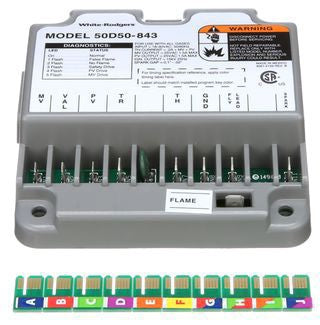

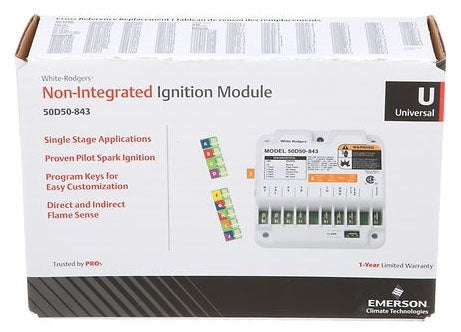

White Rodgers 50D50-843 Universal Intermittent Pilot Spark Ignition Module

Product Description

The White Rodgers 50D50-843 is a universal intermittent pilot spark ignition module designed for gas-fired non-integrated forced air furnaces. This ignition module operates on a nominal voltage of twenty-five VAC and is capable of handling input voltages from eighteen to thirty VAC. The module features a size of four point thirteen inches by four point thirteen inches by one point five inches.

• Universal compatibility with gas-fired appliances
• Microprocessor-based control for enhanced reliability
• Includes program keys for easy setup

Product Highlights

This ignition module is suitable for both natural and liquid propane gas. It offers features like flame sense and proven intermittent pilot spark for efficient operation.

Product Information

Standard Information

• Manufacturer: White-Rodgers
• Type: 1-Stage, Microprocessor Based

Technical Specifications

• Voltage Rating: 25 VAC (Nominal), 18 to 30 VAC (Input)
• Current Rating: 0.2 Amp at 25 VAC
• Temperature Rating: -40 to 176 Degrees Fahrenheit
• Valve Rating: 1.5 Amp at 25 Volt AC
• Prepurge Time: 0 Seconds (various colors), 30 Seconds (various colors)
• Flame Sense Type: 1 or 2-Rod, Non-Integrated
• Flame Out Recognition Time: 8 Seconds
• Application: Gas Fired Non-Integrated Forced Air Furnace, Boiler, Cooking Appliance
