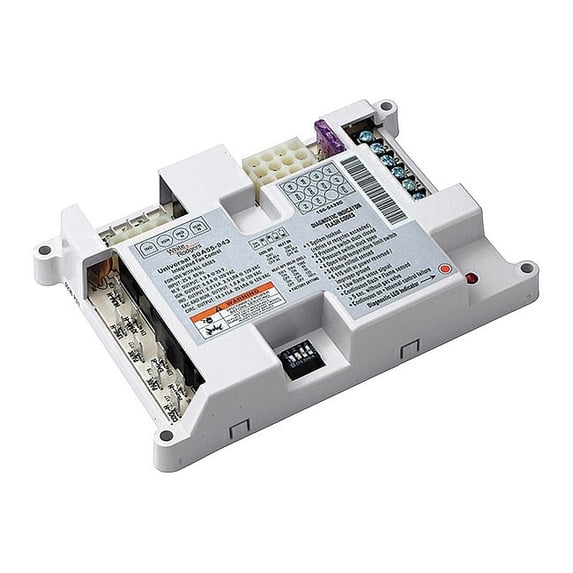

White Rodgers 50A55 843S1 Ignition Control Module 25 watts REPLACEMENT 50a55-843

Product Description

The WHITE RODGERS 50A55-843S1 is a universal hot-surface ignition module designed as a replacement part for furnace ignition control. This module employs a microprocessor to monitor, analyze, and control the gas burner, inducer, and fan. It replaces most 50A5X-XXX integrated ignition carbide modules manufactured by White-Rodgers for OEM applications.

• Universal hot-surface ignition module for air control.
• Reduces inventory by providing maximum control replacement coverage.
• Diagnostic LED indicators streamline installation and system troubleshooting.

Product Highlights

This universal silicon carbide integrated ignition module includes an extensive cross-reference, additional jumper wires, wiring harness and a jumper for Trane applications. It also has terminals for powering a humidifier and electronic air cleaner.

Product Information

Standard Information

• Brand: WHITE RODGERS
• Manufacturer Part Number: 50A55 843S1

Technical Specifications

• Brand: White-Rodgers
• Part Number: 50A55-843
• Wattage: 25 watts
• Voltage Rating: 24/120 VAC
• Amperage Rating: 0.45 A
• Frequency Rating: 50/60 Hz
• Temperature Rating: -40 to 175 deg F
• Pre Purge Time: 30 s
• Suitable For Use With: PSC Blower Motors
• Compatibility: Trane
• Works with: Furnace,Humidifier,Air Cleaner
