White-Rodgers 48X21-811 Rheem Direct Replacement Single Stage Air Handler Control for ECMx Motors

Product Description

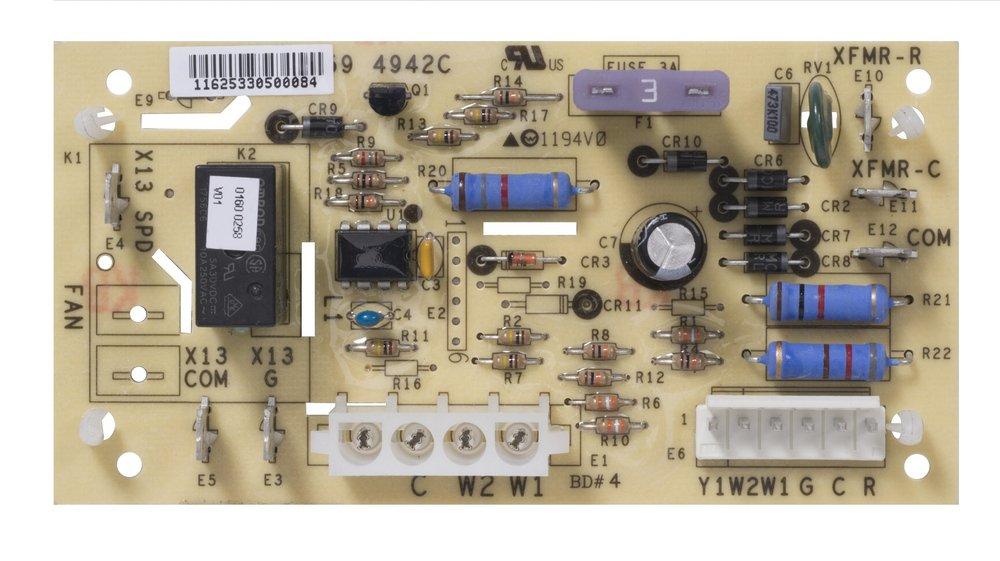

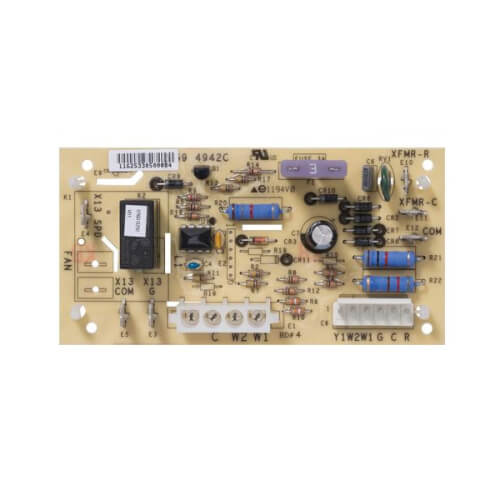

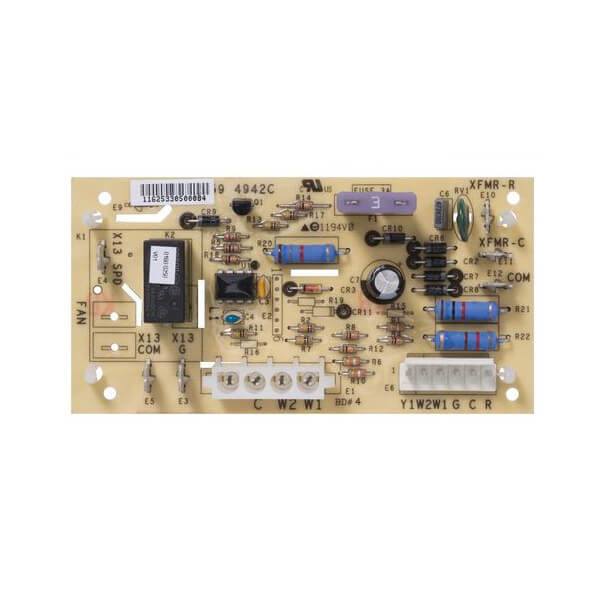

The White-Rodgers 48X21-811 is a Rheem Direct Replacement Single Stage Air Handler Control designed for ECMx blower motors. This control is suitable for single-stage system airflow and is an essential component for HVAC systems. It offers simple installation and compatibility with various models.

• Fast drop-in OEM mounting and wiring
• Includes a wire harness and diagram for installation
• Replaces several previous part numbers including 47-100436-02

Product Highlights

This Rheem air handler control provides reliable operation and efficient airflow, suitable for modern HVAC systems.

Product Information

Standard Information

• Brand: White-Rodgers
• Part Number: 48X21-811

Technical Specifications

• Stages: Single
• Input Voltage: 24 Vac
• Line Voltage: 115/240 Vac
• Blower Motor Type: ECMx
• Ambient Operating Temperature: -40 to 175 degrees F
• Humidity Range: 5% to 95% relative humidity (non-condensing)
