White Rodgers 47D43-811 Rheem Direct Replacement Demand Defrost Control Replaces Rheem 47-102685-85

Product Description

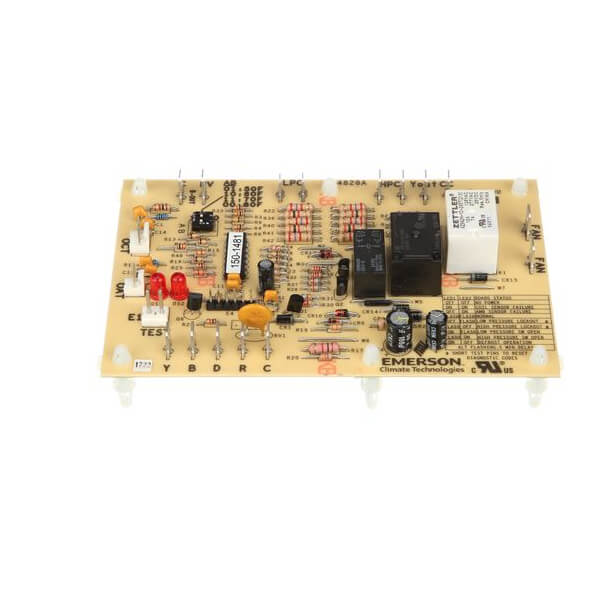

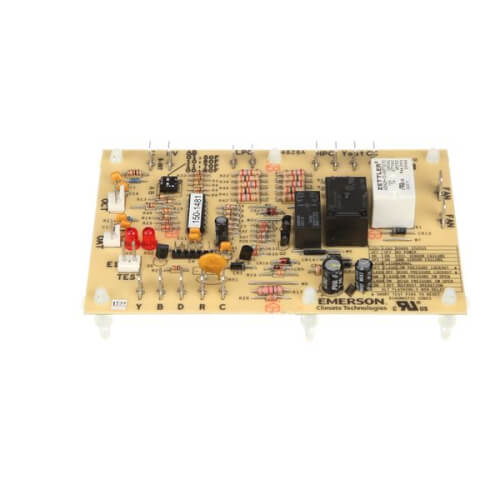

The White Rodgers 47D43-811 is a Rheem Direct Replacement Demand Defrost Control. This device is designed to detect ice build-up on outdoor coils effectively. It features nominal timing settings, including a defrost lockout time of thirty-four minutes and a maximum defrost time of fifteen minutes. Additionally, it has a maximum frosting time of six hours and a short cycle lockout time of five minutes. It is compatible with both PSC and ECM outdoor fan relay types and comes with plastic standoffs for mounting.

• Direct OEM replacement
• Heat pump demand defrost algorithm
• Self-calibrating principles

Product Highlights

This control replaces over fifteen different Rheem applications and operates efficiently in various environments.

Product Information

Standard Information

• Universal or OEM Direct Replacement: Rheem Direct Replacement
• Stages: Single

Technical Specifications

• Description: Demand Defrost Control
• Voltage: Input twenty-four Vac, fifty to sixty Hz
• Line Voltage: two hundred eight to two hundred forty Vac
• Inducer Motor/Blower Motor: PSC or ECM
• Mounting Options: Plastic Standoff
• Ambient Operating Temperature: negative forty to one hundred fifty degrees Fahrenheit
• Operating Humidity: five to ninety-five percent relative humidity (non-condensing)
• Overall Dimensions: five point five one inches high × three point five zero inches wide × one point one three inches deep
