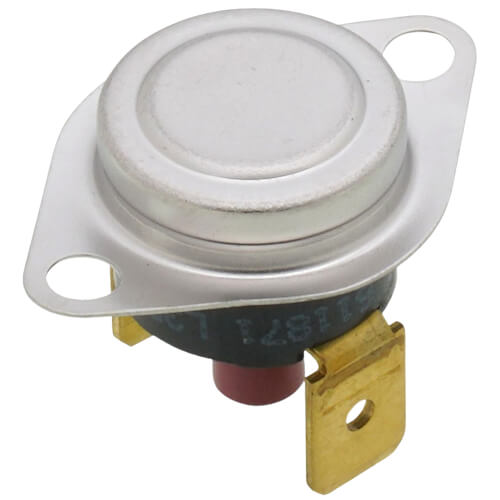

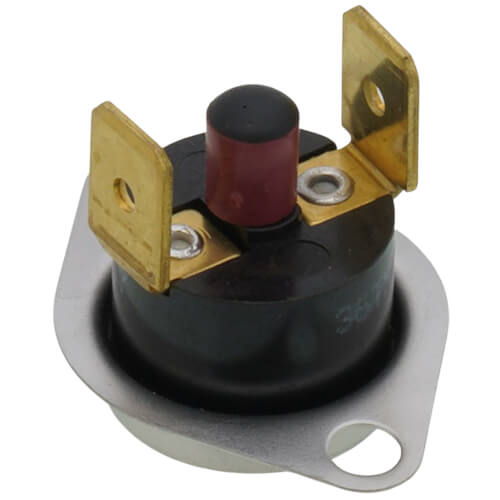

White Rodgers 3L12-350 1/2 Inch SPST Manual Reset Flame Rollout Switch 350 Degree Cut-Out

Product Description

The White Rodgers 3L12-350 Flame Rollout Switch is a 1/2 inch SPST manual reset switch designed to ensure safety in gas-fired furnaces, unit heaters, and roof-top units. This switch protects against flame rollout conditions by cutting off at 350 degrees Fahrenheit.

• Ensures safety in gas-fired heating systems
• Manual reset operation
• Quick-connect terminals

Product Highlights

This manual reset flame rollout switch operates at 350 degrees Fahrenheit cut-out, providing a critical safety component for gas-fired furnace systems to prevent dangerous flame rollout.

Product Information

Standard Information

• Brand: White Rodgers
• MPN: 3L12-350
• Product Type: Fixed Temperature, Manual Reset Limit Control

Technical Specifications

• Switch Action: SPST
• Cut-Out Temperature: 350 degrees Fahrenheit
• Switch Operation: Manual Reset
• Terminal Type: 1/4 inch quick-connect terminals
• Orientation: 90-degree to mounting hole
• Mounting Brackets: Loose ring, stainless steel
• Disc Cup: Stainless steel
• Certifications: CSA File No. LR77886/LR109556, UL E19279, VDE Lic. 118631
